11ZJ | pdb_000011zj

Structure of AGO2 RISC with an 18-nt target

• PDB DOI: https://doi.org/10.2210/pdb11ZJ/pdb
• EM Map EMD-76216: EMDB EMDataResource

• Classification: RNA BINDING PROTEIN/RNA
• Organism(s): Homo sapiens
• Expression System: Trichoplusia ni
• Mutation(s): No


• Deposited: 2026-03-19 Released: 2026-08-19
• Deposition Author(s): Zhang, H., Nakanishi, K.
• Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.29 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Structure of AGO2 RISC with an 18-nt target

Zhang, H., Nakanishi, K.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Monomer - A1

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 110.9 kDa
• Atom Count: 4,249
• Modeled Residue Count: 480
• Deposited Residue Count: 905
• Unique protein chains: 1
• Unique nucleic acid chains: 2

Macromolecules

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

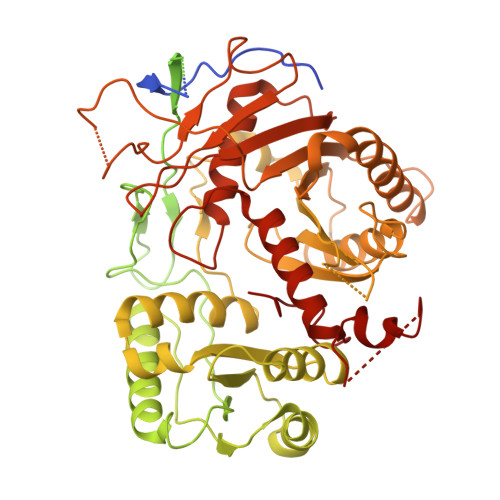

Protein argonaute-2	C [auth A]	864	Homo sapiens	Mutation(s): 0  Gene Names: AGO2, EIF2C2 EC: 3.1.26
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UKV8 (Homo sapiens) Explore Q9UKV8  Go to UniProtKB:  Q9UKV8
GTEx:  ENSG00000123908

Entity ID: 1
Molecule	Chains	Length	Organism	Image
RNA (5'-R(P*UP*AP*AP*AP*GP*UP*GP*CP*UP*UP*AP*UP*AP*GP*UP*GP*CP*A)-3')	A [auth B]	23	Homo sapiens

Entity ID: 2
Molecule	Chains	Length	Organism	Image

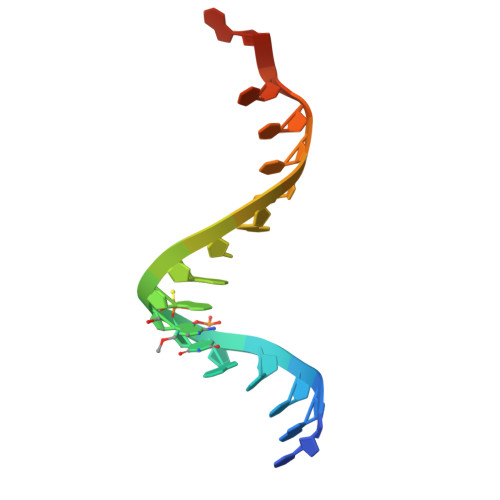

RNA (5'-R(P*CP*AP*CP*UP*AP*(OMU)P*(SRA)P*AP*GP*CP*AP*CP*U)-3')	B [auth C]	18	Homo sapiens

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.29 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21-5207-000
MODEL REFINEMENT	Coot	0.9.8.91
RECONSTRUCTION	PHENIX	1.21-5207-000

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-08-19
Deposition Author(s): Zhang, H., Nakanishi, K.

---

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R01GM124320
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R01GM138997
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	R35GM161485

Revision History

• Version 1.0: 2026-08-19
  Type: Initial release
