 11BP | pdb_000011bp

The cryo-EM structure of Pakpunavirus P7-1 empty particle neck (portal:H-t-T)

  • Classification: VIRUS
  • Organism(s): Pakpunavirus
  • Mutation(s): No

  • Deposited: 2026-02-16 Released: 2026-04-08
  • Deposition Author(s): Bellis, N.F., Cingolani, G.
  • Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 11BP

This is version 1.1 of the entry. See complete history.

Literature

Insights into Genome Ejection by a Therapeutic phiKMV-like Bacteriophage.

Li, J., Bellis, N.F., Lokareddy, R.K., Hou, C.D., Branston, S., Kovach, Z., Geier, R., Soriaga, A., Sim, L., Kyme, P., Birx, D., Lemire, S., Cingolani, G.

(2026) J Mol Biol 438: 169993-169993

  • DOI: https://doi.org/10.1016/j.jmb.2026.169993
  • Primary Citation Related Structures:
    11BP

  • PubMed Abstract:

    Ar-KM is a phiKMV-like therapeutic bacteriophage used in clinical candidate phage therapy cocktails to treat lung infections caused by P. aeruginosa. Here, we present an integrative structural atlas of Ar-KM proteins using cryo-EM, proteomics, and bioinformatics. From a single purified Ar-KM preparation, we identified three distinct populations: mature DNA-filled virions, open-nozzle particles with ejection proteins extending from the tail, and closed-nozzle empty particles. Near-atomic-resolution reconstructions of all three states enabled us to build atomic models for eleven structural proteins. The mature virion revealed the pre-ejection conformation of three ejection proteins, gp41, gp42, and gp43, homologous to coliphage T7's gp14, gp15, and gp16, respectively. Unlike T7, peptidoglycan hydrolase activity associated with the ejectosome resides in the gp15-like periplasmic tunnel protein gp42, whereas in T7 the lysozyme-like domain is located at the N-terminus of gp16, underscoring the structural plasticity and evolutionary mosaicity of ejection proteins. We further identified a short α-helical factor, gp34, present in eight copies at the mismatched interface between the portal barrel and gp41. Gp34 forms a cage within the nozzle, acting as a molecular wedge that stabilizes the open conformation and permits gp41 to assemble into a hexameric channel during ejection. Evolutionarily, gp34 appears to be an ortholog of the essential gene gp7.3 in phage T7 and is conserved across sequenced phiKMV-like phages. We propose that this protein functions as an ejection protein assembly factor, stabilizing the open nozzle during infection and allowing the coordinated exit of ejection proteins and their assembly into a DNA-ejectosome.


  • Organizational Affiliation:
    • Department of Biochemistry and Molecular Genetics, University of Alabama at Birmingham, 1825 University Blvd, Birmingham, AL 35294, USA.

Macromolecule Content

  • Total Structure Weight: 870.06 kDa
  • Atom Count: 57,276
  • Modeled Residue Count: 7,104
  • Deposited Residue Count: 7,644
  • Unique protein chains: 2

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

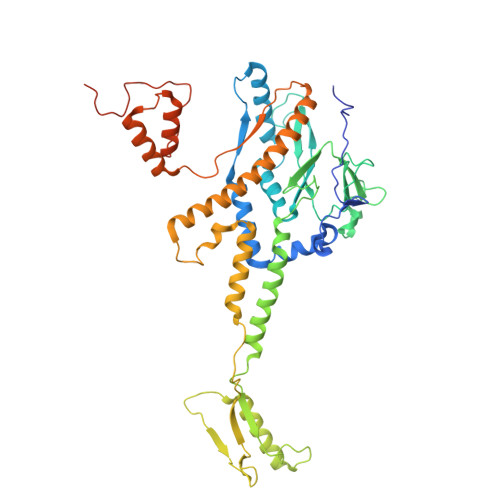

Portal protein
A, B, C, D, E
A, B, C, D, E, F, G, H, I, J, K, L
479PakpunavirusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

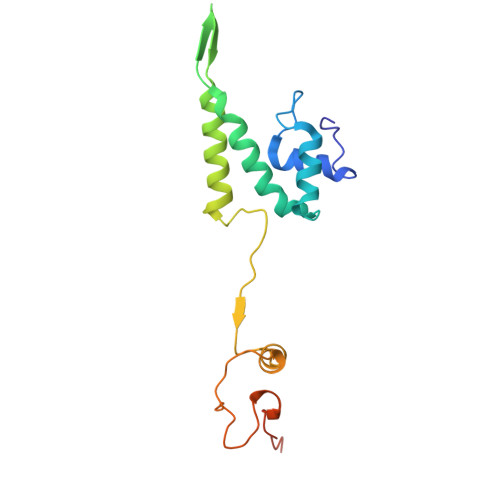

Head to Tail protein gp72
M, N, O, P, Q
M, N, O, P, Q, R, S, T, U, V, W, X
158PakpunavirusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 4.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.1_5286
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesGM140733

Revision History  (Full details and data files)

  • Version 1.0: 2026-04-08
    Type: Initial release
  • Version 1.1: 2026-10-28
    Changes: Data collection, Database references
