9Z2I | pdb_00009z2i

Crystal Structure of the Poly(Hexamethylene Adipamide) (Nylon66) Hydrolase Nyl50 in its Apo form at Room Temperature

• PDB DOI: https://doi.org/10.2210/pdb9Z2I/pdb

• Classification: HYDROLASE
• Organism(s): Alphaproteobacteria bacterium
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): No


• Deposited: 2025-11-05 Released: 2025-11-19
• Deposition Author(s): Capra, N., Meilleur, F.
• Funding Organization(s): Department of Energy (DOE, United States)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.20 Å
• R-Value Free:
  0.196 (Depositor), 0.190 (DCC)
• R-Value Work:
  0.148 (Depositor), 0.150 (DCC)
• R-Value Observed:
  0.150 (Depositor)

Starting Model: experimental

Literature

Crystal Structure of the Poly(Hexamethylene Adipamide) (Nylon66) Hydrolase Nyl50 at Room Temperature in the Apo form

Capra, N., Meilleur, F.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by PISA (software)

Biological Assembly Evidence: gel filtration

Macromolecule Content

• Total Structure Weight: 62.87 kDa
• Atom Count: 4,544
• Modeled Residue Count: 605
• Deposited Residue Count: 610
• Unique protein chains: 1

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

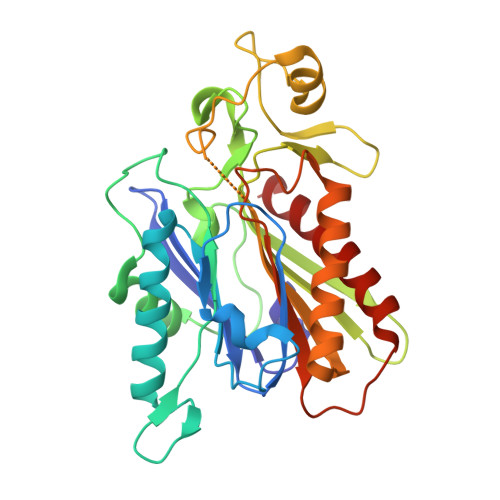

Poly(hexamethylene adipamide) hydrolase	A, B	305	Alphaproteobacteria bacterium	Mutation(s): 0  Gene Names: EPN97_01225 EC: 3.5.1.117

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
NA	C [auth A], D [auth B]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.20 Å
• R-Value Free:  0.196 (Depositor), 0.190 (DCC)
• R-Value Work:  0.148 (Depositor), 0.150 (DCC)
• R-Value Observed: 0.150 (Depositor)

Space Group: P 2 2₁ 2₁

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 53.755	α = 90
b = 96.398	β = 90
c = 104.618	γ = 90

Software Package:

Software Name	Purpose
REFMAC	refinement
Aimless	data scaling
PHASER	phasing
PDB_EXTRACT	data extraction
CrysalisPro	data reduction

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2025-11-19
Deposition Author(s): Capra, N., Meilleur, F.

---

Funding Organization	Location	Grant Number
Department of Energy (DOE, United States)	United States	--

Revision History

• Version 1.0: 2025-11-19
  Type: Initial release

• Version 1.1: 2025-11-26
  Changes: Author supporting evidence
