9YWS | pdb_00009yws

Human Sec61 complex bound to coibamide A


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9YWS

This is version 1.0 of the entry. See complete history

Literature

Structure-based design of Sec61 translocon targeting prodrugs minimize off-target toxicity.

Hao, Q.Wang, L.Pan, H.Xiao, X.Dong, W.Pan, W.Sun, J.Su, W.Fang, L.Park, E.Yao, G.

(2026) Cell Chem Biol 33: 823-836.e21

  • DOI: https://doi.org/10.1016/j.chembiol.2026.05.006
  • Primary Citation Related Structures:
    9YWS

  • PubMed Abstract:

    Coibamide A (CbA) is a cyclic depsipeptide that inhibits the function of the Sec61 translocon and exhibits significant antitumor activity. However, its broad Sec61 inhibition results in non-selective cytotoxicity, limiting therapeutic applications. To elucidate the molecular mechanism of CbA-mediated Sec61 blockade and enable rational prodrug design, we determined the cryo-EM structure of human Sec61 bound to CbA at 3.1 Å resolution. The structure reveals that CbA adopts a distinctive lasso-like conformation and occupies the lateral gate of Sec61, a binding site shared with other Sec61 inhibitors, while forming a particularly more expansive set of interactions with the lateral gate. Guided by these structural insights, we conducted structure-activity relationship studies and developed prodrug strategies that modulate CbA's antitumor activity through the controlled perturbation of intramolecular and protein hydrogen bonding interactions. Together, these results establish a structure-guided strategy for prodrug design of CbA and demonstrate the general applicability of backbone-caging to enhance the tolerability of Sec61 inhibitors.


  • Organizational Affiliation
    • School of Life Sciences, Fudan University, Shanghai 200438, China; Greater Bay Area Institute of Precision Medicine (Guangzhou), Guangzhou 510000, China.

Macromolecule Content

  • Total Structure Weight: 71.63 kDa
  • Atom Count: 4,398
  • Modeled Residue Count: 562
  • Deposited Residue Count: 651
  • Unique protein chains: 4

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

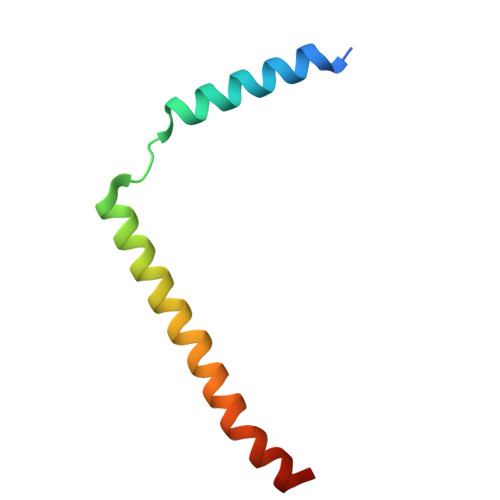

Protein transport protein Sec61 subunit gammaA [auth B]68Homo sapiensMutation(s): 0
Gene Names: SEC61G
UniProt & NIH Common Fund Data Resources
Find proteins for P60059 (Homo sapiens)
Explore P60059
Go to UniProtKB:  P60059
PHAROS:  P60059
GTEx:  ENSG00000132432
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60059
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

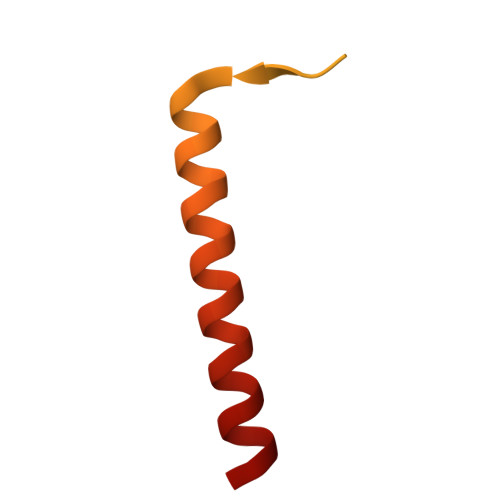

Protein transport protein Sec61 subunit betaB [auth C]96Homo sapiensMutation(s): 0
Gene Names: SEC61B
UniProt & NIH Common Fund Data Resources
Find proteins for P60468 (Homo sapiens)
Explore P60468
Go to UniProtKB:  P60468
PHAROS:  P60468
GTEx:  ENSG00000106803
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60468
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

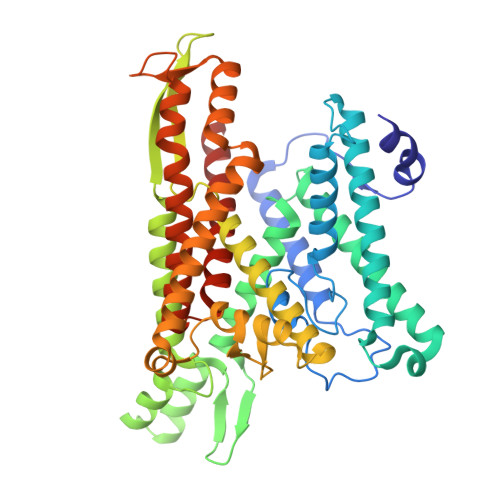

Protein transport protein Sec61 subunit alpha isoform 1C [auth A]476Homo sapiensMutation(s): 24
Gene Names: SEC61A1SEC61A
UniProt & NIH Common Fund Data Resources
Find proteins for P61619 (Homo sapiens)
Explore P61619
Go to UniProtKB:  P61619
PHAROS:  P61619
GTEx:  ENSG00000058262
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP61619
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:  Sequence   |   3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

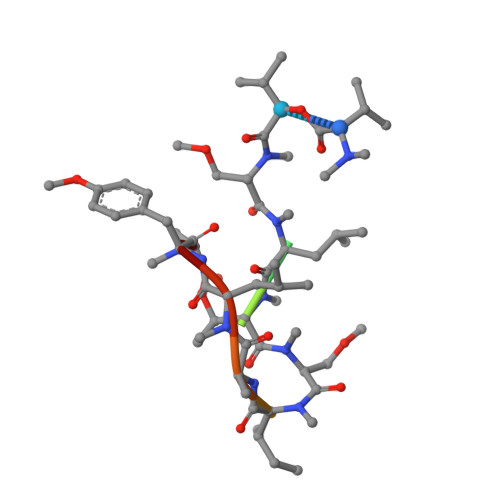

Coibamide A11Leptolyngbya sp.Mutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
CLR

Query on CLR



Download:Ideal Coordinates CCD File
E [auth A]CHOLESTEROL
C27 H46 O
HVYWMOMLDIMFJA-DPAQBDIFSA-N
Modified Residues  5 Unique
IDChains TypeFormula2D DiagramParent
0A1
Query on 0A1
D
L-PEPTIDE LINKINGC10 H13 N O3TYR
33X
Query on 33X
D
D-PEPTIDE LINKINGC4 H9 N O2

--

IML
Query on IML
D
L-PEPTIDE LINKINGC7 H15 N O2ILE
MLE
Query on MLE
D
L-PEPTIDE LINKINGC7 H15 N O2LEU
NZC
Query on NZC
D
L-PEPTIDE LINKINGC5 H11 N O3THR
VAD
Query on VAD
D
L-PEPTIDE LINKINGC5 H10 O3VAL

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.10 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC4.7

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other private--

Revision History  (Full details and data files)

  • Version 1.0: 2026-07-22
    Type: Initial release
