9YUZ | pdb_00009yuz

Structure of the human 20S proteasome in complex with a beta5-selective covalent syringolin analogue inhibitor.


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

An Optimized Route to the Syringolin Natural Products Enables Combinatorial Synthesis of Selective, Bioactive Inhibitors of the Plasmodium falciparum 20S Proteasome.

Gu, X.Fajtova, P.Yan, N.L.Saxena, A.Fei, F.Zhu, J.Tse, E.Melo, A.Yoo, E.Buchwald, N.H.Southworth, D.R.Bogyo, M.Derisi, J.L.Gestwicki, J.E.O'Donoghue, A.J.Sello, J.K.

(2026) J Med Chem

  • DOI: https://doi.org/10.1021/acs.jmedchem.5c03223
  • Primary Citation Related Structures:
    9YUY, 9YUZ

  • PubMed Abstract:

    The syringolin natural products are covalent inhibitors of the 20S proteasome that inspire therapeutic development. Here, we report a new route to the syringolins amenable to solution and solid-phase synthesis that overcomes a problematic macrocyclization. Exploiting our synthetic approach and substrate mimicry models for proteasome inhibition by the syringolins, we generated a collection of hypothetically selective inhibitors of the Plasmodium falciparum proteasome, which is an emerging target for antimalarial drugs. We identified compounds from the library having high second-order rate constants for Plasmodium proteasome inhibition and nanomolar antiparasitic activity. They exhibited selectivity for the Plasmodium proteasome over the human proteasome. We solved cryo-EM structures of an inhibitor bound to both 20S proteasomes, revealing key contacts favoring species-selective inhibition. Together, this work provides an improved route to syringolin analogs, sheds new light on substrate mimicry by the syringolins, and provides a structural basis for the pursuit of new antimalarial drugs.


  • Organizational Affiliation
    • Department of Pharmaceutical Chemistry, University of California, San Francisco, California 94158, United States.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

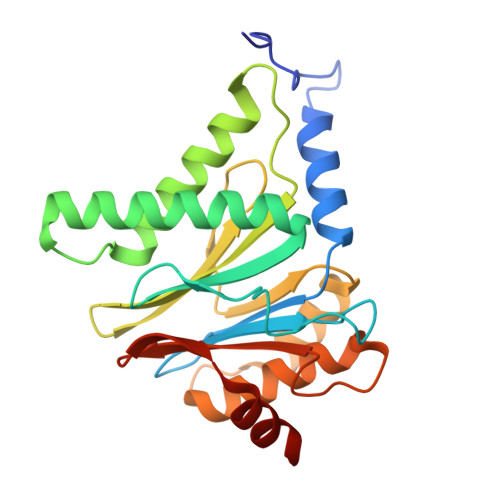

Proteasome subunit alpha type-2
A, O
234Homo sapiensMutation(s): 0
Gene Names: PSMA2HC3PSC3
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P25787 (Homo sapiens)
Explore P25787
Go to UniProtKB:  P25787
PHAROS:  P25787
GTEx:  ENSG00000106588
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25787
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

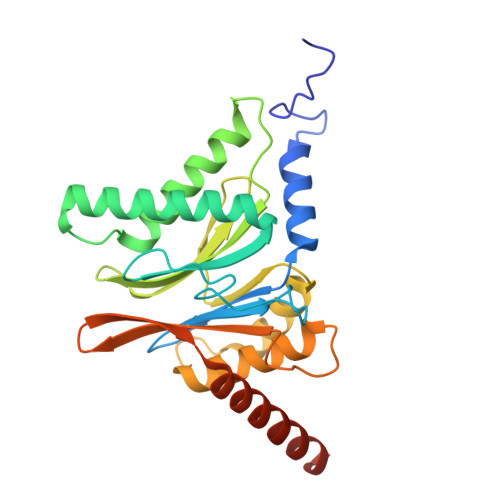

Proteasome subunit alpha type-4
B, P
261Homo sapiensMutation(s): 0
Gene Names: PSMA4HC9PSC9
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P25789 (Homo sapiens)
Explore P25789
Go to UniProtKB:  P25789
PHAROS:  P25789
GTEx:  ENSG00000041357
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25789
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

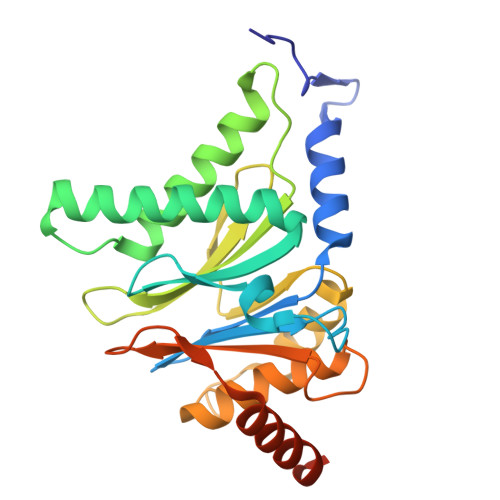

Proteasome subunit alpha type-7
C, Q
248Homo sapiensMutation(s): 0
Gene Names: PSMA7HSPC
UniProt & NIH Common Fund Data Resources
Find proteins for O14818 (Homo sapiens)
Explore O14818
Go to UniProtKB:  O14818
PHAROS:  O14818
GTEx:  ENSG00000101182
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupO14818
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

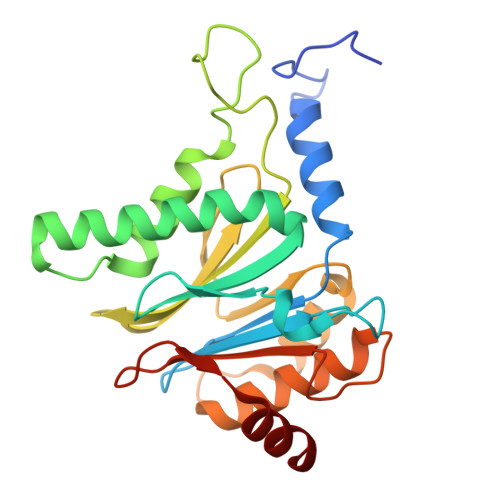

Proteasome subunit alpha type-5
D, R
241Homo sapiensMutation(s): 0
Gene Names: PSMA5
UniProt & NIH Common Fund Data Resources
Find proteins for P28066 (Homo sapiens)
Explore P28066
Go to UniProtKB:  P28066
PHAROS:  P28066
GTEx:  ENSG00000143106
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP28066
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

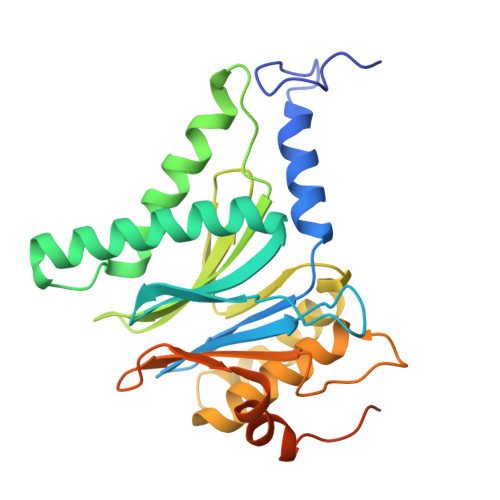

Proteasome subunit alpha type-1
E, S
263Homo sapiensMutation(s): 0
Gene Names: PSMA1HC2NUPROS30PSC2
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P25786 (Homo sapiens)
Explore P25786
Go to UniProtKB:  P25786
PHAROS:  P25786
GTEx:  ENSG00000129084
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25786
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

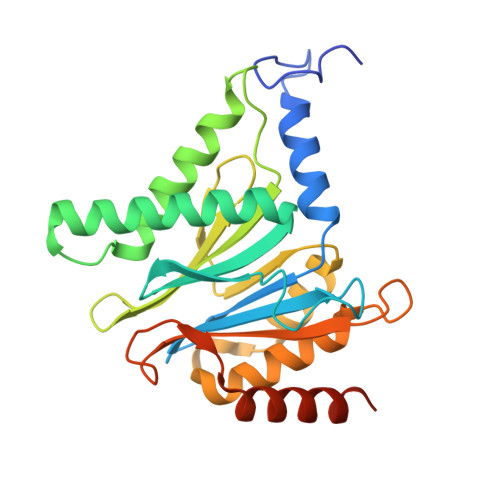

Proteasome subunit alpha type-3
F, T
255Homo sapiensMutation(s): 0
Gene Names: PSMA3HC8PSC8
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P25788 (Homo sapiens)
Explore P25788
Go to UniProtKB:  P25788
PHAROS:  P25788
GTEx:  ENSG00000100567
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP25788
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

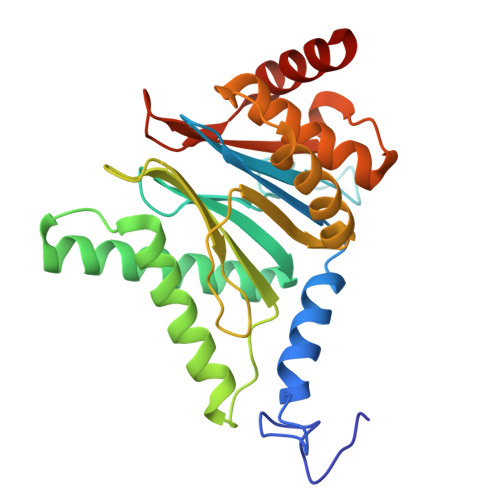

Proteasome subunit alpha type-6
G, U
246Homo sapiensMutation(s): 0
Gene Names: PSMA6PROS27
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P60900 (Homo sapiens)
Explore P60900
Go to UniProtKB:  P60900
PHAROS:  P60900
GTEx:  ENSG00000100902
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP60900
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage

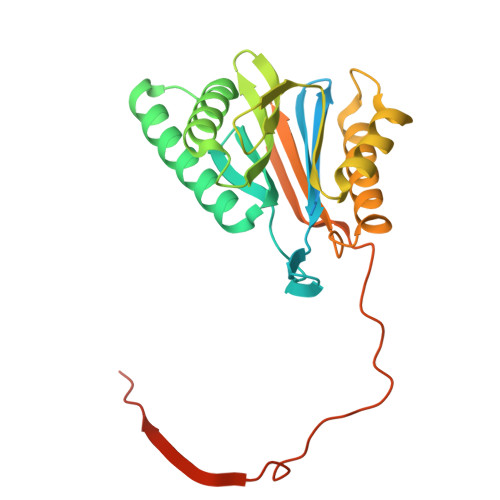

Proteasome subunit beta type-7
H, V
277Homo sapiensMutation(s): 0
Gene Names: PSMB7Z
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q99436 (Homo sapiens)
Explore Q99436
Go to UniProtKB:  Q99436
PHAROS:  Q99436
GTEx:  ENSG00000136930
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ99436
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage

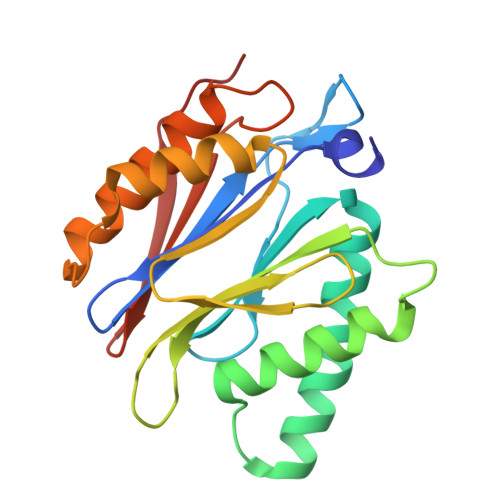

Proteasome subunit beta type-3
I, W
205Homo sapiensMutation(s): 0
Gene Names: PSMB3
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P49720 (Homo sapiens)
Explore P49720
Go to UniProtKB:  P49720
PHAROS:  P49720
GTEx:  ENSG00000277791
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP49720
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage

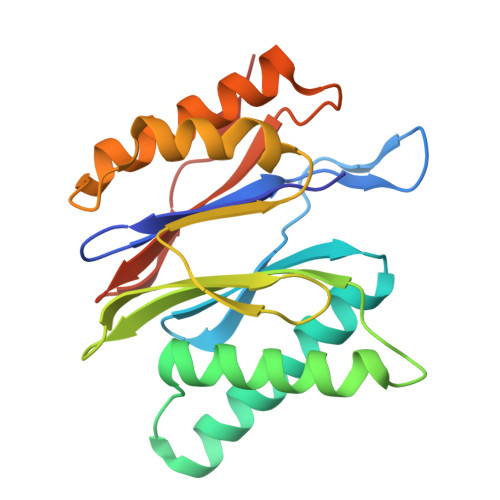

Proteasome subunit beta type-2
J, X
201Homo sapiensMutation(s): 0
Gene Names: PSMB2
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P49721 (Homo sapiens)
Explore P49721
Go to UniProtKB:  P49721
PHAROS:  P49721
GTEx:  ENSG00000126067
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP49721
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 11
MoleculeChains Sequence LengthOrganismDetailsImage

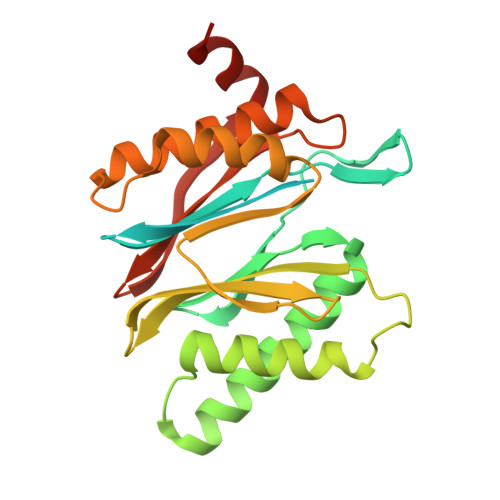

Proteasome subunit beta type-5
K, Y
263Homo sapiensMutation(s): 0
Gene Names: PSMB5LMPXMB1X
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P28074 (Homo sapiens)
Explore P28074
Go to UniProtKB:  P28074
PHAROS:  P28074
GTEx:  ENSG00000100804
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP28074
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage

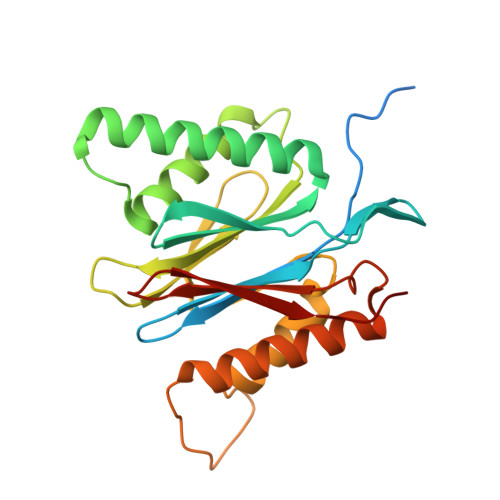

Proteasome subunit beta type-1
L, Z
241Homo sapiensMutation(s): 0
Gene Names: PSMB1PSC5
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P20618 (Homo sapiens)
Explore P20618
Go to UniProtKB:  P20618
PHAROS:  P20618
GTEx:  ENSG00000008018
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP20618
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage

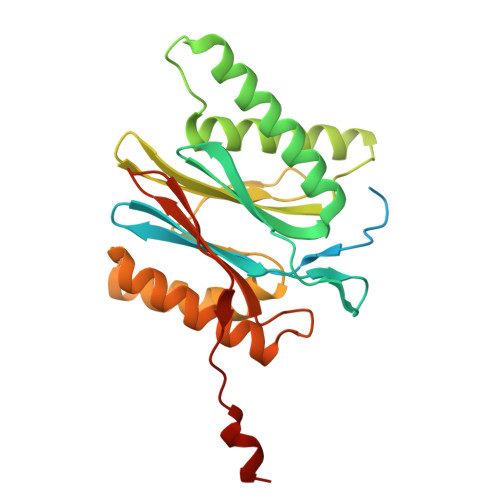

Proteasome subunit beta type-4AA [auth a],
M
264Homo sapiensMutation(s): 0
Gene Names: PSMB4PROS26
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P28070 (Homo sapiens)
Explore P28070
Go to UniProtKB:  P28070
PHAROS:  P28070
GTEx:  ENSG00000159377
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP28070
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 14
MoleculeChains Sequence LengthOrganismDetailsImage

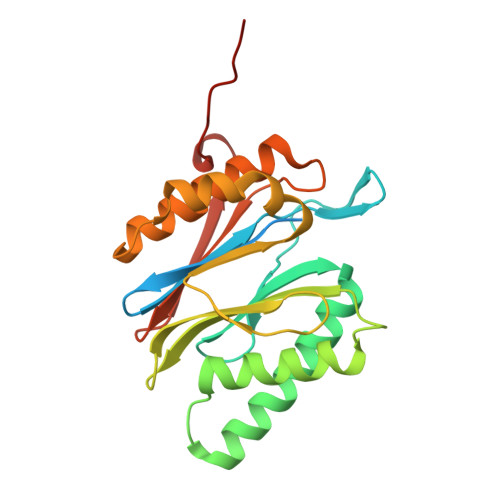

Proteasome subunit beta type-6BA [auth b],
N
239Homo sapiensMutation(s): 0
Gene Names: PSMB6LMPYY
EC: 3.4.25.1
UniProt & NIH Common Fund Data Resources
Find proteins for P28072 (Homo sapiens)
Explore P28072
Go to UniProtKB:  P28072
PHAROS:  P28072
GTEx:  ENSG00000142507
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP28072
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1CY5 (Subject of Investigation/LOI)
Query on A1CY5

Download Ideal Coordinates CCD File
CA [auth K],
DA [auth Y]
methyl N-{[(2R)-1-({(5R,8S)-5-[(3-fluorophenyl)methyl]-2,7-dioxo-1,6-diazacyclododecan-8-yl}amino)-1-oxo-3-phenylpropan-2-yl]carbamoyl}-L-valinate
C33 H44 F N5 O6
JXWBMCOYNYABKK-LEZVCQOQSA-N
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC
MODEL REFINEMENTPHENIX1.21.1_5286
MODEL REFINEMENTCoot

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Other private--

Revision History  (Full details and data files)

  • Version 1.0: 2026-04-15
    Type: Initial release
