9YGI | pdb_00009ygi

Cryo-EM structure of L9-21 in complex with Plasmodium falciparum circumsporozoite protein (PfCSP)

PDB DOI: https://doi.org/10.2210/pdb9YGI/pdb
EM Map EMD-72925: EMDB EMDataResource

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens, Plasmodium falciparum 3D7
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-09-29 Released: 2026-07-29
Deposition Author(s): Tripathi, P., Morano, N.C., Shapiro, L., Kwong, P.D.
Funding Organization(s): National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.98 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9YGI

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of L9-21 in complex with Plasmodium falciparum circumsporozoite protein (PfCSP)

Tripathi, P., Kwong, P.D.

To be published.

Macromolecule Content

Total Structure Weight: 118.42 kDa
Atom Count: 5,524
Modeled Residue Count: 704
Deposited Residue Count: 1,075
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

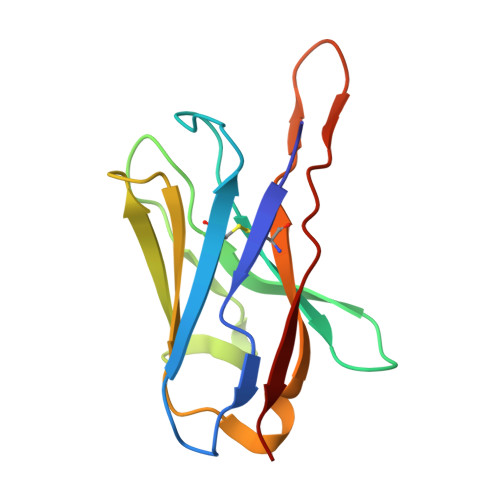

L9-21 heavy chain	A [auth H], C [auth M], E [auth O]	119	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

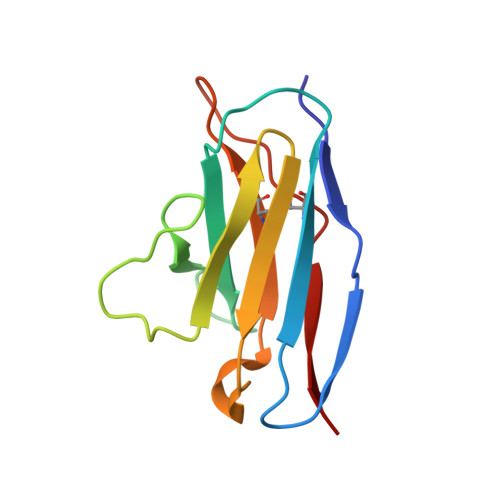

L9-21 light chain	B [auth L], D [auth N], F [auth P]	107	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

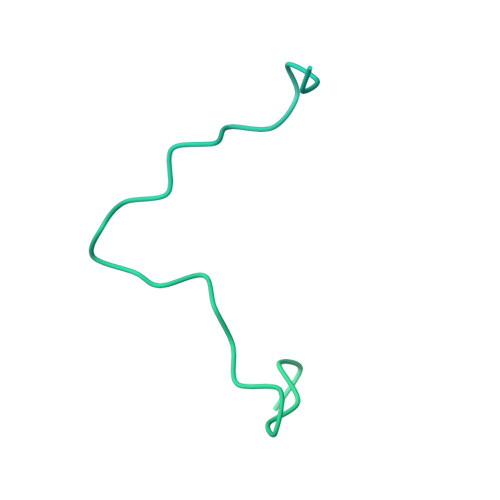

Circumsporozoite protein	G	397	Plasmodium falciparum 3D7	Mutation(s): 0 Gene Names: CSP, PF3D7_0304600
UniProt
Find proteins for Q7K740 (Plasmodium falciparum (isolate 3D7)) Explore Q7K740 Go to UniProtKB: Q7K740
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q7K740
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.98 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20_4459
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-07-29

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute Of Allergy and Infectious Diseases (NIH/NIAID)	United States	--

Revision History (Full details and data files)

Version 1.0: 2026-07-29
Type: Initial release
