9Y5M | pdb_00009y5m

LONP1 C3-state

PDB DOI: https://doi.org/10.2210/pdb9Y5M/pdb
EM Map EMD-72513: EMDB EMDataResource

Classification: TRANSLOCASE
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2025-09-04 Released: 2026-08-12
Deposition Author(s): Mindrebo, J.T., Lander, G.C.
Funding Organization(s): National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.92 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9Y5M

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM Reveals Regulatory Mechanisms Governing Substrate Selection and Activation of Human LONP1

Mindrebo, J.T., Alexandrescu, L., Baker, J.R., Wang, G., Lander, G.C.

(2025) Elife

DOI: https://doi.org/10.7554/elife.109186.1

Macromolecule Content

Total Structure Weight: 587.37 kDa
Atom Count: 26,393
Modeled Residue Count: 3,365
Deposited Residue Count: 5,172
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

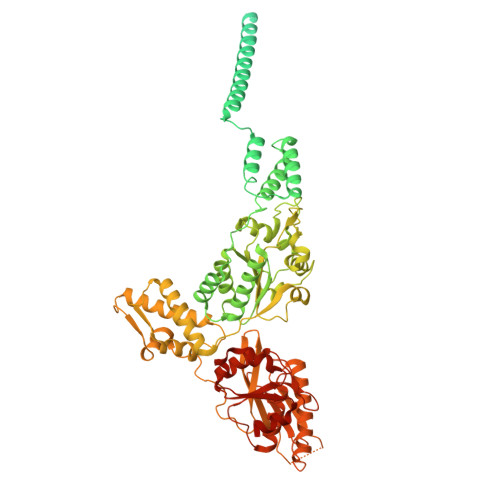

Lon protease homolog, mitochondrial	A, B, C, D, E A, B, C, D, E, F	862	Homo sapiens	Mutation(s): 0 Gene Names: LONP1, PRSS15 EC: 3.4.21.53 (PDB Primary Data), 3.6.4.10 (UniProt)
UniProt & NIH Common Fund Data Resources
Find proteins for P36776 (Homo sapiens) Explore P36776 Go to UniProtKB: P36776
GTEx: ENSG00000196365
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P36776
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ADP (Subject of Investigation/LOI) Query on ADP Download:Ideal Coordinates CCD File SDF format, chain L [auth F] SDF format, chain K [auth E] SDF format, chain J [auth D] SDF format, chain I [auth C] SDF format, chain H [auth B] SDF format, chain G [auth A] MOL2 format, chain L [auth F] MOL2 format, chain K [auth E] MOL2 format, chain J [auth D] MOL2 format, chain I [auth C] MOL2 format, chain H [auth B] MOL2 format, chain G [auth A] mmCIF format, chain L [auth F] mmCIF format, chain K [auth E] mmCIF format, chain J [auth D] mmCIF format, chain I [auth C] mmCIF format, chain H [auth B] mmCIF format, chain G [auth A]	G [auth A] H [auth B] I [auth C] J [auth D] K [auth E] G [auth A], H [auth B], I [auth C], J [auth D], K [auth E], L [auth F]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain G [auth A] Focus chain H [auth B] Focus chain I [auth C] Focus chain J [auth D] Focus chain K [auth E] Focus chain L [auth F] Interactions & Density Focus chain G [auth A] Focus chain H [auth B] Focus chain I [auth C] Focus chain J [auth D] Focus chain K [auth E] Focus chain L [auth F]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.92 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC	4.7
MODEL REFINEMENT	PHENIX	1.19.2_4158:

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-12

Deposition Author(s):

Funding Organization	Location	Grant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)	United States	NS095892

Revision History (Full details and data files)

Version 1.0: 2026-08-12
Type: Initial release
