9Y1G | pdb_00009y1g

S180R human DNA polymerase beta, Binary complex templating dC


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free:
    0.209 (Depositor), 0.207 (DCC)
  • R-Value Work:
    0.178 (Depositor), 0.174 (DCC)
  • R-Value Observed:
    0.181 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

The S180R Human Germline Variant of DNA Polymerase beta Is a Low Fidelity Enzyme with Reduced Flexibility of the Fingers Domain.

Sawyer, D.L.Eckenroth, B.E.Chavira, C.Alnajjar, K.Hanley, J.P.Dragon, J.A.Doublie, S.Sweasy, J.B.

(2026) Biochemistry

  • DOI: https://doi.org/10.1021/acs.biochem.5c00628
  • Primary Citation of Related Structures:
    9Y15, 9Y16, 9Y17, 9Y18, 9Y19, 9Y1A, 9Y1B, 9Y1C, 9Y1D, 9Y1E, 9Y1F, 9Y1G, 9Y1H, 9Y1I, 9Y1J, 9Y1K

  • PubMed Abstract:

    DNA polymerase β (Pol β) is an important polymerase that functions in DNA repair within the Base Excision Repair and Non-Homologous End-Joining pathways. It is estimated to function in the repair of up to 50,000 DNA lesions per cell per day, within the base excision repair pathway (BER). Given the significant role Pol β plays in repairing DNA, genetic variants of Pol β have the potential to perturb repair, resulting in mutation accumulation which can potentiate cancer formation. Here we identify an unstudied human germline variant of Pol β, the S180R variant (rs1585898410), which introduces a significant amino acid alteration within the dNTP binding pocket of the enzyme. We demonstrate that S180R is a low fidelity variant of Pol β due to its loss of the ability to discriminate correct nucleotides from incorrect nucleotides. We also show that this variant exhibits a much slower rate of nucleotide incorporation, which could further disrupt repair capacity in vivo . Structural data reveal that this variant not only has structural changes that may disrupt dNTP binding but also a loss of primer terminus positioning and dynamic flexibility of the fingers domain in the binary state, which likely are driving the low fidelity of S180R Pol β. This study highlights the importance of binary positioning and nucleotide coordinating residues for maintaining nucleotide selectivity, polymerase function, and fidelity. It also emphasizes the importance of further study of this human germline Pol β variant in vivo .


  • Organizational Affiliation
    • Department of Cell and Molecular Medicine, University of Arizona, 1515 N Campbell Avenue, Tucson, Arizona 85724, United States.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure

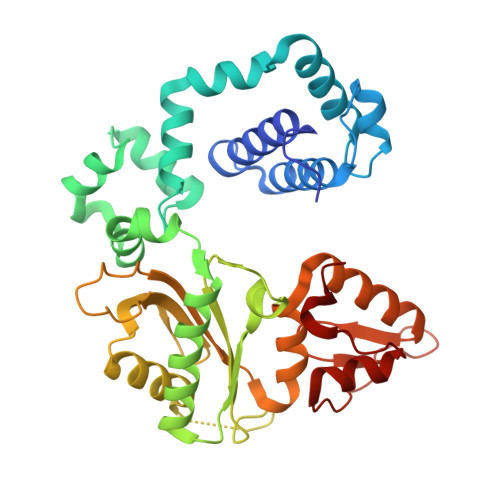

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
DNA polymerase beta335Homo sapiensMutation(s): 1
Gene Names: POLB
EC: 2.7.7.7 (PDB Primary Data), 4.2.99 (PDB Primary Data), 4.2.99.18 (PDB Primary Data)
UniProt & NIH Common Fund Data Resources
Find proteins for P06746 (Homo sapiens)
Explore P06746
Go to UniProtKB:  P06746
PHAROS:  P06746
GTEx:  ENSG00000070501
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP06746
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

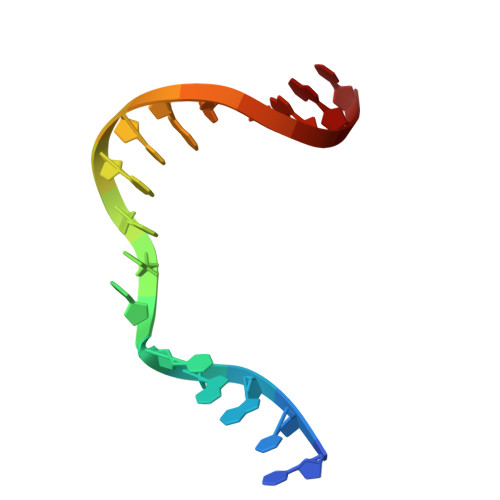

Entity ID: 2
MoleculeChains LengthOrganismImage
Template strandB [auth T]16synthetic construct
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

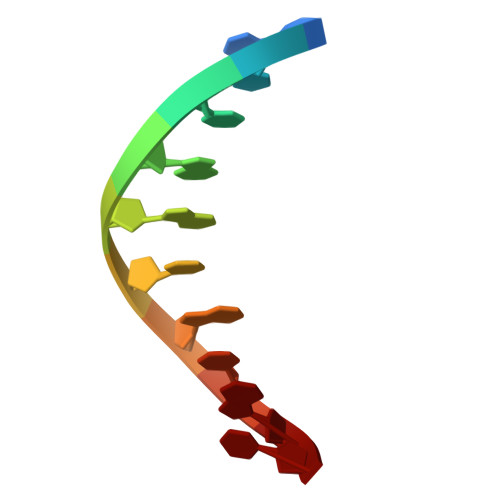

Entity ID: 3
MoleculeChains LengthOrganismImage
Primer strandC [auth P]10synthetic construct
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

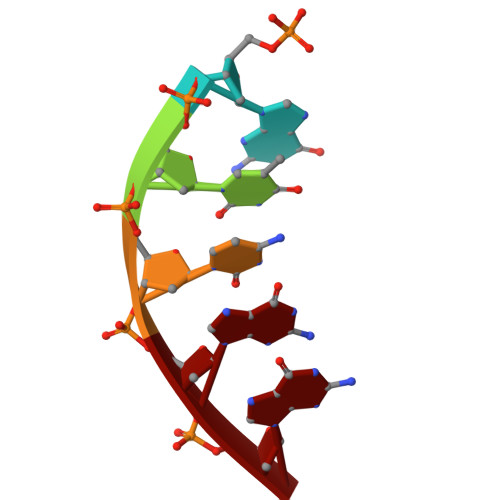

Entity ID: 4
MoleculeChains LengthOrganismImage
Downstream5synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 1.60 Å
  • R-Value Free:  0.209 (Depositor), 0.207 (DCC)
  • R-Value Work:  0.178 (Depositor), 0.174 (DCC)
  • R-Value Observed: 0.181 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 54.374α = 90
b = 79.841β = 105.31
c = 55.115γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
Aimlessdata scaling
DIALSdata reduction
PDB_EXTRACTdata extraction
PHENIXphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Cancer Institute (NIH/NCI)United StatesR01-CA281044
National Institutes of Health/National Cancer Institute (NIH/NCI)United StatesR50-CA233185

Revision History  (Full details and data files)

  • Version 1.0: 2026-01-28
    Type: Initial release
