9XTE | pdb_00009xte

E.coli delta lepA 30S ribosomal subunit class A, body domain


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.24 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

The Conserved GTPase LepA May Contribute to the Final Proper Stabilization of the 3' Domain of the 30S Subunit During Ribosome Assembly.

Kravchenko, O.Maksimova, E.Baymukhametov, T.Eliseeva, I.Stolboushkina, E.

(2026) Int J Mol Sci 27

  • DOI: https://doi.org/10.3390/ijms27010489
  • Primary Citation Related Structures:
    9XTC, 9XTD, 9XTE

  • PubMed Abstract:

    The function of the highly conserved GTPase LepA, a homolog of elongation factor EF-G, remains unknown in translation. However, there is biochemical data that it implicates in the 30S ribosomal subunit biogenesis. Here, using cryo-electron microscopy, we characterized 30S subunits isolated from an Escherichia coli strain with a deleted lepA gene. The cryo-EM maps for ∆ lepA 30S particles were divided into classes corresponding to consecutive assembly intermediates: from particles characterized by unformed helices h44/h45 of the central decoding center (CDR) and highly flexible head, through intermediates with a distorted CDR and a partial stabilization of the head, to near-mature 30S subunits with correctly docked h44 in the CDR, accessible 3' end of 16S rRNA for translation but significant flexibility in head domain. Cryo-EM analysis of Δ lepA 30S intermediates revealed that they predominantly proceed to nearly mature functional state and exhibit suboptimal flexibility in the head domain. This finding suggests that LepA likely contributes to the final proper stabilization of the 3' domain of the 30S subunit during ribosome assembly.


  • Organizational Affiliation
    • Institute of Protein Research, Russian Academy of Sciences, 142290 Pushchino, Russia.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

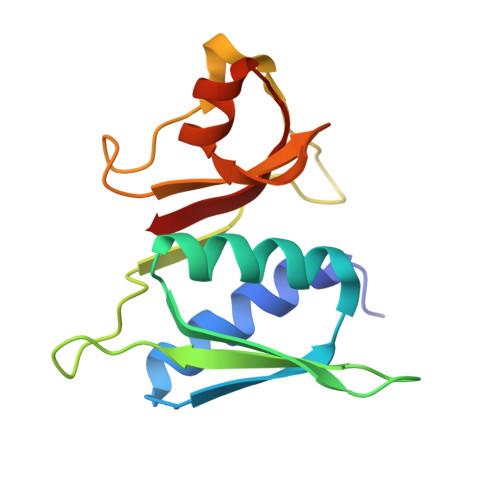

30S ribosomal protein S4A [auth D]206Escherichia coliMutation(s): 0
UniProt
Find proteins for P0A7V8 (Escherichia coli (strain K12))
Explore P0A7V8
Go to UniProtKB:  P0A7V8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7V8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

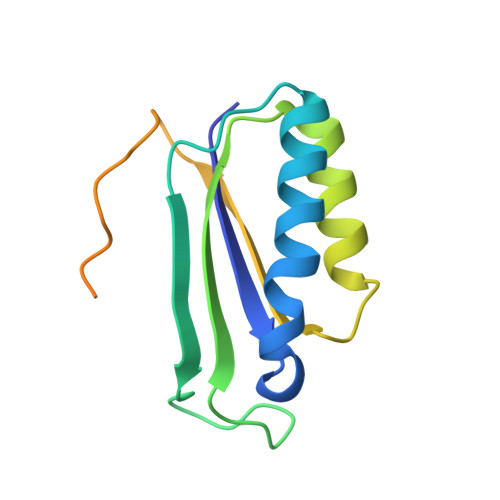

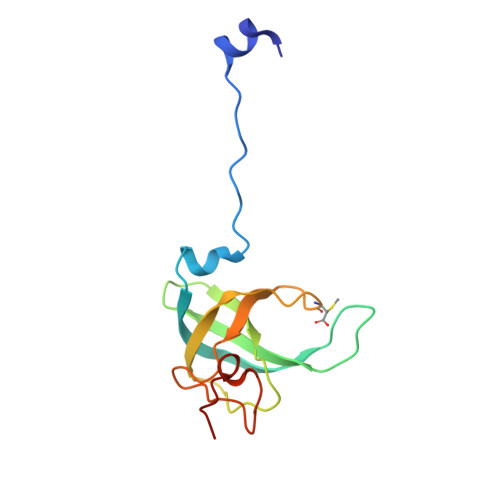

30S ribosomal protein S5B [auth E]167Escherichia coliMutation(s): 0
UniProt
Find proteins for P0A7W1 (Escherichia coli (strain K12))
Explore P0A7W1
Go to UniProtKB:  P0A7W1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7W1
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

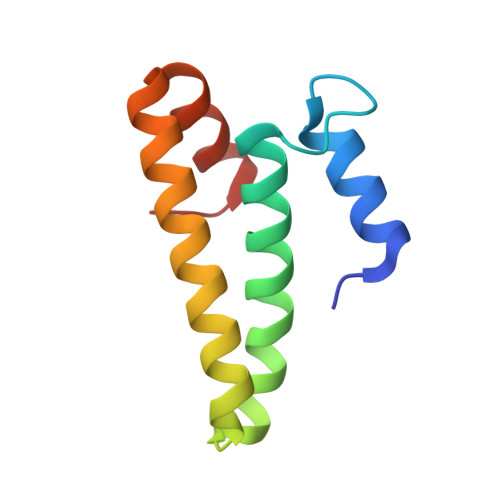

30S ribosomal protein S6, fully modified isoformC [auth F]135Escherichia coliMutation(s): 0
UniProt
Find proteins for P02358 (Escherichia coli (strain K12))
Explore P02358
Go to UniProtKB:  P02358
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP02358
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
30S ribosomal protein S8D [auth H]130Escherichia coliMutation(s): 0
UniProt
Find proteins for P0A7W7 (Escherichia coli (strain K12))
Explore P0A7W7
Go to UniProtKB:  P0A7W7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7W7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
30S ribosomal protein S12E [auth L]124Escherichia coliMutation(s): 0
UniProt
Find proteins for P0A7S3 (Escherichia coli (strain K12))
Explore P0A7S3
Go to UniProtKB:  P0A7S3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7S3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage
30S ribosomal protein S15F [auth O]89Escherichia coliMutation(s): 0
UniProt
Find proteins for P0ADZ4 (Escherichia coli (strain K12))
Explore P0ADZ4
Go to UniProtKB:  P0ADZ4
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0ADZ4
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

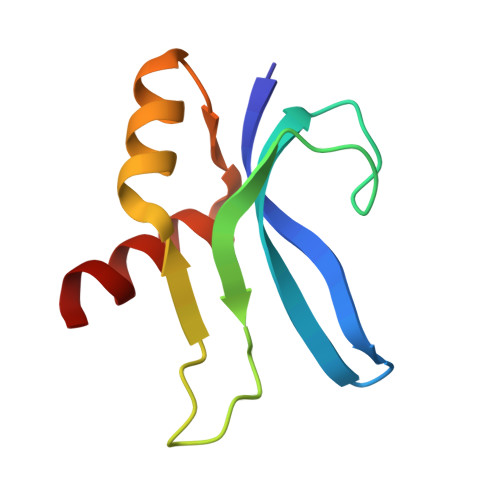

Small ribosomal subunit protein bS16G [auth P]81Escherichia coliMutation(s): 0
UniProt
Find proteins for P0A7T3 (Escherichia coli (strain K12))
Explore P0A7T3
Go to UniProtKB:  P0A7T3
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7T3
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage

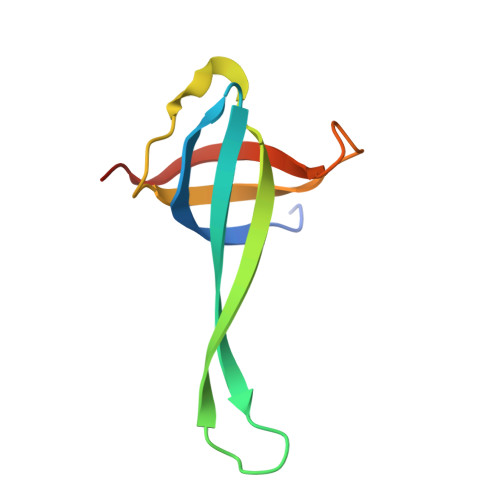

30S ribosomal protein S17H [auth Q]84Escherichia coliMutation(s): 0
UniProt
Find proteins for P0AG63 (Escherichia coli (strain K12))
Explore P0AG63
Go to UniProtKB:  P0AG63
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0AG63
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage

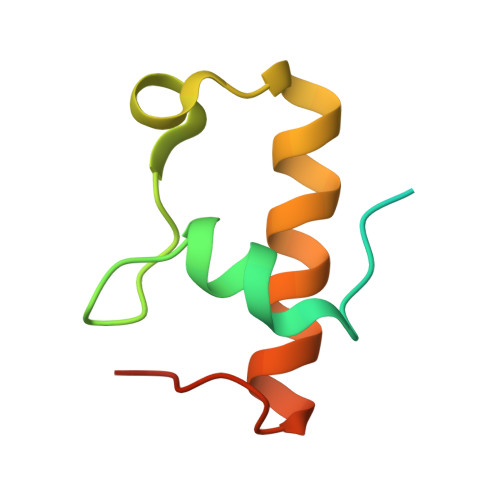

30S ribosomal protein S18I [auth R]75Escherichia coliMutation(s): 0
UniProt
Find proteins for P0A7T7 (Escherichia coli (strain K12))
Explore P0A7T7
Go to UniProtKB:  P0A7T7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7T7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 10
MoleculeChains Sequence LengthOrganismDetailsImage

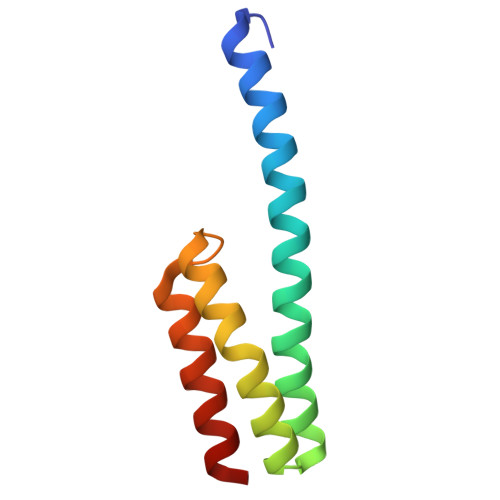

30S ribosomal protein S20J [auth T]87Escherichia coliMutation(s): 0
UniProt
Find proteins for P0A7U7 (Escherichia coli (strain K12))
Explore P0A7U7
Go to UniProtKB:  P0A7U7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7U7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 12
MoleculeChains Sequence LengthOrganismDetailsImage

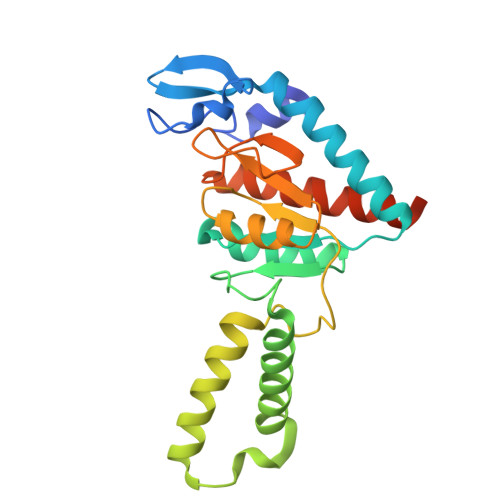

30S ribosomal protein S2L [auth B]241Escherichia coliMutation(s): 0
UniProt
Find proteins for P0A7V0 (Escherichia coli (strain K12))
Explore P0A7V0
Go to UniProtKB:  P0A7V0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7V0
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 13
MoleculeChains Sequence LengthOrganismDetailsImage

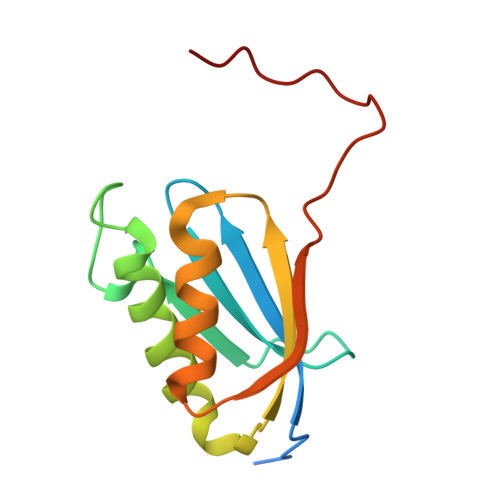

Small ribosomal subunit protein uS11M [auth K]129Escherichia coliMutation(s): 0
UniProt
Find proteins for P0A7R9 (Escherichia coli (strain K12))
Explore P0A7R9
Go to UniProtKB:  P0A7R9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0A7R9
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)
Entity ID: 11
MoleculeChains LengthOrganismImage

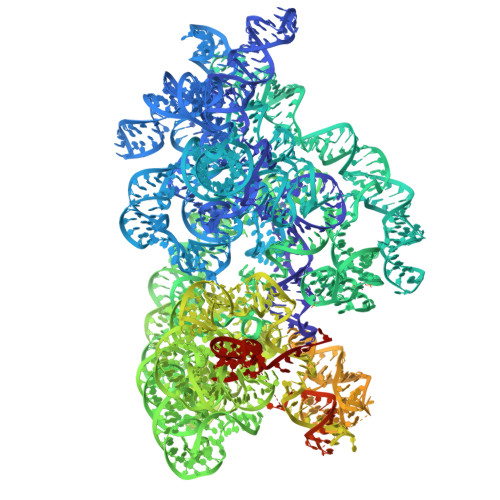

RNA (1026-MER)K [auth A]1,542Escherichia coli
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 1 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
MG (Subject of Investigation/LOI)
Query on MG

Download Ideal Coordinates CCD File
AA [auth A]
BA [auth A]
CA [auth A]
DA [auth A]
EA [auth A]
AA [auth A],
BA [auth A],
CA [auth A],
DA [auth A],
EA [auth A],
FA [auth A],
GA [auth A],
HA [auth A],
IA [auth A],
JA [auth A],
KA [auth A],
LA [auth A],
MA [auth A],
N [auth A],
NA [auth A],
O [auth A],
OA [auth A],
P [auth A],
PA [auth A],
Q [auth A],
QA [auth A],
R [auth A],
RA [auth A],
S [auth A],
SA [auth A],
T [auth A],
TA [auth A],
U [auth A],
UA [auth A],
V [auth A],
W [auth A],
X [auth A],
Y [auth A],
Z [auth A]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Modified Residues  1 Unique
IDChains TypeFormula2D DiagramParent
D2T
Query on D2T
E [auth L]L-PEPTIDE LINKINGC5 H9 N O4 SASP
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.24 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC4.6.1

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Russian Science FoundationRussian Federation19-74-20186

Revision History  (Full details and data files)

  • Version 1.0: 2026-04-08
    Type: Initial release
