9XSG | pdb_00009xsg

CryoEM structure of hGZMA-hGSDMB

PDB DOI: https://doi.org/10.2210/pdb9XSG/pdb
EM Map EMD-67181: EMDB EMDataResource

Classification: IMMUNE SYSTEM
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): Yes

Deposited: 2025-11-21 Released: 2026-09-09
Deposition Author(s): Zhao, X., Zhang, K., Liu, Z.
Funding Organization(s): Other government

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.40 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation

Currently 9XSG does not have a validation slider image.

This is version 1.0 of the entry. See complete history.

Literature

CryoEM structure of hGZMA-hGSDMB

Zhao, X., Zhang, K., Liu, Z.

To be published.

Macromolecule Content

Total Structure Weight: 148.97 kDa
Atom Count: 7,564
Modeled Residue Count: 965
Deposited Residue Count: 1,320
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

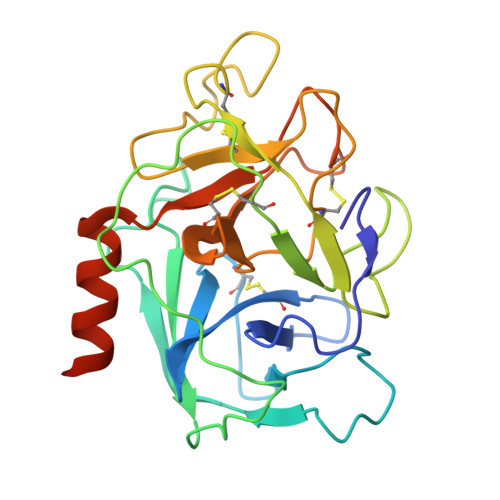

Granzyme A	A, B	243	Homo sapiens	Mutation(s): 1 Gene Names: GZMA, CTLA3, HFSP EC: 3.4.21.78
UniProt & NIH Common Fund Data Resources
Find proteins for P12544 (Homo sapiens) Explore P12544 Go to UniProtKB: P12544
PHAROS: P12544 GTEx: ENSG00000145649
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P12544
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

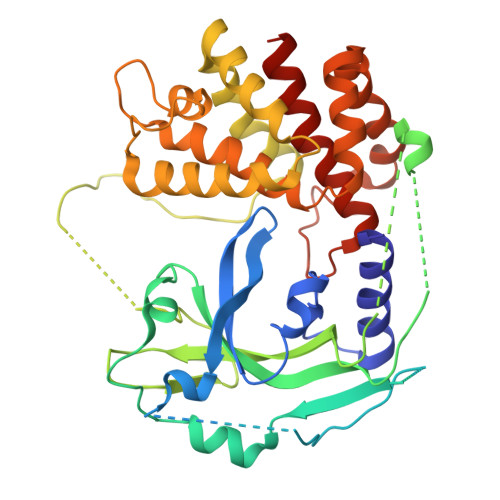

Gasdermin-B	C [auth E], D	417	Homo sapiens	Mutation(s): 0 Gene Names: GSDMB, GSDML, PP4052, PRO2521
UniProt & NIH Common Fund Data Resources
Find proteins for Q8TAX9 (Homo sapiens) Explore Q8TAX9 Go to UniProtKB: Q8TAX9
PHAROS: Q8TAX9 GTEx: ENSG00000073605
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8TAX9
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.40 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487
RECONSTRUCTION	cryoSPARC

Structure Validation

Currently 9XSG does not have a validation slider image.

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-09

Deposition Author(s):

Funding Organization	Location	Grant Number
Other government		--

Revision History (Full details and data files)

Version 1.0: 2026-09-09
Type: Initial release
