9XON | pdb_00009xon

RIPK1 death domain filamentation drives TNF-induced apoptosis

PDB DOI: https://doi.org/10.2210/pdb9XON/pdb
EM Map EMD-67084: EMDB EMDataResource

Classification: APOPTOSIS
Organism(s): Homo sapiens
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2025-11-14 Released: 2026-10-14
Deposition Author(s): Liu, P., Tan, Y.B., Luo, D.
Funding Organization(s): National Research Foundation (NRF, Singapore)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.50 Å
Aggregation State: FILAMENT
Reconstruction Method: SINGLE PARTICLE

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9XON

This is version 1.0 of the entry. See complete history.

Literature

RIPK1 Death Domain Filamentation Drives TNF-Induced Apoptosis

Chen, Y., Liu, P., Tan, Y.B., Luo, D., Tergaonkar, V.

To be published.

Macromolecule Content

Total Structure Weight: 321.09 kDa
Atom Count: 20,600
Modeled Residue Count: 2,525
Deposited Residue Count: 2,775
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

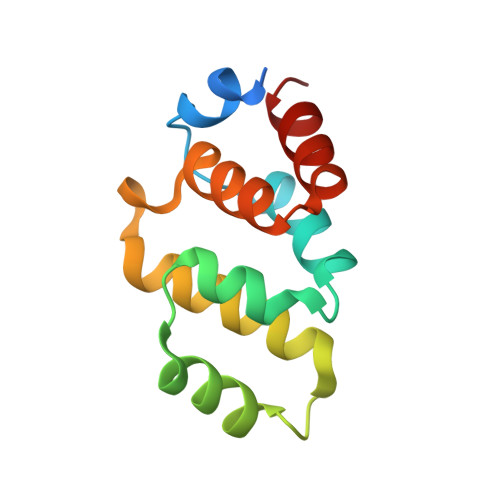

Receptor-interacting serine/threonine-protein kinase 1	A, B, C, D, E A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V, W, X, Y	111	Homo sapiens	Mutation(s): 0 Gene Names: RIPK1, RIP, RIP1 EC: 2.7.11.1
UniProt & NIH Common Fund Data Resources
Find proteins for Q13546 (Homo sapiens) Explore Q13546 Go to UniProtKB: Q13546
PHAROS: Q13546 GTEx: ENSG00000137275
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q13546
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.50 Å
Aggregation State: FILAMENT
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC
MODEL REFINEMENT	PHENIX	1.20.1_4487
MODEL REFINEMENT	Coot

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-10-14

Deposition Author(s):

Funding Organization	Location	Grant Number
National Research Foundation (NRF, Singapore)	Singapore	NRF-CRP26-2021-0001

Revision History (Full details and data files)

Version 1.0: 2026-10-14
Type: Initial release
