Structure of the SARS-CoV-2 Spike N-terminal domain(NTD) in complex with the C1624 Fab


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.77 Å
  • R-Value Free:
    0.288 (Depositor), 0.287 (DCC)
  • R-Value Work:
    0.240 (Depositor), 0.241 (DCC)
  • R-Value Observed:
    0.242 (Depositor)

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

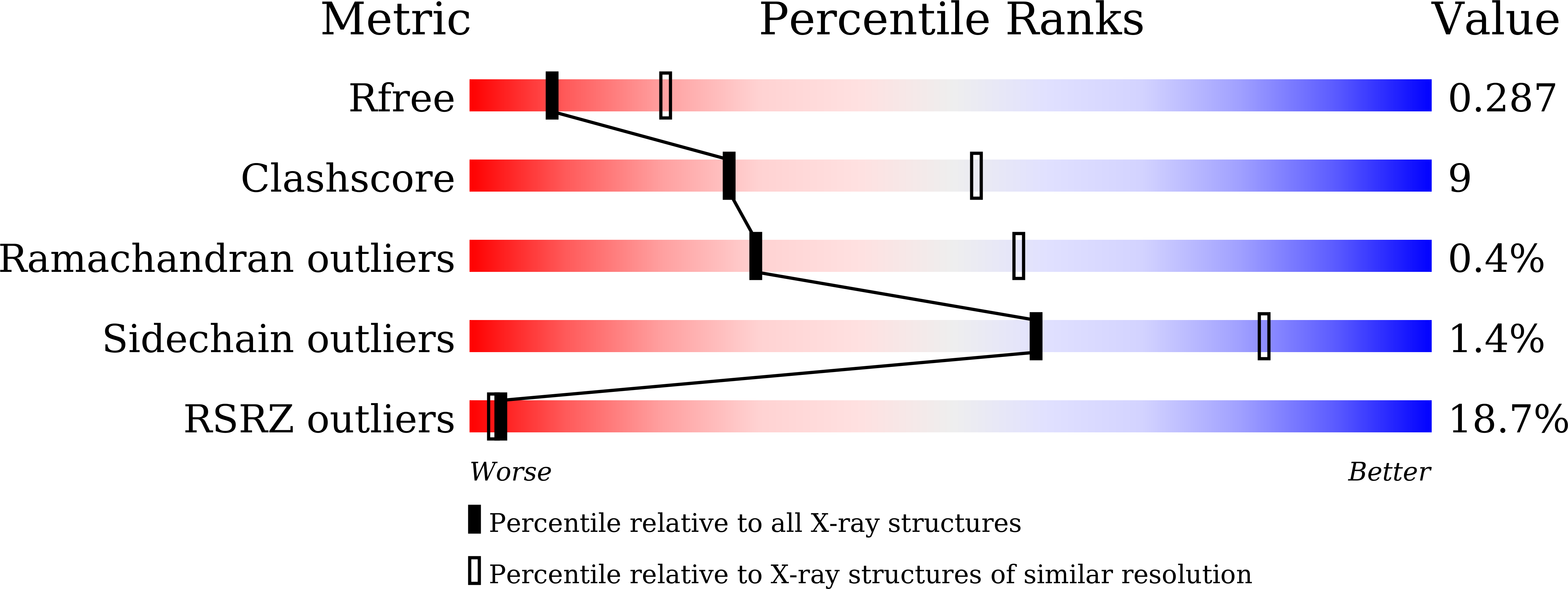

Validation slider image for 9XAR

Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history.

Literature

A structural and mechanistic atlas of NTD antibody neutralization and immune escape across SARS-CoV-2 prototype and its (sub-)variants.

Zhou, J., Li, W., Wang, X., Sun, J., Guo, S., Rong, X., Tong, Z., Dai, L., Liu, W.J., Qi, J., Gao, G.F., Wang, Q.

(2026) Proc Natl Acad Sci U S A 123: e2535385123-e2535385123

  • DOI: https://doi.org/10.1073/pnas.2535385123
  • Primary Citation Related Structures:
    9W6U, 9WIG, 9X9Z, 9XA0, 9XA4, 9XA5, 9XAR, 9XAW

  • PubMed Abstract:

    The N-terminal domain (NTD) of the SARS-CoV-2 spike (S) is a critical antibody target, yet its epitope organization, neutralization mechanisms, and immune evasion strategies remain incompletely resolved. Here, we classify NTD antibodies into nine spatially distinct classes (designated as NTD-1 to NTD-9), including a cryptic epitope defined here (NTD-8). Mechanistic studies reveal that NTD-5 and NTD-9 antibodies neutralize by inducing S1 shedding, thereby extending this mechanism to selected NTD-directed antibodies. Format profiling shows that while most NTD antibodies require bivalency, selected antibodies from NTD-3, NTD-5, and NTD-9 retain neutralizing activity in Fab form. Profiling 41 antibodies across prototype, Delta, and 17 Omicron subvariants defines an epitope-resolved escape landscape and enables dissection of three convergent evasion strategies: contact residue disruption, glycan shielding, and conformational remodeling. Notably, the KP.3.1.1 subvariant uses a dual escape mechanism in which ∆S31 introduces N30 glycosylation and substantially remodels the S27-R34 region, undermining recognition by both NTD-5 and NTD-9 antibodies. These findings provide a structural and mechanistic framework for rational vaccine and antibody design resilient to antigenic drift.


  • Organizational Affiliation:
    • Chinese Academy of Sciences Key Laboratory of Pathogen Microbiology and Immunology, Institute of Microbiology, Chinese Academy of Sciences, Beijing 100101, China.

Macromolecule Content

  • Total Structure Weight: 174.16 kDa
  • Atom Count: 11,802
  • Modeled Residue Count: 1,441
  • Deposited Residue Count: 1,504
  • Unique protein chains: 3

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

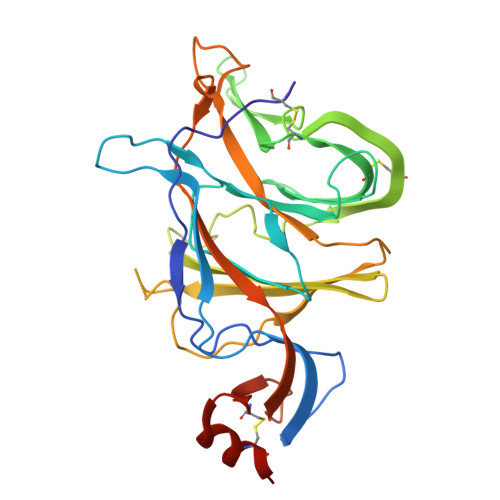

Spike protein S1A,
F [auth D]
298Severe acute respiratory syndrome coronavirus 2Mutation(s): 0
Gene Names: S, 2
UniProt
Find proteins for P0DTC2 (Severe acute respiratory syndrome coronavirus 2)
Explore P0DTC2
Go to UniProtKB:  P0DTC2
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP0DTC2
Glycosylation
Glycosylation Sites: 8Go to GlyGen: P0DTC2-1
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

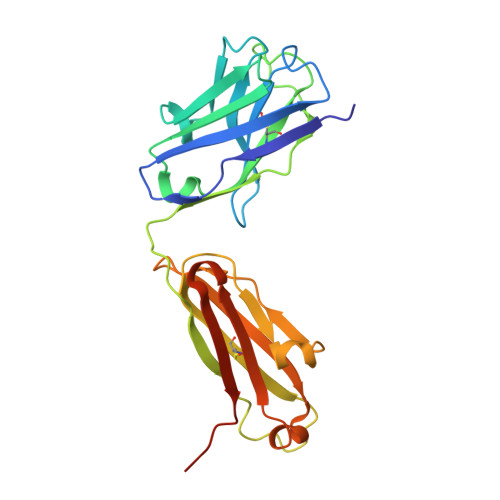

C1624 heavy chainB,
D [auth E]
236Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

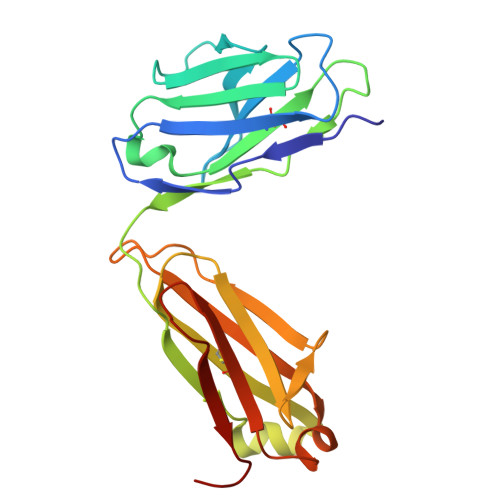

C1624 light chainC,
E [auth F]
218Homo sapiensMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence

Oligosaccharides

Help
Entity ID: 4
MoleculeChains Length2D Diagram GlycosylationD Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
G, J, M, Q
3N-Glycosylation
Glycosylation Resources
GlyTouCan: G21290RB
GlyCosmos: G21290RB
GlyGen: G21290RB
Entity ID: 5
MoleculeChains Length2D Diagram GlycosylationD Interactions
2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
H, K, N, R
2N-Glycosylation
Glycosylation Resources
GlyTouCan: G42666HT
GlyCosmos: G42666HT
GlyGen: G42666HT
Entity ID: 6
MoleculeChains Length2D Diagram GlycosylationD Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[alpha-L-fucopyranose-(1-6)]2-acetamido-2-deoxy-beta-D-glucopyranose
I, P
4N-Glycosylation
Glycosylation Resources
GlyTouCan: G32152BH
GlyCosmos: G32152BH
GlyGen: G32152BH
Entity ID: 7
MoleculeChains Length2D Diagram GlycosylationD Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
L, O
3N-Glycosylation
Glycosylation Resources
GlyTouCan: G15407YE
GlyCosmos: G15407YE
GlyGen: G15407YE

Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 2.77 Å
  • R-Value Free:  0.288 (Depositor), 0.287 (DCC)
  • R-Value Work:  0.240 (Depositor), 0.241 (DCC)
  • R-Value Observed: 0.242 (Depositor)
Space Group: P 1 21 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 75.608α = 90
b = 116.03β = 104.98
c = 137.003γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
xia2data reduction
xia2data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Chinese Academy of SciencesChina--

Revision History  (Full details and data files)

  • Version 1.0: 2026-08-05
    Type: Initial release
  • Version 1.1: 2026-09-16
    Changes: Database references
