9X99 | pdb_00009x99

Crystal structure of RhoBAST in complex with TMR-DN

• PDB DOI: https://doi.org/10.2210/pdb9X99/pdb

• Classification: RNA
• Organism(s): synthetic construct
• Expression System: in vitro transcription vector pT7-TP(deltai)
• Mutation(s): No


• Deposited: 2025-10-20 Released: 2026-10-28
• Deposition Author(s): Tai, X.Q., Ren, A.M.
• Funding Organization(s): National Natural Science Foundation of China (NSFC)

---

Experimental Data Snapshot

• Method: X-RAY DIFFRACTION
• Resolution: 2.80 Å
• R-Value Free:
  0.242 (Depositor), 0.237 (DCC)
• R-Value Work:
  0.196 (Depositor), 0.197 (DCC)
• R-Value Observed:
  0.201 (Depositor)

Starting Model: experimental

Literature

Crystal structure of RhoBAST in comple with TMR-DN

Tai, X.Q., Ren, A.M.

To be published.

Biological Assembly 1

Biological assembly 1 assigned by authors and generated by PISA (software)

Macromolecule Content

• Total Structure Weight: 19.37 kDa
• Atom Count: 1,297
• Modeled Residue Count: 57
• Deposited Residue Count: 57
• Unique nucleic acid chains: 1

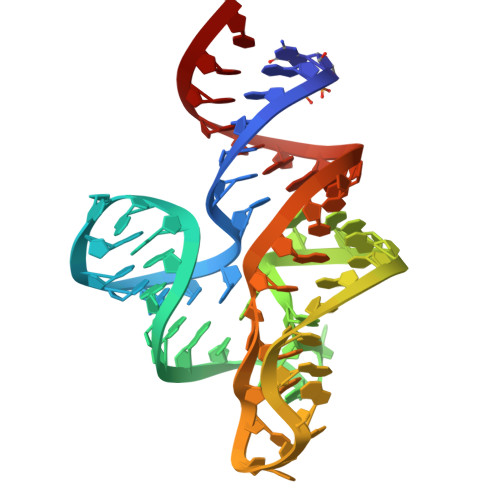

Macromolecules

Entity ID: 1
Molecule	Chains	Length	Organism	Image
RNA (58-MER)	A [auth U]	57	synthetic construct

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1EZE( Subject of Investigation/LOI)	B [auth U]	[9-[2-carboxy-4-[2-[2-[2-[(2,4-dinitrophenyl)amino]ethoxy]ethoxy]ethylcarbamoyl]phenyl]-6-(dimethylamino)xanthen-3-ylidene]-dimethyl-azanium C37 H39 N6 O10 XJJZEOMXQMSRAG-UHFFFAOYSA-O
MG	C [auth U], D [auth U], E [auth U]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: X-RAY DIFFRACTION
• Resolution: 2.80 Å
• R-Value Free:  0.242 (Depositor), 0.237 (DCC)
• R-Value Work:  0.196 (Depositor), 0.197 (DCC)
• R-Value Observed: 0.201 (Depositor)

Space Group: P 6₅ 2 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 83.319	α = 90
b = 83.319	β = 90
c = 95.071	γ = 120

Software Package:

Software Name	Purpose
PHENIX	refinement
HKL-3000	data scaling
PDB_EXTRACT	data extraction
HKL-3000	data reduction
PHASER	phasing

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-10-28
Deposition Author(s): Tai, X.Q., Ren, A.M.

---

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History

• Version 1.0: 2026-10-28
  Type: Initial release
