9X74 | pdb_00009x74

Human GPR30 -Gq complex


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.15 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9X74

This is version 1.0 of the entry. See complete history

Literature

Cryo-EM structure of the bicarbonate receptor GPR30.

Kaneda, S.Jo-Watanabe, A.Akasaka, H.Oshima, H.S.Yokomizo, T.Shihoya, W.Nureki, O.

(2026) Elife 13

  • DOI: https://doi.org/10.7554/eLife.99874
  • Primary Citation Related Structures:
    9X74

  • PubMed Abstract:

    G-protein-coupled receptor 30 (GPR30) is a bicarbonate receptor that plays a vital role in cellular responses to extracellular pH and ion homeostasis. Despite its significance, the mechanisms by which GPR30 interacts with bicarbonate ions remain elusive. There is no consensus on a drug that targets GPR30, and difficulties in pharmacological analyses have limited biological and drug discovery research on GPR30. Here, we present the cryo-electron microscopy structure of human GPR30 in the presence of bicarbonate ions at 3.15 Å resolution. Our structure reveals unique extracellular pockets and critical residues for bicarbonate binding and activation. Functional assays demonstrate that mutations in these residues impair bicarbonate-induced GPR30 activation, underscoring their importance in receptor function. This study also provides insights into G-protein coupling, highlighting the structural divergence between GPR30 and other G-protein-coupled receptors (GPCRs). Our findings not only advance the understanding of the role of GPR30 in pH homeostasis but also pave the way for the development of high-affinity drugs targeting GPR30 for therapeutic interventions in diseases associated with acid-base imbalance.


  • Organizational Affiliation
    • Department of Biological Sciences, Graduate School of Science, The University of Tokyo, Tokyo, Japan.

Macromolecule Content

  • Total Structure Weight: 199.11 kDa
  • Atom Count: 8,468
  • Modeled Residue Count: 1,108
  • Deposited Residue Count: 1,810
  • Unique protein chains: 5

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

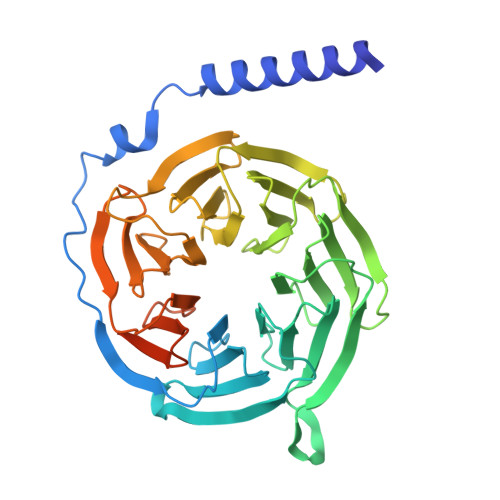

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1A [auth B]374Rattus norvegicusMutation(s): 0
Gene Names: Gnb1
UniProt
Find proteins for P54311 (Rattus norvegicus)
Explore P54311
Go to UniProtKB:  P54311
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP54311
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

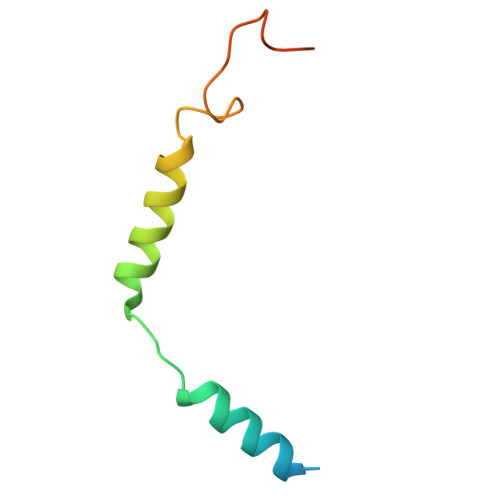

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2B [auth G]68Homo sapiensMutation(s): 0
Gene Names: GNG2
UniProt & NIH Common Fund Data Resources
Find proteins for P59768 (Homo sapiens)
Explore P59768
Go to UniProtKB:  P59768
GTEx:  ENSG00000186469
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP59768
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

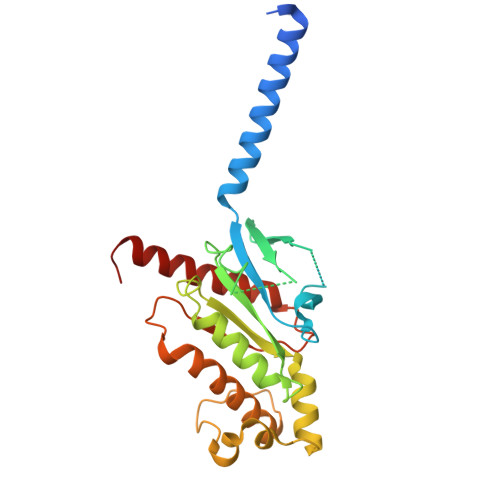

Guanine nucleotide-binding protein G(i) subunit alpha-2,Guanine nucleotide-binding protein G(s) subunit alpha isoforms shortC [auth A]258Bos taurusMutation(s): 25
Gene Names: GNAI2GNAI2BGNASGNAS1
EC: 3.6.5
UniProt & NIH Common Fund Data Resources
Find proteins for P04899 (Homo sapiens)
Explore P04899
Go to UniProtKB:  P04899
GTEx:  ENSG00000114353
Find proteins for P04896 (Bos taurus)
Explore P04896
Go to UniProtKB:  P04896
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupsP04899P04896
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage

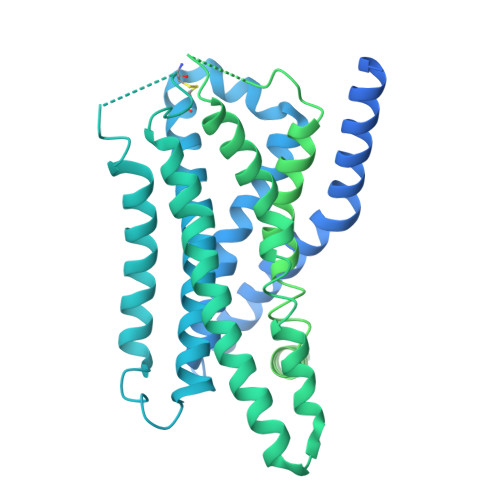

G-protein coupled estrogen receptor 1D [auth R]850Homo sapiensMutation(s): 0
Gene Names: GPER1CEPRCMKRL2DRY12GPERGPR30
UniProt & NIH Common Fund Data Resources
Find proteins for Q99527 (Homo sapiens)
Explore Q99527
Go to UniProtKB:  Q99527
GTEx:  ENSG00000164850
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ99527
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage

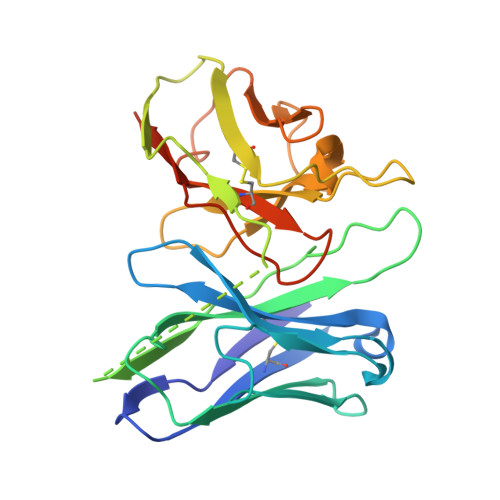

scFv16E [auth S]260Mus musculusMutation(s): 0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.15 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.20.1_4487
RECONSTRUCTIONcryoSPARC4

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Japan Society for the Promotion of Science (JSPS)Japan21H05037

Revision History  (Full details and data files)

  • Version 1.0: 2026-08-26
    Type: Initial release
