9WXP | pdb_00009wxp

cryo-EM structure of a mammalian collagen fibril

PDB DOI: https://doi.org/10.2210/pdb9WXP/pdb
EM Map EMD-66353: EMDB EMDataResource

Classification: PROTEIN FIBRIL
Organism(s): Sus scrofa
Mutation(s): No

Deposited: 2025-09-25 Released: 2026-08-05
Deposition Author(s): Lou, X., Cong, Y., Xu, Y., Yan, C.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.20 Å
Aggregation State: FILAMENT
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

The molecular architecture of a mammalian collagen fibril

Lou, X., Cong, Y., Xu, Y., Yan, C.

To be published.

Macromolecule Content

Total Structure Weight: 4,134.99 kDa
Atom Count: 279,032
Modeled Residue Count: 42,376
Deposited Residue Count: 43,552
Unique protein chains: 30

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen alpha-1(V) chain	A [auth AA], DB [auth FA], GD [auth KA], JF [auth PA]	246	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A480MJQ8 (Sus scrofa) Explore A0A480MJQ8 Go to UniProtKB: A0A480MJQ8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A480MJQ8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image
Fibrillar collagen NC1 domain-containing protein	B [auth BA], EB [auth GA], HD [auth LA], KF [auth QA]	233	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1DM46 (Sus scrofa) Explore A0A8D1DM46 Go to UniProtKB: A0A8D1DM46
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1DM46
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image
Fibrillar collagen NC1 domain-containing protein	C [auth CA], FB [auth HA], ID [auth MA], LF [auth RA]	234	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1DM46 (Sus scrofa) Explore A0A8D1DM46 Go to UniProtKB: A0A8D1DM46
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1DM46
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image
Fibrillar collagen NC1 domain-containing protein	D [auth DA], GB [auth IA], JD [auth NA], MF [auth SA]	237	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1DM80 (Sus scrofa) Explore A0A8D1DM80 Go to UniProtKB: A0A8D1DM80
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1DM80
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

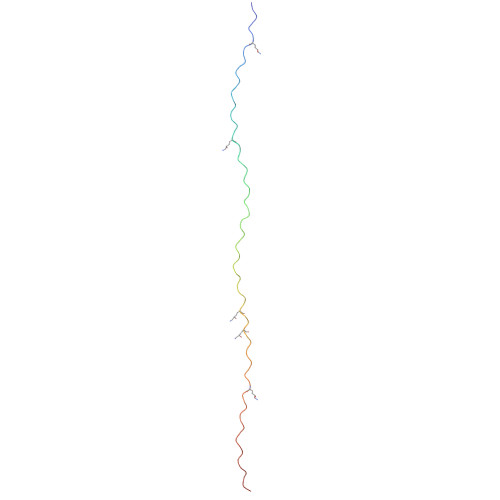

Fibrillar collagen NC1 domain-containing protein	E [auth EA], HB [auth JA], KD [auth OA], NF [auth TA]	77	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1DM46 (Sus scrofa) Explore A0A8D1DM46 Go to UniProtKB: A0A8D1DM46
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1DM46
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen type XI alpha 1 chain	F [auth AC], IB [auth FC], LD [auth KC], OF [auth PC]	246	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A4X1TLK6 (Sus scrofa) Explore A0A4X1TLK6 Go to UniProtKB: A0A4X1TLK6
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A4X1TLK6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen type XI alpha 1 chain	G [auth BC], JB [auth GC], MD [auth LC], PF [auth QC]	233	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A5G2RGP6 (Sus scrofa) Explore A0A5G2RGP6 Go to UniProtKB: A0A5G2RGP6
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A5G2RGP6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen type XI alpha 1 chain	H [auth CC], KB [auth HC], ND [auth MC], QF [auth RC]	235	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A4X1TLK6 (Sus scrofa) Explore A0A4X1TLK6 Go to UniProtKB: A0A4X1TLK6
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A4X1TLK6
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image
Fibrillar collagen NC1 domain-containing protein	I [auth DC], LB [auth IC], OD [auth NC], RF [auth SC]	236	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1N6J3 (Sus scrofa) Explore A0A8D1N6J3 Go to UniProtKB: A0A8D1N6J3
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1N6J3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image

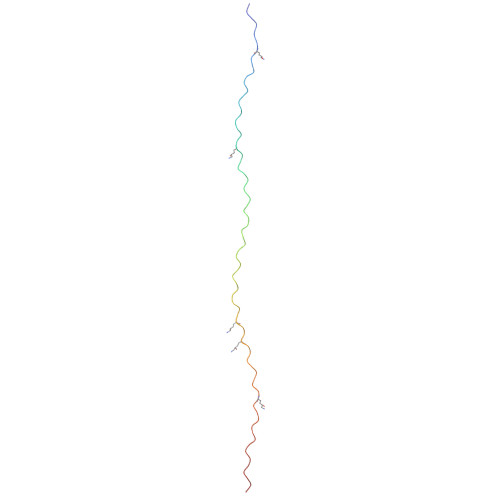

Fibrillar collagen NC1 domain-containing protein	J [auth EC], MB [auth JC], PD [auth OC], SF [auth TC]	76	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1N6J3 (Sus scrofa) Explore A0A8D1N6J3 Go to UniProtKB: A0A8D1N6J3
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1N6J3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image
Chromaffin granule amine transporter isoform X1	K [auth AB], NB [auth FB], QD [auth KB], TF [auth PB]	231	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A480YT77 (Sus scrofa) Explore A0A480YT77 Go to UniProtKB: A0A480YT77
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A480YT77
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen type V alpha 2 chain	L [auth BB], OB [auth GB], RD [auth LB], UF [auth QB]	233	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D0XPB4 (Sus scrofa) Explore A0A8D0XPB4 Go to UniProtKB: A0A8D0XPB4
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D0XPB4
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen type V alpha 2 chain	M [auth CB], PB [auth HB], SD [auth MB], VF [auth RB]	234	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A4X1TRM1 (Sus scrofa) Explore A0A4X1TRM1 Go to UniProtKB: A0A4X1TRM1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A4X1TRM1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen alpha-2(V) chain preproprotein	N [auth DB], QB [auth IB], TD [auth NB], WF [auth SB]	237	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for F1RXW0 (Sus scrofa) Explore F1RXW0 Go to UniProtKB: F1RXW0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	F1RXW0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image

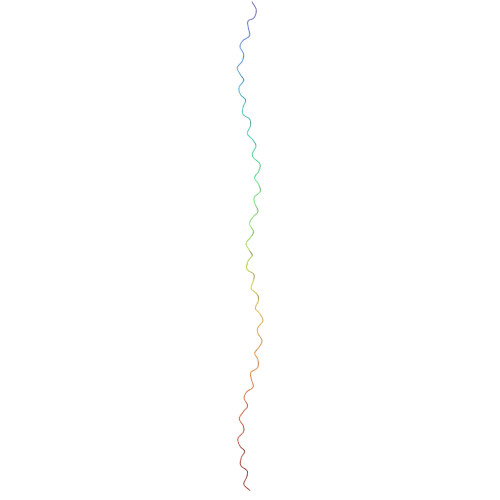

Collagen alpha-2(V) chain preproprotein	O [auth EB], RB [auth JB], UD [auth OB], XF [auth TB]	76	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for F1RXW0 (Sus scrofa) Explore F1RXW0 Go to UniProtKB: F1RXW0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	F1RXW0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen type II alpha 1 chain	AG [auth PF] EA [auth AG] FA [auth AH] GA [auth AI] HC [auth FG] AG [auth PF], EA [auth AG], FA [auth AH], GA [auth AI], HC [auth FG], IC [auth FH], JC [auth FI], KE [auth KG], LE [auth KH], ME [auth KI], NG [auth PG], OG [auth PH], P [auth AD], PG [auth PI], Q [auth AE], R [auth AF], SB [auth FD], TB [auth FE], UB [auth FF], VD [auth KD], WD [auth KE], XD [auth KF], YF [auth PD], ZF [auth PE]	169	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1U0L9 (Sus scrofa) Explore A0A8D1U0L9 Go to UniProtKB: A0A8D1U0L9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1U0L9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen type II alpha 1 chain	AE [auth LF] BG [auth QD] CG [auth QE] DG [auth QF] HA [auth BG] AE [auth LF], BG [auth QD], CG [auth QE], DG [auth QF], HA [auth BG], IA [auth BH], JA [auth BI], KC [auth GG], LC [auth GH], MC [auth GI], NE [auth LG], OE [auth LH], PE [auth LI], QG, RG [auth QH], S [auth BD], SG [auth QI], T [auth BE], U [auth BF], VB [auth GD], WB [auth GE], XB [auth GF], YD [auth LD], ZD [auth LE]	248	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1U0L9 (Sus scrofa) Explore A0A8D1U0L9 Go to UniProtKB: A0A8D1U0L9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1U0L9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen type II alpha 1 chain	AC [auth HF] BE [auth MD] CE [auth ME] DE [auth MF] EG [auth RD] AC [auth HF], BE [auth MD], CE [auth ME], DE [auth MF], EG [auth RD], FG [auth RE], GG [auth RF], KA [auth CG], LA [auth CH], MA [auth CI], NC [auth HG], OC [auth HH], PC [auth HI], QE [auth MG], RE [auth MH], SE [auth MI], TG [auth RG], UG [auth RH], V [auth CD], VG [auth RI], W [auth CE], X [auth CF], YB [auth HD], ZB [auth HE]	223	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1VPS8 (Sus scrofa) Explore A0A8D1VPS8 Go to UniProtKB: A0A8D1VPS8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1VPS8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 19
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen type II alpha 1 chain	AA [auth DF] BC [auth ID] CC [auth IE] DC [auth IF] EE [auth ND] AA [auth DF], BC [auth ID], CC [auth IE], DC [auth IF], EE [auth ND], FE [auth NE], GE [auth NF], HG [auth SD], IG [auth SE], JG [auth SF], NA [auth DG], OA [auth DH], PA [auth DI], QC [auth IG], RC [auth IH], SC [auth II], TE [auth NG], UE [auth NH], VE [auth NI], WG [auth SG], XG [auth SH], Y [auth DD], YG [auth SI], Z [auth DE]	237	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1U0L9 (Sus scrofa) Explore A0A8D1U0L9 Go to UniProtKB: A0A8D1U0L9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1U0L9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 20
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen type II alpha 1 chain	AH [auth TH] BA [auth ED] BH [auth TI] CA [auth EE] DA [auth EF] AH [auth TH], BA [auth ED], BH [auth TI], CA [auth EE], DA [auth EF], EC [auth JD], FC [auth JE], GC [auth JF], HE [auth OD], IE [auth OE], JE [auth OF], KG [auth TD], LG [auth TE], MG [auth TF], QA [auth EG], RA [auth EH], SA [auth EI], TC [auth JG], UC [auth JH], VC [auth JI], WE [auth OG], XE [auth OH], YE [auth OI], ZG [auth TG]	162	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1U0L9 (Sus scrofa) Explore A0A8D1U0L9 Go to UniProtKB: A0A8D1U0L9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1U0L9
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 21
Molecule	Chains	Sequence Length	Organism	Details	Image

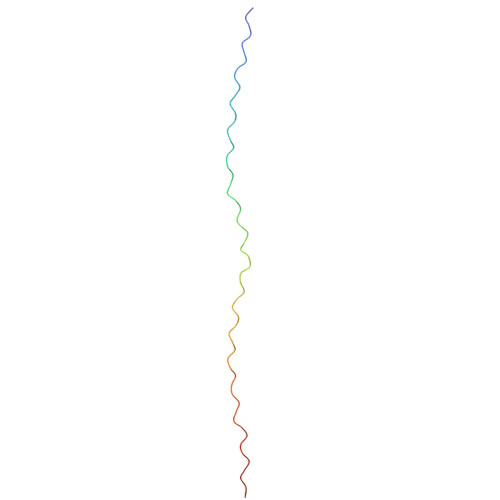

Collagen type IX alpha 1 chain	CH [auth JJ], TA [auth AJ], WC [auth DJ], ZE [auth GJ]	58	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8X9AEQ8 (Sus scrofa) Explore A0A8X9AEQ8 Go to UniProtKB: A0A8X9AEQ8
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8X9AEQ8
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 22
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen alpha-1(IX) chain	AF [auth HJ], DH [auth KJ], UA [auth BJ], XC [auth EJ]	231	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D0XSJ2 (Sus scrofa) Explore A0A8D0XSJ2 Go to UniProtKB: A0A8D0XSJ2
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D0XSJ2
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 23
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen alpha-1(IX) chain	BF [auth IJ], EH [auth LJ], VA [auth CJ], YC [auth FJ]	171	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1PQ72 (Sus scrofa) Explore A0A8D1PQ72 Go to UniProtKB: A0A8D1PQ72
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1PQ72
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 24
Molecule	Chains	Sequence Length	Organism	Details	Image

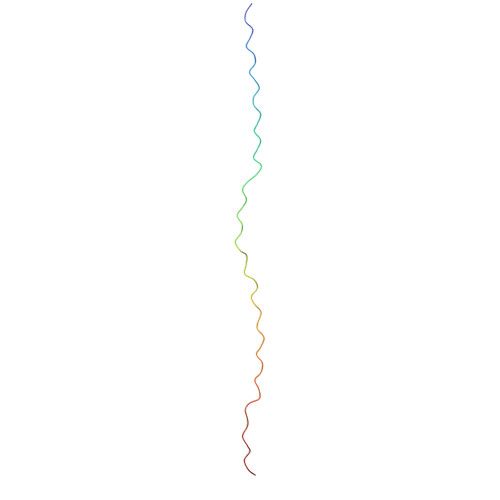

Collagen type IX alpha 2 chain	CF [auth GK], FH [auth JK], WA [auth AK], ZC [auth DK]	58	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D0V1I3 (Sus scrofa) Explore A0A8D0V1I3 Go to UniProtKB: A0A8D0V1I3
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D0V1I3
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 25
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen type IX alpha 2 chain	AD [auth EK], DF [auth HK], GH [auth KK], XA [auth BK]	232	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A4X1VU67 (Sus scrofa) Explore A0A4X1VU67 Go to UniProtKB: A0A4X1VU67
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A4X1VU67
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 26
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen type IX alpha 2 chain	BD [auth FK], EF [auth IK], HH [auth LK], YA [auth CK]	170	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A4X1VU67 (Sus scrofa) Explore A0A4X1VU67 Go to UniProtKB: A0A4X1VU67
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A4X1VU67
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 27
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen alpha-3(IX) chain	CD [auth DL], FF [auth GL], IH [auth JL], ZA [auth AL]	58	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1N974 (Sus scrofa) Explore A0A8D1N974 Go to UniProtKB: A0A8D1N974
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1N974
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 28
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen alpha-3(IX) chain	AB [auth BL], DD [auth EL], GF [auth HL], JH [auth KL]	232	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A4X1SJL5 (Sus scrofa) Explore A0A4X1SJL5 Go to UniProtKB: A0A4X1SJL5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A4X1SJL5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 29
Molecule	Chains	Sequence Length	Organism	Details	Image
Collagen alpha-3(IX) chain	BB [auth CL], ED [auth FL], HF [auth IL], KH [auth LL]	170	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D1N974 (Sus scrofa) Explore A0A8D1N974 Go to UniProtKB: A0A8D1N974
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D1N974
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 30
Molecule	Chains	Sequence Length	Organism	Details	Image
Opticin	CB [auth AM], FD [auth BM], IF [auth CM], LH [auth DM]	210	Sus scrofa	Mutation(s): 0
UniProt
Find proteins for A0A8D0IR51 (Sus scrofa) Explore A0A8D0IR51 Go to UniProtKB: A0A8D0IR51
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8D0IR51
Sequence Annotations Expand
Reference Sequence

Oligosaccharides

Help

Entity ID: 31
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
alpha-D-glucopyranose-(1-2)-beta-D-galactopyranose	AI [auth Qa], AJ [auth De], AK [auth Li], AL [auth ri], AM [auth fb], AI [auth Qa], AJ [auth De], AK [auth Li], AL [auth ri], AM [auth fb], AN [auth Pf], AO [auth Zj], AP [auth Mc], AQ [auth sc], AR [auth Hk], AS [auth nk], AT [auth ad], AU [auth Lh], AV [auth Tl], BI [auth Ra], BJ [auth Ee], BK [auth Mi], BL [auth Ab], BM [auth hb], BN [auth Rf], BO [auth bj], BP [auth Nc], BQ [auth Ag], BR [auth Ik], BS [auth ok], BT [auth cd], BU [auth Mh], BV [auth Ul], CI [auth Ta], CJ [auth Ge], CK [auth Ni], CL [auth Bb], CM [auth jb], CN [auth Sf], CO [auth cj], CP [auth Oc], CQ [auth Bg], CR [auth Jk], CS [auth pk], CT [auth dd], CU [auth Nh], CV [auth Xl], DI [auth Ua], DJ [auth He], DK [auth Oi], DL [auth Cb], DM [auth kb], DN [auth Vf], DO [auth dj], DP [auth Pc], DQ [auth Cg], DR [auth Kk], DS [auth qk], DT [auth ed], DU [auth Oh], DV [auth Yl], EI [auth Va], EJ [auth Ie], EK [auth Pi], EL [auth Eb], EM [auth lb], EN [auth Wf], EO [auth ej], EP [auth Qc], EQ [auth Dg], ER [auth Lk], ES [auth rk], ET [auth fd], EU [auth Ph], EV [auth Zl], FI [auth Ya], FJ [auth Je], FK [auth Qi], FL [auth Gb], FM [auth mb], FN [auth Aj], FO [auth gj], FP [auth Rc], FQ [auth Eg], FR [auth Mk], FS [auth Ad], FT [auth hd], FU [auth Rh], FV [auth bl], GI [auth Za], GJ [auth Ke], GK [auth Si], GL [auth Hb], GM [auth nb], GN [auth Bj], GO [auth ij], GP [auth Tc], GQ [auth Gg], GR [auth Nk], GS [auth Bd], GT [auth jd], GU [auth Sh], GV [auth cl], HI [auth aa], HJ [auth Le], HK [auth Ti], HL [auth Ib], HM [auth ob], HN [auth Cj], HO [auth jj], HP [auth Uc], HQ [auth Hg], HR [auth Ok], HS [auth Cd], HT [auth kd], HU [auth Vh], HV [auth dl], II [auth ca], IJ [auth Me], IK [auth Ui], IL [auth Jb], IM [auth pb], IN [auth Dj], IO [auth kj], IP [auth Vc], IQ [auth Ig], IR [auth Pk], IS [auth Ed], IT [auth ld], IU [auth Wh], IV [auth el], JI [auth da], JJ [auth Ne], JK [auth Xi], JL [auth Kb], JM [auth qb], JN [auth Fj], JO [auth lj], JP [auth Yc], JQ [auth Jg], JR [auth Qk], JS [auth Gd], JT [auth md], JU [auth Al], JV [auth gl], KI [auth ea], KJ [auth Oe], KK [auth Yi], KL [auth Lb], KM [auth rb], KN [auth Gj], KO [auth mj], KP [auth Zc], KQ [auth Kg], KR [auth Sk], KS [auth Hd], KT [auth nd], KU [auth Bl], KV [auth il], LI [auth fa], LJ [auth Pe], LK [auth Zi], LL [auth Mb], LM [auth sb], LN [auth Hj], LO [auth nj], LP [auth ac], LQ [auth Lg], LR [auth Tk], LS [auth Id], LT [auth od], LU [auth Cl], LV [auth jl], MH [auth Aa], MI [auth ha], MJ [auth Re], MK [auth bi], ML [auth Nb], MM [auth Af], MN [auth Ij], MO [auth oj], MP [auth cc], MQ [auth Mg], MR [auth Uk], MS [auth Jd], MT [auth pd], MU [auth Dl], MV [auth kl], NH [auth Ba], NI [auth ja], NJ [auth Se], NK [auth ci], NL [auth Ob], NM [auth Bf], NN [auth Jj], NO [auth pj], NP [auth dc], NQ [auth Ng], NR [auth Xk], NS [auth Kd], NT [auth qd], NU [auth Fl], NV [auth ll], OH [auth Ca], OI [auth ka], OJ [auth Ve], OK [auth di], OL [auth Pb], OM [auth Cf], ON [auth Kj], OO [auth qj], OP [auth ec], OQ [auth Og], OR [auth Yk], OS [auth Ld], OT [auth rd], OU [auth Gl], OV [auth ml], PH [auth Ea], PI [auth la], PJ [auth We], PK [auth ei], PL [auth Qb], PM [auth Df], PN [auth Lj], PO [auth rj], PP [auth fc], PQ [auth Pg], PR [auth Zk], PS [auth Md], PT [auth sd], PU [auth Hl], PV [auth nl], QH [auth Ga], QI [auth ma], QJ [auth Ai], QK [auth gi], QL [auth Rb], QM [auth Ef], QN [auth Mj], QO [auth Ac], QP [auth hc], QQ [auth Rg], QR [auth bk], QS [auth Nd], QT [auth Ah], QU [auth Il], QV [auth ol], RH [auth Ha], RI [auth na], RJ [auth Bi], RK [auth ii], RL [auth Tb], RM [auth Gf], RN [auth Nj], RO [auth Bc], RP [auth jc], RQ [auth Sg], RR [auth ck], RS [auth Od], RT [auth Bh], RU [auth Jl], RV [auth pl], SH [auth Ia], SI [auth oa], SJ [auth Ci], SK [auth ji], SL [auth Ub], SM [auth Hf], SN [auth Oj], SO [auth Cc], SP [auth kc], SQ [auth Vg], SR [auth dk], SS [auth Pd], ST [auth Ch], SU [auth Kl], SV [auth ql], TH [auth Ja], TI [auth pa], TJ [auth Di], TK [auth ki], TL [auth Vb], TM [auth If], TN [auth Pj], TO [auth Ec], TP [auth lc], TQ [auth Wg], TR [auth ek], TS [auth Qd], TT [auth Dh], TU [auth Ll], TV [auth rl], UH [auth Ka], UI [auth qa], UJ [auth Fi], UK [auth li], UL [auth Yb], UM [auth Jf], UN [auth Qj], UO [auth Gc], UP [auth mc], UQ [auth Ak], UR [auth gk], US [auth Rd], UT [auth Eh], UU [auth Ml], VH [auth La], VI [auth ra], VJ [auth Gi], VK [auth mi], VL [auth Zb], VM [auth Kf], VN [auth Sj], VO [auth Hc], VP [auth nc], VQ [auth Bk], VR [auth ik], VS [auth Td], VT [auth Gh], VU [auth Nl], WH [auth Ma], WI [auth sa], WJ [auth Hi], WK [auth ni], WL [auth ab], WM [auth Lf], WN [auth Tj], WO [auth Ic], WP [auth oc], WQ [auth Ck], WR [auth jk], WS [auth Ud], WT [auth Hh], WU [auth Ol], XH [auth Na], XI [auth Ae], XJ [auth Ii], XK [auth oi], XL [auth cb], XM [auth Mf], XN [auth Uj], XO [auth Jc], XP [auth pc], XQ [auth Dk], XR [auth kk], XS [auth Vd], XT [auth Ih], XU [auth Pl], YH [auth Oa], YI [auth Be], YJ [auth Ji], YK [auth pi], YL [auth db], YM [auth Nf], YN [auth Xj], YO [auth Kc], YP [auth qc], YQ [auth Fk], YR [auth lk], YS [auth Yd], YT [auth Jh], YU [auth Ql], ZH [auth Pa], ZI [auth Ce], ZJ [auth Ki], ZK [auth qi], ZL [auth eb], ZM [auth Of], ZN [auth Yj], ZO [auth Lc], ZP [auth rc], ZQ [auth Gk], ZR [auth mk], ZS [auth Zd], ZT [auth Kh], ZU [auth Sl]	2		N/A	Interactions Focus chain AI [auth Qa] Focus chain AJ [auth De] Focus chain AK [auth Li] Focus chain AL [auth ri] Focus chain AM [auth fb] Focus chain AN [auth Pf] Focus chain AO [auth Zj] Focus chain AP [auth Mc] Focus chain AQ [auth sc] Focus chain AR [auth Hk] Focus chain AS [auth nk] Focus chain AT [auth ad] Focus chain AU [auth Lh] Focus chain AV [auth Tl] Focus chain BI [auth Ra] Focus chain BJ [auth Ee] Focus chain BK [auth Mi] Focus chain BL [auth Ab] Focus chain BM [auth hb] Focus chain BN [auth Rf] Focus chain BO [auth bj] Focus chain BP [auth Nc] Focus chain BQ [auth Ag] Focus chain BR [auth Ik] Focus chain BS [auth ok] Focus chain BT [auth cd] Focus chain BU [auth Mh] Focus chain BV [auth Ul] Focus chain CI [auth Ta] Focus chain CJ [auth Ge] Focus chain CK [auth Ni] Focus chain CL [auth Bb] Focus chain CM [auth jb] Focus chain CN [auth Sf] Focus chain CO [auth cj] Focus chain CP [auth Oc] Focus chain CQ [auth Bg] Focus chain CR [auth Jk] Focus chain CS [auth pk] Focus chain CT [auth dd] Focus chain CU [auth Nh] Focus chain CV [auth Xl] Focus chain DI [auth Ua] Focus chain DJ [auth He] Focus chain DK [auth Oi] Focus chain DL [auth Cb] Focus chain DM [auth kb] Focus chain DN [auth Vf] Focus chain DO [auth dj] Focus chain DP [auth Pc] Focus chain DQ [auth Cg] Focus chain DR [auth Kk] Focus chain DS [auth qk] Focus chain DT [auth ed] Focus chain DU [auth Oh] Focus chain DV [auth Yl] Focus chain EI [auth Va] Focus chain EJ [auth Ie] Focus chain EK [auth Pi] Focus chain EL [auth Eb] Focus chain EM [auth lb] Focus chain EN [auth Wf] Focus chain EO [auth ej] Focus chain EP [auth Qc] Focus chain EQ [auth Dg] Focus chain ER [auth Lk] Focus chain ES [auth rk] Focus chain ET [auth fd] Focus chain EU [auth Ph] Focus chain EV [auth Zl] Focus chain FI [auth Ya] Focus chain FJ [auth Je] Focus chain FK [auth Qi] Focus chain FL [auth Gb] Focus chain FM [auth mb] Focus chain FN [auth Aj] Focus chain FO [auth gj] Focus chain FP [auth Rc] Focus chain FQ [auth Eg] Focus chain FR [auth Mk] Focus chain FS [auth Ad] Focus chain FT [auth hd] Focus chain FU [auth Rh] Focus chain FV [auth bl] Focus chain GI [auth Za] Focus chain GJ [auth Ke] Focus chain GK [auth Si] Focus chain GL [auth Hb] Focus chain GM [auth nb] Focus chain GN [auth Bj] Focus chain GO [auth ij] Focus chain GP [auth Tc] Focus chain GQ [auth Gg] Focus chain GR [auth Nk] Focus chain GS [auth Bd] Focus chain GT [auth jd] Focus chain GU [auth Sh] Focus chain GV [auth cl] Focus chain HI [auth aa] Focus chain HJ [auth Le] Focus chain HK [auth Ti] Focus chain HL [auth Ib] Focus chain HM [auth ob] Focus chain HN [auth Cj] Focus chain HO [auth jj] Focus chain HP [auth Uc] Focus chain HQ [auth Hg] Focus chain HR [auth Ok] Focus chain HS [auth Cd] Focus chain HT [auth kd] Focus chain HU [auth Vh] Focus chain HV [auth dl] Focus chain II [auth ca] Focus chain IJ [auth Me] Focus chain IK [auth Ui] Focus chain IL [auth Jb] Focus chain IM [auth pb] Focus chain IN [auth Dj] Focus chain IO [auth kj] Focus chain IP [auth Vc] Focus chain IQ [auth Ig] Focus chain IR [auth Pk] Focus chain IS [auth Ed] Focus chain IT [auth ld] Focus chain IU [auth Wh] Focus chain IV [auth el] Focus chain JI [auth da] Focus chain JJ [auth Ne] Focus chain JK [auth Xi] Focus chain JL [auth Kb] Focus chain JM [auth qb] Focus chain JN [auth Fj] Focus chain JO [auth lj] Focus chain JP [auth Yc] Focus chain JQ [auth Jg] Focus chain JR [auth Qk] Focus chain JS [auth Gd] Focus chain JT [auth md] Focus chain JU [auth Al] Focus chain JV [auth gl] Focus chain KI [auth ea] Focus chain KJ [auth Oe] Focus chain KK [auth Yi] Focus chain KL [auth Lb] Focus chain KM [auth rb] Focus chain KN [auth Gj] Focus chain KO [auth mj] Focus chain KP [auth Zc] Focus chain KQ [auth Kg] Focus chain KR [auth Sk] Focus chain KS [auth Hd] Focus chain KT [auth nd] Focus chain KU [auth Bl] Focus chain KV [auth il] Focus chain LI [auth fa] Focus chain LJ [auth Pe] Focus chain LK [auth Zi] Focus chain LL [auth Mb] Focus chain LM [auth sb] Focus chain LN [auth Hj] Focus chain LO [auth nj] Focus chain LP [auth ac] Focus chain LQ [auth Lg] Focus chain LR [auth Tk] Focus chain LS [auth Id] Focus chain LT [auth od] Focus chain LU [auth Cl] Focus chain LV [auth jl] Focus chain MH [auth Aa] Focus chain MI [auth ha] Focus chain MJ [auth Re] Focus chain MK [auth bi] Focus chain ML [auth Nb] Focus chain MM [auth Af] Focus chain MN [auth Ij] Focus chain MO [auth oj] Focus chain MP [auth cc] Focus chain MQ [auth Mg] Focus chain MR [auth Uk] Focus chain MS [auth Jd] Focus chain MT [auth pd] Focus chain MU [auth Dl] Focus chain MV [auth kl] Focus chain NH [auth Ba] Focus chain NI [auth ja] Focus chain NJ [auth Se] Focus chain NK [auth ci] Focus chain NL [auth Ob] Focus chain NM [auth Bf] Focus chain NN [auth Jj] Focus chain NO [auth pj] Focus chain NP [auth dc] Focus chain NQ [auth Ng] Focus chain NR [auth Xk] Focus chain NS [auth Kd] Focus chain NT [auth qd] Focus chain NU [auth Fl] Focus chain NV [auth ll] Focus chain OH [auth Ca] Focus chain OI [auth ka] Focus chain OJ [auth Ve] Focus chain OK [auth di] Focus chain OL [auth Pb] Focus chain OM [auth Cf] Focus chain ON [auth Kj] Focus chain OO [auth qj] Focus chain OP [auth ec] Focus chain OQ [auth Og] Focus chain OR [auth Yk] Focus chain OS [auth Ld] Focus chain OT [auth rd] Focus chain OU [auth Gl] Focus chain OV [auth ml] Focus chain PH [auth Ea] Focus chain PI [auth la] Focus chain PJ [auth We] Focus chain PK [auth ei] Focus chain PL [auth Qb] Focus chain PM [auth Df] Focus chain PN [auth Lj] Focus chain PO [auth rj] Focus chain PP [auth fc] Focus chain PQ [auth Pg] Focus chain PR [auth Zk] Focus chain PS [auth Md] Focus chain PT [auth sd] Focus chain PU [auth Hl] Focus chain PV [auth nl] Focus chain QH [auth Ga] Focus chain QI [auth ma] Focus chain QJ [auth Ai] Focus chain QK [auth gi] Focus chain QL [auth Rb] Focus chain QM [auth Ef] Focus chain QN [auth Mj] Focus chain QO [auth Ac] Focus chain QP [auth hc] Focus chain QQ [auth Rg] Focus chain QR [auth bk] Focus chain QS [auth Nd] Focus chain QT [auth Ah] Focus chain QU [auth Il] Focus chain QV [auth ol] Focus chain RH [auth Ha] Focus chain RI [auth na] Focus chain RJ [auth Bi] Focus chain RK [auth ii] Focus chain RL [auth Tb] Focus chain RM [auth Gf] Focus chain RN [auth Nj] Focus chain RO [auth Bc] Focus chain RP [auth jc] Focus chain RQ [auth Sg] Focus chain RR [auth ck] Focus chain RS [auth Od] Focus chain RT [auth Bh] Focus chain RU [auth Jl] Focus chain RV [auth pl] Focus chain SH [auth Ia] Focus chain SI [auth oa] Focus chain SJ [auth Ci] Focus chain SK [auth ji] Focus chain SL [auth Ub] Focus chain SM [auth Hf] Focus chain SN [auth Oj] Focus chain SO [auth Cc] Focus chain SP [auth kc] Focus chain SQ [auth Vg] Focus chain SR [auth dk] Focus chain SS [auth Pd] Focus chain ST [auth Ch] Focus chain SU [auth Kl] Focus chain SV [auth ql] Focus chain TH [auth Ja] Focus chain TI [auth pa] Focus chain TJ [auth Di] Focus chain TK [auth ki] Focus chain TL [auth Vb] Focus chain TM [auth If] Focus chain TN [auth Pj] Focus chain TO [auth Ec] Focus chain TP [auth lc] Focus chain TQ [auth Wg] Focus chain TR [auth ek] Focus chain TS [auth Qd] Focus chain TT [auth Dh] Focus chain TU [auth Ll] Focus chain TV [auth rl] Focus chain UH [auth Ka] Focus chain UI [auth qa] Focus chain UJ [auth Fi] Focus chain UK [auth li] Focus chain UL [auth Yb] Focus chain UM [auth Jf] Focus chain UN [auth Qj] Focus chain UO [auth Gc] Focus chain UP [auth mc] Focus chain UQ [auth Ak] Focus chain UR [auth gk] Focus chain US [auth Rd] Focus chain UT [auth Eh] Focus chain UU [auth Ml] Focus chain VH [auth La] Focus chain VI [auth ra] Focus chain VJ [auth Gi] Focus chain VK [auth mi] Focus chain VL [auth Zb] Focus chain VM [auth Kf] Focus chain VN [auth Sj] Focus chain VO [auth Hc] Focus chain VP [auth nc] Focus chain VQ [auth Bk] Focus chain VR [auth ik] Focus chain VS [auth Td] Focus chain VT [auth Gh] Focus chain VU [auth Nl] Focus chain WH [auth Ma] Focus chain WI [auth sa] Focus chain WJ [auth Hi] Focus chain WK [auth ni] Focus chain WL [auth ab] Focus chain WM [auth Lf] Focus chain WN [auth Tj] Focus chain WO [auth Ic] Focus chain WP [auth oc] Focus chain WQ [auth Ck] Focus chain WR [auth jk] Focus chain WS [auth Ud] Focus chain WT [auth Hh] Focus chain WU [auth Ol] Focus chain XH [auth Na] Focus chain XI [auth Ae] Focus chain XJ [auth Ii] Focus chain XK [auth oi] Focus chain XL [auth cb] Focus chain XM [auth Mf] Focus chain XN [auth Uj] Focus chain XO [auth Jc] Focus chain XP [auth pc] Focus chain XQ [auth Dk] Focus chain XR [auth kk] Focus chain XS [auth Vd] Focus chain XT [auth Ih] Focus chain XU [auth Pl] Focus chain YH [auth Oa] Focus chain YI [auth Be] Focus chain YJ [auth Ji] Focus chain YK [auth pi] Focus chain YL [auth db] Focus chain YM [auth Nf] Focus chain YN [auth Xj] Focus chain YO [auth Kc] Focus chain YP [auth qc] Focus chain YQ [auth Fk] Focus chain YR [auth lk] Focus chain YS [auth Yd] Focus chain YT [auth Jh] Focus chain YU [auth Ql] Focus chain ZH [auth Pa] Focus chain ZI [auth Ce] Focus chain ZJ [auth Ki] Focus chain ZK [auth qi] Focus chain ZL [auth eb] Focus chain ZM [auth Of] Focus chain ZN [auth Yj] Focus chain ZO [auth Lc] Focus chain ZP [auth rc] Focus chain ZQ [auth Gk] Focus chain ZR [auth mk] Focus chain ZS [auth Zd] Focus chain ZT [auth Kh] Focus chain ZU [auth Sl] Interactions & Density Focus chain AI [auth Qa] Focus chain AJ [auth De] Focus chain AK [auth Li] Focus chain AL [auth ri] Focus chain AM [auth fb] Focus chain AN [auth Pf] Focus chain AO [auth Zj] Focus chain AP [auth Mc] Focus chain AQ [auth sc] Focus chain AR [auth Hk] Focus chain AS [auth nk] Focus chain AT [auth ad] Focus chain AU [auth Lh] Focus chain AV [auth Tl] Focus chain BI [auth Ra] Focus chain BJ [auth Ee] Focus chain BK [auth Mi] Focus chain BL [auth Ab] Focus chain BM [auth hb] Focus chain BN [auth Rf] Focus chain BO [auth bj] Focus chain BP [auth Nc] Focus chain BQ [auth Ag] Focus chain BR [auth Ik] Focus chain BS [auth ok] Focus chain BT [auth cd] Focus chain BU [auth Mh] Focus chain BV [auth Ul] Focus chain CI [auth Ta] Focus chain CJ [auth Ge] Focus chain CK [auth Ni] Focus chain CL [auth Bb] Focus chain CM [auth jb] Focus chain CN [auth Sf] Focus chain CO [auth cj] Focus chain CP [auth Oc] Focus chain CQ [auth Bg] Focus chain CR [auth Jk] Focus chain CS [auth pk] Focus chain CT [auth dd] Focus chain CU [auth Nh] Focus chain CV [auth Xl] Focus chain DI [auth Ua] Focus chain DJ [auth He] Focus chain DK [auth Oi] Focus chain DL [auth Cb] Focus chain DM [auth kb] Focus chain DN [auth Vf] Focus chain DO [auth dj] Focus chain DP [auth Pc] Focus chain DQ [auth Cg] Focus chain DR [auth Kk] Focus chain DS [auth qk] Focus chain DT [auth ed] Focus chain DU [auth Oh] Focus chain DV [auth Yl] Focus chain EI [auth Va] Focus chain EJ [auth Ie] Focus chain EK [auth Pi] Focus chain EL [auth Eb] Focus chain EM [auth lb] Focus chain EN [auth Wf] Focus chain EO [auth ej] Focus chain EP [auth Qc] Focus chain EQ [auth Dg] Focus chain ER [auth Lk] Focus chain ES [auth rk] Focus chain ET [auth fd] Focus chain EU [auth Ph] Focus chain EV [auth Zl] Focus chain FI [auth Ya] Focus chain FJ [auth Je] Focus chain FK [auth Qi] Focus chain FL [auth Gb] Focus chain FM [auth mb] Focus chain FN [auth Aj] Focus chain FO [auth gj] Focus chain FP [auth Rc] Focus chain FQ [auth Eg] Focus chain FR [auth Mk] Focus chain FS [auth Ad] Focus chain FT [auth hd] Focus chain FU [auth Rh] Focus chain FV [auth bl] Focus chain GI [auth Za] Focus chain GJ [auth Ke] Focus chain GK [auth Si] Focus chain GL [auth Hb] Focus chain GM [auth nb] Focus chain GN [auth Bj] Focus chain GO [auth ij] Focus chain GP [auth Tc] Focus chain GQ [auth Gg] Focus chain GR [auth Nk] Focus chain GS [auth Bd] Focus chain GT [auth jd] Focus chain GU [auth Sh] Focus chain GV [auth cl] Focus chain HI [auth aa] Focus chain HJ [auth Le] Focus chain HK [auth Ti] Focus chain HL [auth Ib] Focus chain HM [auth ob] Focus chain HN [auth Cj] Focus chain HO [auth jj] Focus chain HP [auth Uc] Focus chain HQ [auth Hg] Focus chain HR [auth Ok] Focus chain HS [auth Cd] Focus chain HT [auth kd] Focus chain HU [auth Vh] Focus chain HV [auth dl] Focus chain II [auth ca] Focus chain IJ [auth Me] Focus chain IK [auth Ui] Focus chain IL [auth Jb] Focus chain IM [auth pb] Focus chain IN [auth Dj] Focus chain IO [auth kj] Focus chain IP [auth Vc] Focus chain IQ [auth Ig] Focus chain IR [auth Pk] Focus chain IS [auth Ed] Focus chain IT [auth ld] Focus chain IU [auth Wh] Focus chain IV [auth el] Focus chain JI [auth da] Focus chain JJ [auth Ne] Focus chain JK [auth Xi] Focus chain JL [auth Kb] Focus chain JM [auth qb] Focus chain JN [auth Fj] Focus chain JO [auth lj] Focus chain JP [auth Yc] Focus chain JQ [auth Jg] Focus chain JR [auth Qk] Focus chain JS [auth Gd] Focus chain JT [auth md] Focus chain JU [auth Al] Focus chain JV [auth gl] Focus chain KI [auth ea] Focus chain KJ [auth Oe] Focus chain KK [auth Yi] Focus chain KL [auth Lb] Focus chain KM [auth rb] Focus chain KN [auth Gj] Focus chain KO [auth mj] Focus chain KP [auth Zc] Focus chain KQ [auth Kg] Focus chain KR [auth Sk] Focus chain KS [auth Hd] Focus chain KT [auth nd] Focus chain KU [auth Bl] Focus chain KV [auth il] Focus chain LI [auth fa] Focus chain LJ [auth Pe] Focus chain LK [auth Zi] Focus chain LL [auth Mb] Focus chain LM [auth sb] Focus chain LN [auth Hj] Focus chain LO [auth nj] Focus chain LP [auth ac] Focus chain LQ [auth Lg] Focus chain LR [auth Tk] Focus chain LS [auth Id] Focus chain LT [auth od] Focus chain LU [auth Cl] Focus chain LV [auth jl] Focus chain MH [auth Aa] Focus chain MI [auth ha] Focus chain MJ [auth Re] Focus chain MK [auth bi] Focus chain ML [auth Nb] Focus chain MM [auth Af] Focus chain MN [auth Ij] Focus chain MO [auth oj] Focus chain MP [auth cc] Focus chain MQ [auth Mg] Focus chain MR [auth Uk] Focus chain MS [auth Jd] Focus chain MT [auth pd] Focus chain MU [auth Dl] Focus chain MV [auth kl] Focus chain NH [auth Ba] Focus chain NI [auth ja] Focus chain NJ [auth Se] Focus chain NK [auth ci] Focus chain NL [auth Ob] Focus chain NM [auth Bf] Focus chain NN [auth Jj] Focus chain NO [auth pj] Focus chain NP [auth dc] Focus chain NQ [auth Ng] Focus chain NR [auth Xk] Focus chain NS [auth Kd] Focus chain NT [auth qd] Focus chain NU [auth Fl] Focus chain NV [auth ll] Focus chain OH [auth Ca] Focus chain OI [auth ka] Focus chain OJ [auth Ve] Focus chain OK [auth di] Focus chain OL [auth Pb] Focus chain OM [auth Cf] Focus chain ON [auth Kj] Focus chain OO [auth qj] Focus chain OP [auth ec] Focus chain OQ [auth Og] Focus chain OR [auth Yk] Focus chain OS [auth Ld] Focus chain OT [auth rd] Focus chain OU [auth Gl] Focus chain OV [auth ml] Focus chain PH [auth Ea] Focus chain PI [auth la] Focus chain PJ [auth We] Focus chain PK [auth ei] Focus chain PL [auth Qb] Focus chain PM [auth Df] Focus chain PN [auth Lj] Focus chain PO [auth rj] Focus chain PP [auth fc] Focus chain PQ [auth Pg] Focus chain PR [auth Zk] Focus chain PS [auth Md] Focus chain PT [auth sd] Focus chain PU [auth Hl] Focus chain PV [auth nl] Focus chain QH [auth Ga] Focus chain QI [auth ma] Focus chain QJ [auth Ai] Focus chain QK [auth gi] Focus chain QL [auth Rb] Focus chain QM [auth Ef] Focus chain QN [auth Mj] Focus chain QO [auth Ac] Focus chain QP [auth hc] Focus chain QQ [auth Rg] Focus chain QR [auth bk] Focus chain QS [auth Nd] Focus chain QT [auth Ah] Focus chain QU [auth Il] Focus chain QV [auth ol] Focus chain RH [auth Ha] Focus chain RI [auth na] Focus chain RJ [auth Bi] Focus chain RK [auth ii] Focus chain RL [auth Tb] Focus chain RM [auth Gf] Focus chain RN [auth Nj] Focus chain RO [auth Bc] Focus chain RP [auth jc] Focus chain RQ [auth Sg] Focus chain RR [auth ck] Focus chain RS [auth Od] Focus chain RT [auth Bh] Focus chain RU [auth Jl] Focus chain RV [auth pl] Focus chain SH [auth Ia] Focus chain SI [auth oa] Focus chain SJ [auth Ci] Focus chain SK [auth ji] Focus chain SL [auth Ub] Focus chain SM [auth Hf] Focus chain SN [auth Oj] Focus chain SO [auth Cc] Focus chain SP [auth kc] Focus chain SQ [auth Vg] Focus chain SR [auth dk] Focus chain SS [auth Pd] Focus chain ST [auth Ch] Focus chain SU [auth Kl] Focus chain SV [auth ql] Focus chain TH [auth Ja] Focus chain TI [auth pa] Focus chain TJ [auth Di] Focus chain TK [auth ki] Focus chain TL [auth Vb] Focus chain TM [auth If] Focus chain TN [auth Pj] Focus chain TO [auth Ec] Focus chain TP [auth lc] Focus chain TQ [auth Wg] Focus chain TR [auth ek] Focus chain TS [auth Qd] Focus chain TT [auth Dh] Focus chain TU [auth Ll] Focus chain TV [auth rl] Focus chain UH [auth Ka] Focus chain UI [auth qa] Focus chain UJ [auth Fi] Focus chain UK [auth li] Focus chain UL [auth Yb] Focus chain UM [auth Jf] Focus chain UN [auth Qj] Focus chain UO [auth Gc] Focus chain UP [auth mc] Focus chain UQ [auth Ak] Focus chain UR [auth gk] Focus chain US [auth Rd] Focus chain UT [auth Eh] Focus chain UU [auth Ml] Focus chain VH [auth La] Focus chain VI [auth ra] Focus chain VJ [auth Gi] Focus chain VK [auth mi] Focus chain VL [auth Zb] Focus chain VM [auth Kf] Focus chain VN [auth Sj] Focus chain VO [auth Hc] Focus chain VP [auth nc] Focus chain VQ [auth Bk] Focus chain VR [auth ik] Focus chain VS [auth Td] Focus chain VT [auth Gh] Focus chain VU [auth Nl] Focus chain WH [auth Ma] Focus chain WI [auth sa] Focus chain WJ [auth Hi] Focus chain WK [auth ni] Focus chain WL [auth ab] Focus chain WM [auth Lf] Focus chain WN [auth Tj] Focus chain WO [auth Ic] Focus chain WP [auth oc] Focus chain WQ [auth Ck] Focus chain WR [auth jk] Focus chain WS [auth Ud] Focus chain WT [auth Hh] Focus chain WU [auth Ol] Focus chain XH [auth Na] Focus chain XI [auth Ae] Focus chain XJ [auth Ii] Focus chain XK [auth oi] Focus chain XL [auth cb] Focus chain XM [auth Mf] Focus chain XN [auth Uj] Focus chain XO [auth Jc] Focus chain XP [auth pc] Focus chain XQ [auth Dk] Focus chain XR [auth kk] Focus chain XS [auth Vd] Focus chain XT [auth Ih] Focus chain XU [auth Pl] Focus chain YH [auth Oa] Focus chain YI [auth Be] Focus chain YJ [auth Ji] Focus chain YK [auth pi] Focus chain YL [auth db] Focus chain YM [auth Nf] Focus chain YN [auth Xj] Focus chain YO [auth Kc] Focus chain YP [auth qc] Focus chain YQ [auth Fk] Focus chain YR [auth lk] Focus chain YS [auth Yd] Focus chain YT [auth Jh] Focus chain YU [auth Ql] Focus chain ZH [auth Pa] Focus chain ZI [auth Ce] Focus chain ZJ [auth Ki] Focus chain ZK [auth qi] Focus chain ZL [auth eb] Focus chain ZM [auth Of] Focus chain ZN [auth Yj] Focus chain ZO [auth Lc] Focus chain ZP [auth rc] Focus chain ZQ [auth Gk] Focus chain ZR [auth mk] Focus chain ZS [auth Zd] Focus chain ZT [auth Kh] Focus chain ZU [auth Sl]

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
GAL Query on GAL Download:Ideal Coordinates CCD File SDF format, chain BW [auth PB] SDF format, chain VV [auth AB] SDF format, chain XV [auth FB] SDF format, chain ZV [auth KB] MOL2 format, chain BW [auth PB] MOL2 format, chain VV [auth AB] MOL2 format, chain XV [auth FB] MOL2 format, chain ZV [auth KB] mmCIF format, chain BW [auth PB] mmCIF format, chain VV [auth AB] mmCIF format, chain XV [auth FB] mmCIF format, chain ZV [auth KB]	BW [auth PB], VV [auth AB], XV [auth FB], ZV [auth KB]	beta-D-galactopyranose C₆ H₁₂ O₆ WQZGKKKJIJFFOK-FPRJBGLDSA-N		Interactions Focus chain BW [auth PB] Focus chain VV [auth AB] Focus chain XV [auth FB] Focus chain ZV [auth KB] Interactions & Density Focus chain BW [auth PB] Focus chain VV [auth AB] Focus chain XV [auth FB] Focus chain ZV [auth KB]
GLC Query on GLC Download:Ideal Coordinates CCD File SDF format, chain AW [auth RC] SDF format, chain UV [auth CC] SDF format, chain WV [auth HC] SDF format, chain YV [auth MC] MOL2 format, chain AW [auth RC] MOL2 format, chain UV [auth CC] MOL2 format, chain WV [auth HC] MOL2 format, chain YV [auth MC] mmCIF format, chain AW [auth RC] mmCIF format, chain UV [auth CC] mmCIF format, chain WV [auth HC] mmCIF format, chain YV [auth MC]	AW [auth RC], UV [auth CC], WV [auth HC], YV [auth MC]	alpha-D-glucopyranose C₆ H₁₂ O₆ WQZGKKKJIJFFOK-DVKNGEFBSA-N		Interactions Focus chain AW [auth RC] Focus chain UV [auth CC] Focus chain WV [auth HC] Focus chain YV [auth MC] Interactions & Density Focus chain AW [auth RC] Focus chain UV [auth CC] Focus chain WV [auth HC] Focus chain YV [auth MC]
