9WQA | pdb_00009wqa

5-HT2B receptor bound to IHCH-1906 in complex with an antibody obtained by cryo-electron microscopy (cryoEM)

PDB DOI: https://doi.org/10.2210/pdb9WQA/pdb
EM Map EMD-66164: EMDB EMDataResource

Classification: SIGNALING PROTEIN/IMMUNE SYSTEM
Organism(s): Homo sapiens
Expression System: Spodoptera frugiperda
Mutation(s): No

Deposited: 2025-09-10 Released: 2026-09-16
Deposition Author(s): Li, H., Tang, L., Zhang, J., Meng, B., Cao, D., Yu, J., Liu, Z., Wang, S., Cheng, J.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.28 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9WQA

This is version 1.0 of the entry. See complete history.

Literature

Structure-based design of subtype-selective psychedelic analogues

Li, H., Tang, J., Zhang, J., Meng, B., Cao, D., Yu, J., Liu, Z., Wang, S., Cheng, J.

To be published.

Macromolecule Content

Total Structure Weight: 85.76 kDa
Atom Count: 4,782
Modeled Residue Count: 687
Deposited Residue Count: 778
Unique protein chains: 3

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

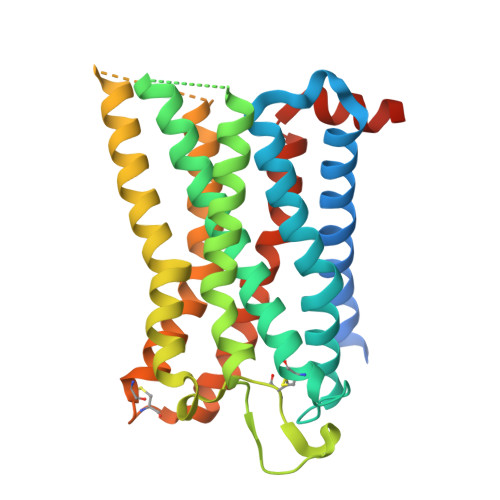

5-hydroxytryptamine receptor 2B	A	318	Homo sapiens	Mutation(s): 0 Gene Names: HTR2B
UniProt & NIH Common Fund Data Resources
Find proteins for P41595 (Homo sapiens) Explore P41595 Go to UniProtKB: P41595
PHAROS: P41595 GTEx: ENSG00000135914
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P41595
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

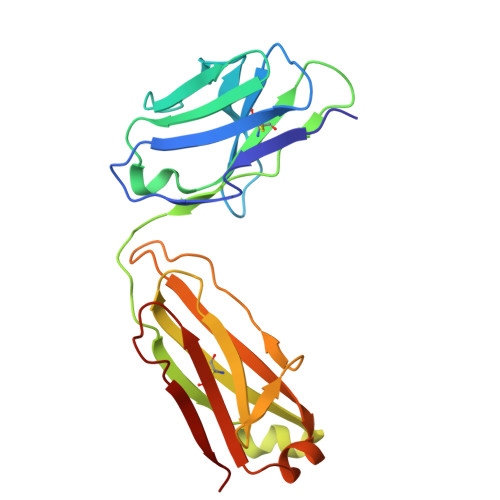

Anti-5-HT2B Fab light chain	B	213	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

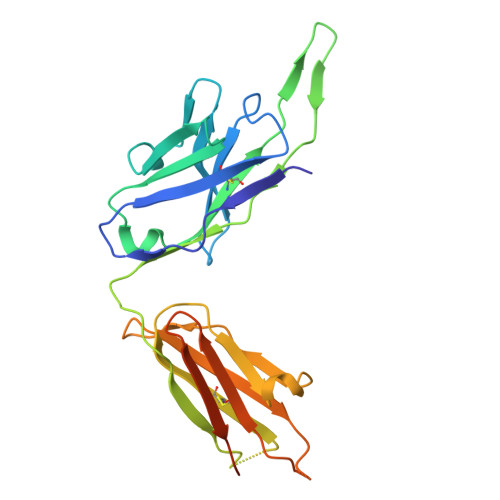

Anti-5-HT2B Fab heavy chain	C	247	Homo sapiens	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1EYE( Subject of Investigation/LOI) Query on A1EYE Download:Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	1-(1,2,3,6-tetrahydropyridin-4-yl)-6,7,8,9-tetrahydro-5~{H}-benzo[7]annulen-4-ol C₁₆ H₂₁ N O ZGCNFQWWIAVUGL-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.28 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX
RECONSTRUCTION	PHENIX

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-16

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2026-09-16
Type: Initial release
