9WH7 | pdb_00009wh7

Crystal Structure of Duck STING bound to 2'3'-cGAMP

PDB DOI: https://doi.org/10.2210/pdb9WH7/pdb

Classification: SIGNALING PROTEIN
Organism(s): Anas platyrhynchos
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-08-26 Released: 2026-03-04
Deposition Author(s): Zhao, Z.Z., Li, X.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.49 Å
R-Value Free:
0.231 (Depositor), 0.229 (DCC)
R-Value Work:
0.194 (Depositor), 0.195 (DCC)
R-Value Observed:
0.196 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9WH7

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Species-Specific Regulation of STING by a C195 Disulfide Tetramer in Duck

Zhao, Z.Z., Li, X.

To be published.

Macromolecule Content

Total Structure Weight: 44.75 kDa
Atom Count: 3,218
Modeled Residue Count: 374
Deposited Residue Count: 376
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

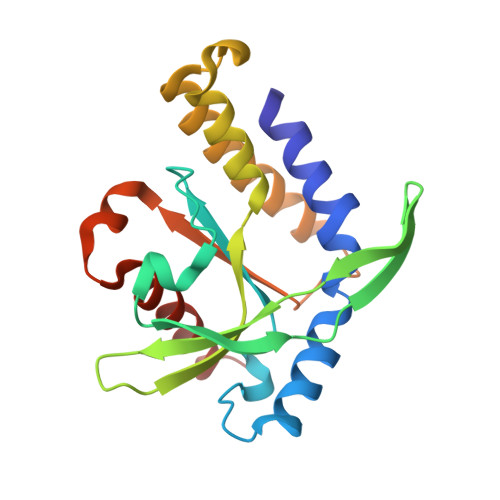

Stimulator of interferon genes protein	A [auth B], B [auth A]	188	Anas platyrhynchos	Mutation(s): 0
UniProt
Find proteins for A0A8B9TBW9 (Anas platyrhynchos) Explore A0A8B9TBW9 Go to UniProtKB: A0A8B9TBW9
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	A0A8B9TBW9
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
1SY (Subject of Investigation/LOI) Query on 1SY Download:Ideal Coordinates CCD File SDF format, chain C [auth B] MOL2 format, chain C [auth B] mmCIF format, chain C [auth B]	C [auth B]	cGAMP C₂₀ H₂₄ N₁₀ O₁₃ P₂ XRILCFTWUCUKJR-INFSMZHSSA-N		Interactions Focus chain C [auth B] Interactions & Density Focus chain C [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.49 Å
R-Value Free: 0.231 (Depositor), 0.229 (DCC)
R-Value Work: 0.194 (Depositor), 0.195 (DCC)
R-Value Observed: 0.196 (Depositor)

Space Group: P 6₅ 2 2

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 83.535	α = 90
b = 83.535	β = 90
c = 353.159	γ = 120

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data scaling
XDS	data reduction
PHENIX	phasing
PDB_EXTRACT	data extraction

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-03-04

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	32373020

Revision History (Full details and data files)

Version 1.0: 2026-03-04
Type: Initial release
