9WDW | pdb_00009wdw

Cryo-EM structure of helicase DruE in the Druantia anti-phage system elucidates its anti-phage mechanism

PDB DOI: https://doi.org/10.2210/pdb9WDW/pdb
EM Map EMD-65908: EMDB EMDataResource

Classification: HYDROLASE
Organism(s): Pseudomonas protegens Pf-5, synthetic construct
Expression System: Escherichia coli 'BL21-Gold(DE3)pLysS AG
Mutation(s): No

Deposited: 2025-08-19 Released: 2026-08-26
Deposition Author(s): Hou, J., He, Y.X., Gui, L.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.36 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of helicase DruE in the Druantia anti-phage system elucidates its anti-phage mechanism

Hou, J., He, Y.X., Gui, L.

To be published.

Macromolecule Content

Total Structure Weight: 465.27 kDa
Atom Count: 31,184
Modeled Residue Count: 3,893
Deposited Residue Count: 4,010
Unique protein chains: 1
Unique nucleic acid chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Helicase	A, B	1,970	Pseudomonas protegens Pf-5	Mutation(s): 0 Gene Names: PFL_3016
UniProt
Find proteins for Q4KCB1 (Pseudomonas fluorescens (strain ATCC BAA-477 / NRRL B-23932 / Pf-5)) Explore Q4KCB1 Go to UniProtKB: Q4KCB1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q4KCB1
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism
Entity ID: 2

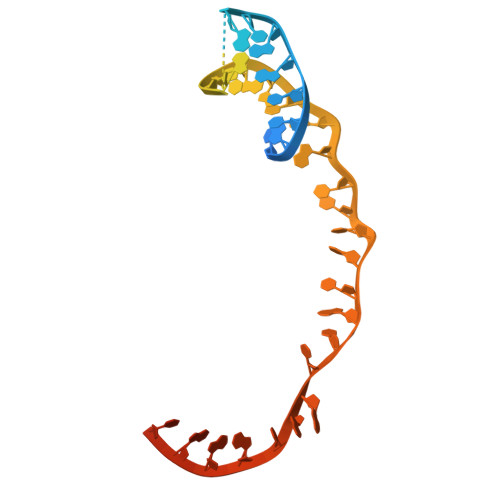

DNA (70-MER)	C	70	synthetic construct
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ANP (Subject of Investigation/LOI) Query on ANP Download:Ideal Coordinates CCD File SDF format, chain H [auth B] MOL2 format, chain H [auth B] mmCIF format, chain H [auth B]	H [auth B]	PHOSPHOAMINOPHOSPHONIC ACID-ADENYLATE ESTER C₁₀ H₁₇ N₆ O₁₂ P₃ PVKSNHVPLWYQGJ-KQYNXXCUSA-N		Interactions Focus chain H [auth B] Interactions & Density Focus chain H [auth B]
ZN (Subject of Investigation/LOI) Query on ZN Download:Ideal Coordinates CCD File SDF format, chain L [auth B] SDF format, chain K [auth B] SDF format, chain J [auth B] SDF format, chain I [auth B] SDF format, chain G [auth A] SDF format, chain F [auth A] SDF format, chain E [auth A] SDF format, chain D [auth A] MOL2 format, chain L [auth B] MOL2 format, chain K [auth B] MOL2 format, chain J [auth B] MOL2 format, chain I [auth B] MOL2 format, chain G [auth A] MOL2 format, chain F [auth A] MOL2 format, chain E [auth A] MOL2 format, chain D [auth A] mmCIF format, chain L [auth B] mmCIF format, chain K [auth B] mmCIF format, chain J [auth B] mmCIF format, chain I [auth B] mmCIF format, chain G [auth A] mmCIF format, chain F [auth A] mmCIF format, chain E [auth A] mmCIF format, chain D [auth A]	D [auth A] E [auth A] F [auth A] G [auth A] I [auth B] D [auth A], E [auth A], F [auth A], G [auth A], I [auth B], J [auth B], K [auth B], L [auth B]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Focus chain L [auth B]
