9VPM | pdb_00009vpm

AMG986-bound APLNR dimer in active state 2a in complex with Gi-protein

• PDB DOI: https://doi.org/10.2210/pdb9VPM/pdb
• EM Map EMD-65254: EMDB EMDataResource

• Classification: STRUCTURAL PROTEIN
• Organism(s): Homo sapiens, synthetic construct
• Expression System: Spodoptera frugiperda, Trichoplusia ni
• Mutation(s): No


• Deposited: 2025-07-03 Released: 2026-07-08
• Deposition Author(s): Ji, S., Wang, W., Yang, Y., Shen, Q., Zhang, Y.
• Funding Organization(s): Not funded

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 4.00 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

AMG986-bound APLNR dimer in active state 2a in complex with Gi-protein

Ji, S., Wang, W., Yang, Y., Shen, Q., Zhang, Y.

To be published.

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 6-mer - A2B1C1D1E1 Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - A2

Local Symmetry: Cyclic - C2  (Explore in 3D)
Local Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors.

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 198.06 kDa
• Atom Count: 5,693
• Modeled Residue Count: 1,423
• Deposited Residue Count: 1,779
• Unique protein chains: 5

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2	A [auth G]	70	Homo sapiens	Mutation(s): 0  Gene Names: GNG2
UniProt & NIH Common Fund Data Resources
Find proteins for P59768 (Homo sapiens) Explore P59768  Go to UniProtKB:  P59768
PHAROS:  P59768 GTEx:  ENSG00000186469

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

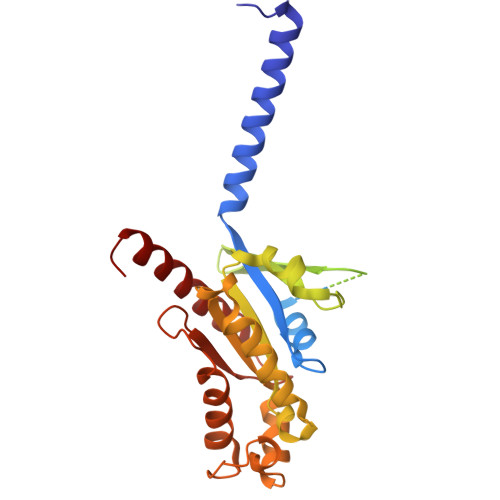

Guanine nucleotide-binding protein G(i) subunit alpha-1	B [auth A]	354	Homo sapiens	Mutation(s): 0  Gene Names: GNAI1 EC: 3.6.5
UniProt & NIH Common Fund Data Resources
Find proteins for P63096 (Homo sapiens) Explore P63096  Go to UniProtKB:  P63096
PHAROS:  P63096 GTEx:  ENSG00000127955

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

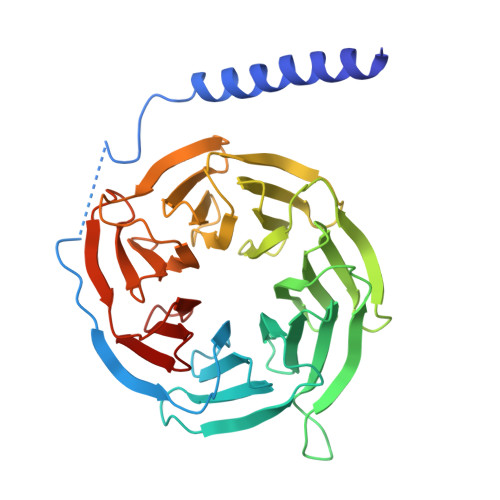

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1	C [auth B]	345	Homo sapiens	Mutation(s): 0  Gene Names: GNB1
UniProt & NIH Common Fund Data Resources
Find proteins for P62873 (Homo sapiens) Explore P62873  Go to UniProtKB:  P62873
PHAROS:  P62873 GTEx:  ENSG00000078369

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

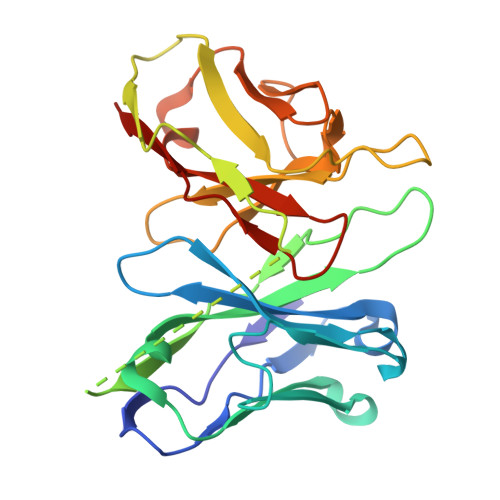

single Fab chain(scFv16)	D [auth S]	250	synthetic construct	Mutation(s): 0

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image
Apelin receptor	E [auth R], F [auth Q]	380	Homo sapiens	Mutation(s): 0  Gene Names: APLNR, AGTRL1, APJ
UniProt & NIH Common Fund Data Resources
Find proteins for P35414 (Homo sapiens) Explore P35414  Go to UniProtKB:  P35414
PHAROS:  P35414 GTEx:  ENSG00000134817

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 4.00 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-07-08
Deposition Author(s): Ji, S., Wang, W., Yang, Y., Shen, Q., Zhang, Y.

---

Funding Organization	Location	Grant Number
Not funded		--

Revision History

• Version 1.0: 2026-07-08
  Type: Initial release
