9V9C | pdb_00009v9c

Cryo-EM structure of human TNFR1 DD filament

PDB DOI: https://doi.org/10.2210/pdb9V9C/pdb
EM Map EMD-64869: EMDB EMDataResource

Classification: PROTEIN FIBRIL
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-05-30 Released: 2026-04-08
Deposition Author(s): Zhao, K., Liu, J.P., Liu, C., Yuan, J.Y.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.62 Å
Aggregation State: FILAMENT
Reconstruction Method: HELICAL

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Electric dipole moment drives the dynamics of the TNFR1 complex I signalosome

Zhao, K., Liu, J.P., Liu, C., Yuan, J.Y.

(2026) Nature

DOI: https://doi.org/10.1038/s41586-026-10304-1

Macromolecule Content

Total Structure Weight: 260.72 kDa
Atom Count: 14,360
Modeled Residue Count: 1,740
Deposited Residue Count: 2,280
Unique protein chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

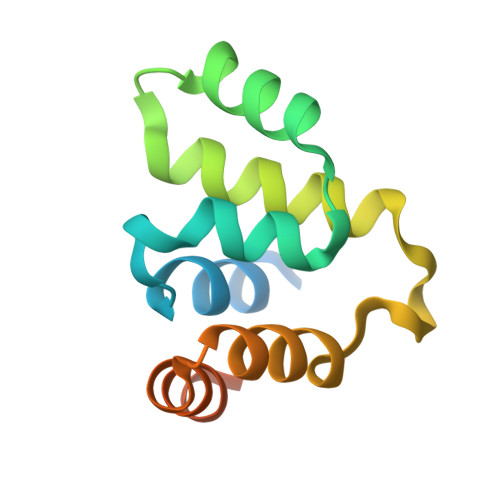

Tumor necrosis factor receptor superfamily member 1A, membrane form	A B C D E A, B, C, D, E, F, G [auth I], H [auth L], I [auth O], J [auth R], K [auth G], L [auth J], M, N [auth P], O [auth S], P [auth H], Q [auth K], R [auth N], S [auth Q], T	114	Homo sapiens	Mutation(s): 0 Gene Names: TNFRSF1A, TNFAR, TNFR1
UniProt & NIH Common Fund Data Resources
Find proteins for P19438 (Homo sapiens) Explore P19438 Go to UniProtKB: P19438
PHAROS: P19438 GTEx: ENSG00000067182
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	P19438
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.62 Å
Aggregation State: FILAMENT
Reconstruction Method: HELICAL

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.15.2_3472

Structure Validation

View Full Validation Report

Entry History & Funding Information

Deposition Data

Released Date: 2026-04-08

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2026-04-08
Type: Initial release
