9V4M | pdb_00009v4m

Crystal structure of the T.thermophilus transcription initiation complex bound to Ap4G


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.00 Å
  • R-Value Free:
    0.288 (Depositor), 0.288 (DCC)
  • R-Value Work:
    0.279 (Depositor), 0.279 (DCC)
  • R-Value Observed:
    0.279 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


Ligand Structure Quality Assessment


This is version 1.1 of the entry. See complete history


Literature

Molecular basis for noncanonical transcription initiation from Np 4 A alarmones.

Duan, W.Kaushik, A.Unarta, I.C.Wu, Y.Liu, M.M.J.Weaver, J.W.Wang, B.Rice, W.J.Luciano, D.J.Belasco, J.G.Huang, X.Nudler, E.Serganov, A.

(2025) Nat Chem Biol

  • DOI: https://doi.org/10.1038/s41589-025-02044-6
  • Primary Citation of Related Structures:
    9UJK, 9UJL, 9UJN, 9UJP, 9UKN, 9UKO, 9UKP, 9UKS, 9UKT, 9UKU, 9ULS, 9ULT, 9UMA, 9UPW, 9V4M

  • PubMed Abstract:

    Stress-induced dinucleoside tetraphosphates (Np 4 Ns, where N is adenosine, guanosine, cytosine or uridine) are ubiquitous in living organisms, yet their function has been largely elusive for over 50 years. Recent studies have revealed that RNA polymerase can influence the cellular lifetime of transcripts by incorporating these alarmones into RNA as 5'-terminal caps. Here we present structural and biochemical data that reveal the molecular basis of noncanonical transcription initiation from Np 4 As by Escherichia coli and Thermus thermophilus RNA polymerases. Our results show the influence of the first two nucleotide incorporation steps on capping efficiency and the different interactions of Np 4 As with transcription initiation complexes. These data provide critical insights into the substrate selectivity that dictates levels of Np 4 capping in bacterial cells.


  • Organizational Affiliation
    • Department of Biochemistry and Molecular Pharmacology, New York University School of Medicine, New York, NY, USA.

Macromolecules

Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

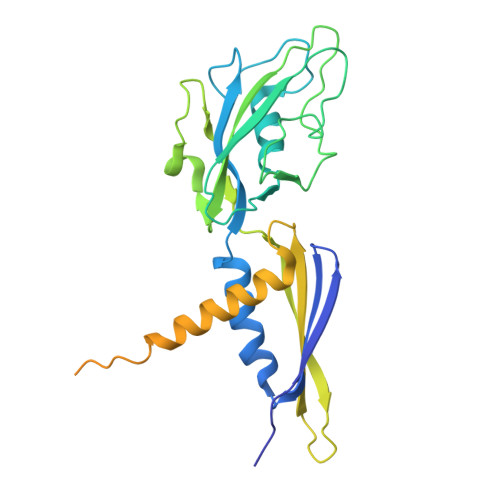

DNA-directed RNA polymerase subunit alpha
A, B
315Thermus thermophilus HB8Mutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for Q5SHR6 (Thermus thermophilus (strain ATCC 27634 / DSM 579 / HB8))
Explore Q5SHR6
Go to UniProtKB:  Q5SHR6
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ5SHR6
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

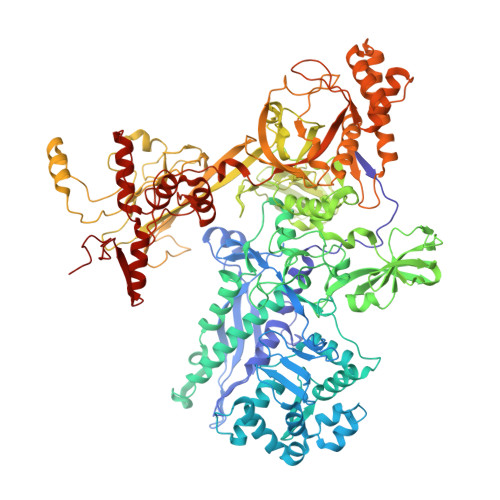

DNA-directed RNA polymerase subunit beta1,119Thermus thermophilus HB8Mutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for Q8RQE9 (Thermus thermophilus (strain ATCC 27634 / DSM 579 / HB8))
Explore Q8RQE9
Go to UniProtKB:  Q8RQE9
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8RQE9
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

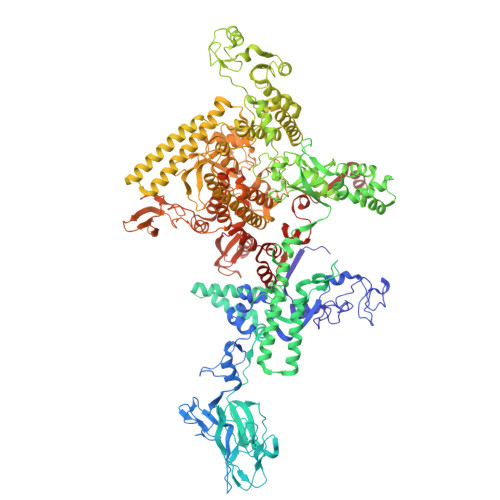

DNA-directed RNA polymerase subunit beta'1,524Thermus thermophilus HB8Mutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for Q8RQE8 (Thermus thermophilus (strain ATCC 27634 / DSM 579 / HB8))
Explore Q8RQE8
Go to UniProtKB:  Q8RQE8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8RQE8
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage

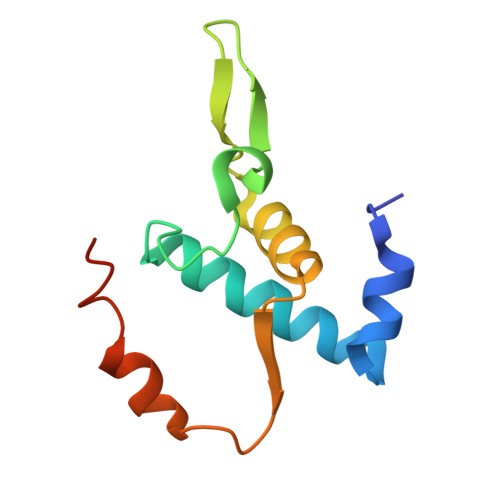

DNA-directed RNA polymerase subunit omega99Thermus thermophilus HB8Mutation(s): 0
EC: 2.7.7.6
UniProt
Find proteins for Q8RQE7 (Thermus thermophilus (strain ATCC 27634 / DSM 579 / HB8))
Explore Q8RQE7
Go to UniProtKB:  Q8RQE7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ8RQE7
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage
RNA polymerase sigma factor SigA444Thermus thermophilus HB8Mutation(s): 0
Gene Names: sigATTHA0532
UniProt
Find proteins for Q5SKW1 (Thermus thermophilus (strain ATCC 27634 / DSM 579 / HB8))
Explore Q5SKW1
Go to UniProtKB:  Q5SKW1
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupQ5SKW1
Sequence Annotations
Expand
  • Reference Sequence

Find similar nucleic acids by:  Sequence   |   3D Structure

Entity ID: 6
MoleculeChains LengthOrganismImage
Template DNA strand22synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Find similar nucleic acids by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains LengthOrganismImage

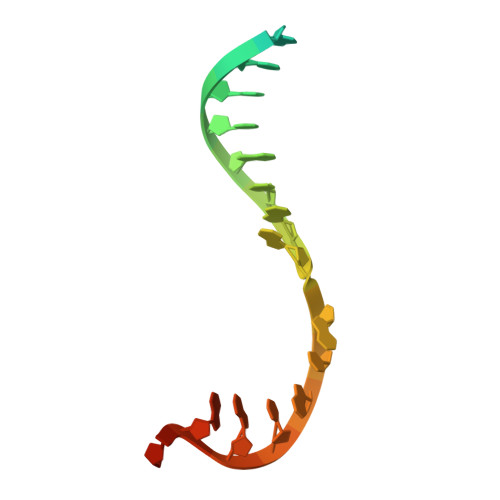

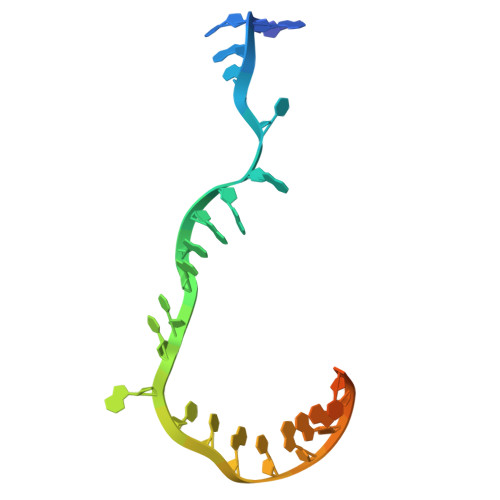

Non-template DNA Strand27synthetic construct
Sequence Annotations
Expand
  • Reference Sequence
Small Molecules
Ligands 4 Unique
IDChains Name / Formula / InChI Key2D Diagram3D Interactions
A1IF9 (Subject of Investigation/LOI)
Query on A1IF9

Download Ideal Coordinates CCD File
K [auth C][[(2~{R},3~{S},4~{R},5~{R})-5-(6-aminopurin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl] [[[(2~{R},3~{S},4~{R},5~{R})-5-(2-azanyl-6-oxidanylidene-1~{H}-purin-9-yl)-3,4-bis(oxidanyl)oxolan-2-yl]methoxy-oxidanyl-phosphoryl]oxy-oxidanyl-phosphoryl] hydrogen phosphate
C20 H28 N10 O20 P4
SJXJAXXRDJWRCR-INFSMZHSSA-N
TRS
Query on TRS

Download Ideal Coordinates CCD File
L [auth C],
Q [auth D]
2-AMINO-2-HYDROXYMETHYL-PROPANE-1,3-DIOL
C4 H12 N O3
LENZDBCJOHFCAS-UHFFFAOYSA-O
ZN
Query on ZN

Download Ideal Coordinates CCD File
M [auth D],
N [auth D]
ZINC ION
Zn
PTFCDOFLOPIGGS-UHFFFAOYSA-N
MG
Query on MG

Download Ideal Coordinates CCD File
I [auth A],
J [auth B],
O [auth D],
P [auth D]
MAGNESIUM ION
Mg
JLVVSXFLKOJNIY-UHFFFAOYSA-N
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.00 Å
  • R-Value Free:  0.288 (Depositor), 0.288 (DCC)
  • R-Value Work:  0.279 (Depositor), 0.279 (DCC)
  • R-Value Observed: 0.279 (Depositor)
Space Group: C 1 2 1
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 185.055α = 90
b = 103.211β = 98.89
c = 296.509γ = 90
Software Package:
Software NamePurpose
PHENIXrefinement
HKL-2000data reduction
HKL-2000data scaling
PHASERphasing

Structure Validation

View Full Validation Report



Ligand Structure Quality Assessment


Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR01GM112904
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesR21GM151508
National Institutes of Health/National Institute of General Medical Sciences (NIH/NIGMS)United StatesT32 GM088118-09

Revision History  (Full details and data files)

  • Version 1.0: 2025-10-22
    Type: Initial release
  • Version 1.1: 2025-10-29
    Changes: Database references
