 9V36 | pdb_00009v36

Human DNMT1 (aa 698-1616) bound to hemimethylated dsDNA and Inhibitor DMI26

  • Classification: TRANSFERASE
  • Organism(s): Homo sapiens
  • Expression System: Spodoptera frugiperda
  • Mutation(s): No

  • Deposited: 2025-05-21 Released: 2026-03-18
  • Deposition Author(s): Li, Z.
  • Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.77 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9V36

This is version 1.1 of the entry. See complete history.

Literature

Structure-guided design of 7-azaindole DNMT1 inhibitors active against hypomethylating agent-resistant acute myeloid leukemia.

Tang, S., Zong, L., Ma, S., Shang, Y., Wei, J., Liu, J., Cui, Y., Guo, H., Zou, K., Wang, K., Li, H., Ye, F., Huang, J., Luo, C., Li, Z., Baylin, S.B., Kong, X.

(2026) Proc Natl Acad Sci U S A 123: e2532472123-e2532472123

  • DOI: https://doi.org/10.1073/pnas.2532472123
  • Primary Citation Related Structures:
    9V36

  • PubMed Abstract:

    Pharmacological reversal of abnormal promoter DNA hypermethylation at tumor suppressor genes (TSGs) is a key therapeutic paradigm for cancer management. However, the clinical efficacy of currently approved nucleoside analog hypomethylating agents (HMAs) is limited by dose-dependent toxicity and high resistance rates. Nonnucleoside, DNA methyltransferase 1 (DNMT1)-selective inhibitors offer a promising alternative. To date, only limited chemotypes, exemplified by the dicyanopyridine derivative GSK3685032 (GSK5032), have demonstrated translatable DNMT1 inhibition, with resistance emerging upon prolonged exposure. To address these limitations, we employ structure-guided scaffold hopping and chemical optimization to develop a series of DNMT1 inhibitors (DNMT1i) featuring a bicyclic 7-azaindole scaffold. We identify DMI46, a potent enzymatic DNMT1i capable of reversing cancer-specific DNA methylation abnormalities and TSG silencing, leading to robust antileukemic effects and favorable tolerability. Cryoelectron microscopy (cryo-EM) studies reveal that the 7-azaindole inhibitor exhibits enhanced intercalation into hemi-methylated CpG dyads and increased minor-groove contacts within the DNMT1/hemimethylated DNA complex compared to GSK5032. These structural features enable sustained DNMT1 targeting and significant antiproliferative activity of DMI46 in GSK5032-resistant acute myeloid leukemia (AML) cells. We also demonstrate DMI46's capacity to overcome AML resistance to nucleoside-based HMAs both in vitro and in vivo. These findings introduce a distinct DNMT1i chemotype with enhanced on-target engagement and broad applicability against HMA-resistant AML.


  • Organizational Affiliation:
    • Institute of Drug Discovery, Guangdong Provincial Key Laboratory of Stem Cell and Regenerative Medicine, China-New Zealand Joint Laboratory on Biomedicine and Health, Guangzhou Institutes of Biomedicine and Health, Chinese Academy of Sciences, Guangzhou 510530, China.

Macromolecule Content

  • Total Structure Weight: 112.24 kDa
  • Atom Count: 7,054
  • Modeled Residue Count: 854
  • Deposited Residue Count: 943
  • Unique protein chains: 1
  • Unique nucleic acid chains: 2

Macromolecules


Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

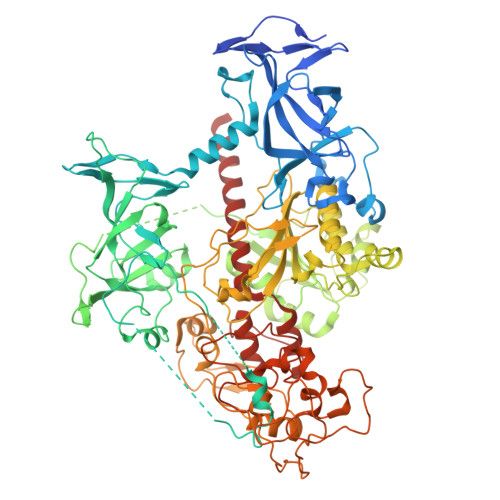

DNA (cytosine-5)-methyltransferase 1919Homo sapiensMutation(s): 0
Gene Names: DNMT1, AIM, CXXC9, DNMT
EC: 2.1.1.37
UniProt & NIH Common Fund Data Resources
Find proteins for P26358 (Homo sapiens)
Explore P26358
Go to UniProtKB:  P26358
PHAROS:  P26358
GTEx:  ENSG00000130816
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP26358
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  Sequence
Entity ID: 2
MoleculeChains LengthOrganismImage

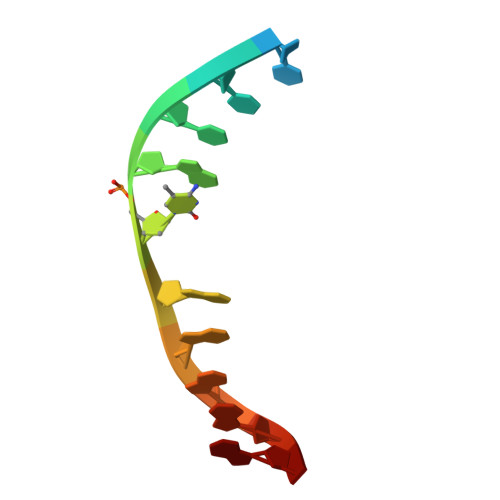

DNA (5'-D(*AP*CP*TP*TP*AP*(5CM)P*GP*GP*AP*AP*GP*G)-3')12Homo sapiens
Sequence Annotations
Expand
Reference Sequence
Find similar nucleic acids by:  Sequence
Entity ID: 3
MoleculeChains LengthOrganismImage

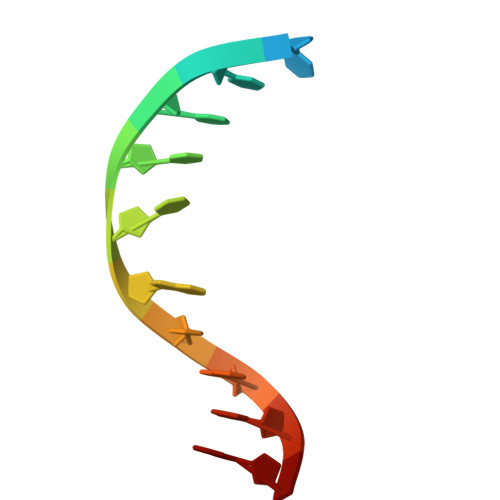

DNA (5'-D(*CP*CP*TP*TP*CP*CP*GP*TP*AP*AP*GP*T)-3')C [auth E]12Homo sapiens
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.77 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.14_3260

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data

  • Released Date: 2026-03-18
  • Deposition Author(s): Li, Z.

Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China82473951

Revision History  (Full details and data files)

  • Version 1.0: 2026-03-18
    Type: Initial release
  • Version 1.1: 2026-09-30
    Changes: Data collection, Database references
