9UWW | pdb_00009uww

Cryo-EM structure of the human P2X2 receptor in the apo closed state

PDB DOI: https://doi.org/10.2210/pdb9UWW/pdb
EM Map EMD-64566: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Homo sapiens
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-05-13 Released: 2026-03-11
Deposition Author(s): Zhang, J., Cheng, X.Y.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.19 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9UWW

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of the human P2X2 receptor in the apo closed state

Zhang, J., Cheng, X.Y.

To be published.

Macromolecule Content

Total Structure Weight: 158.29 kDa
Atom Count: 7,924
Modeled Residue Count: 987
Deposited Residue Count: 1,413
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

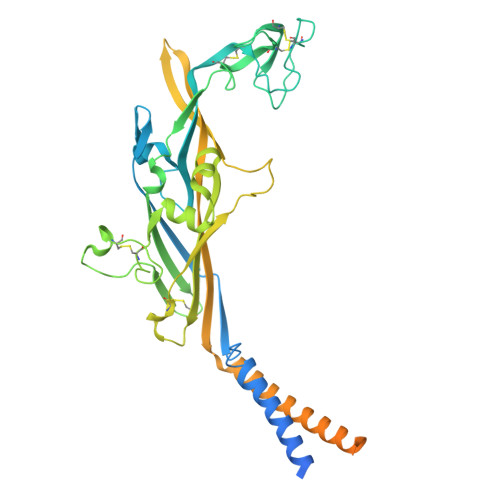

P2X purinoceptor 2	A, B, C	471	Homo sapiens	Mutation(s): 0 Gene Names: P2RX2, P2X2
UniProt & NIH Common Fund Data Resources
Find proteins for Q9UBL9 (Homo sapiens) Explore Q9UBL9 Go to UniProtKB: Q9UBL9
PHAROS: Q9UBL9 GTEx: ENSG00000187848
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9UBL9
Glycosylation
Glycosylation Sites: 2	Glycosylation Focus chain A Focus chain B Focus chain C	Go to GlyGen: Q9UBL9-1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
PG8 (Subject of Investigation/LOI) Query on PG8 Download:Ideal Coordinates CCD File SDF format, chain M [auth C] SDF format, chain J [auth B] SDF format, chain F [auth A] MOL2 format, chain M [auth C] MOL2 format, chain J [auth B] MOL2 format, chain F [auth A] mmCIF format, chain M [auth C] mmCIF format, chain J [auth B] mmCIF format, chain F [auth A]	F [auth A], J [auth B], M [auth C]	1,2-DIOCTANOYL-SN-GLYCERO-3-[PHOSPHO-RAC-(1-GLYCEROL) C₂₂ H₄₂ O₁₀ P BQEXNLVNNRZNEI-WOJBJXKFSA-M		Interactions Focus chain F [auth A] Focus chain J [auth B] Focus chain M [auth C] Interactions & Density Focus chain F [auth A] Focus chain J [auth B] Focus chain M [auth C]
NAG (Subject of Investigation/LOI) Query on NAG Download:Ideal Coordinates CCD File SDF format, chain L [auth C] SDF format, chain K [auth C] SDF format, chain I [auth B] SDF format, chain H [auth B] SDF format, chain E [auth A] SDF format, chain D [auth A] MOL2 format, chain L [auth C] MOL2 format, chain K [auth C] MOL2 format, chain I [auth B] MOL2 format, chain H [auth B] MOL2 format, chain E [auth A] MOL2 format, chain D [auth A] mmCIF format, chain L [auth C] mmCIF format, chain K [auth C] mmCIF format, chain I [auth B] mmCIF format, chain H [auth B] mmCIF format, chain E [auth A] mmCIF format, chain D [auth A]	D [auth A] E [auth A] H [auth B] I [auth B] K [auth C] D [auth A], E [auth A], H [auth B], I [auth B], K [auth C], L [auth C]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain D [auth A] Focus chain E [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain K [auth C] Focus chain L [auth C] Interactions & Density Focus chain D [auth A] Focus chain E [auth A] Focus chain H [auth B] Focus chain I [auth B] Focus chain K [auth C] Focus chain L [auth C]
NA (Subject of Investigation/LOI) Query on NA Download:Ideal Coordinates CCD File SDF format, chain G [auth A] MOL2 format, chain G [auth A] mmCIF format, chain G [auth A]	G [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Interactions & Density Focus chain G [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.19 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-03-11

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2026-03-11
Type: Initial release
