9UUJ | pdb_00009uuj

Crystal structure of the mu2 subunit of the clathrin-adaptor protein 2 (AP2) bound to HPV16 E7(residues 22-39)


Experimental Data Snapshot

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.70 Å
  • R-Value Free:
    0.234 (Depositor), 0.230 (DCC)
  • R-Value Work:
    0.207 (Depositor), 0.209 (DCC)
  • R-Value Observed:
    0.210 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Crystal structures of the mu 2 subunit of clathrin-adaptor protein 2 in complex with peptides derived from human papillomavirus 16 E7.

Jung, S.Lim, D.Choi, J.S.Shin, H.C.Kim, S.J.Ku, B.

(2025) J Microbiol 63: e2505003-e2505003

  • DOI: https://doi.org/10.71150/jm.2505003
  • Primary Citation of Related Structures:
    9UUJ, 9UUK, 9UUL

  • PubMed Abstract:

    Human papillomaviruses (HPVs) cause abnormal cellular proliferation, leading to malignant or benign lesions, such as cervical cancer and warts. The genome of HPV16, the most prevalent high-risk oncogenic genotype within the Alphapapillomavirus genus, encodes two oncoproteins. One of these proteins, E7, interacts with multiple host proteins and modulates their functions through distinct pathways. The CR2 domain of HPV16 E7 was recently reported to interact with the μ2 subunit of clathrin-adaptor protein 2 (AP2-μ2), an adaptor complex involved in cargo internalization during clathrin-mediated endocytosis. In this study, to provide molecular insights into their intermolecular interactions, we determined the crystal structures of AP2-μ2 in complex with the HPV16 E7-derived peptides. Subsequent biochemical analyses revealed that this interaction is primarily maintained by the Y-x-x-Φ motif and further supported by acidic cluster residues of HPV16 E7. Finally, sequence alignment of the E7 CR2 domains from various HPV genotypes showed that the AP2-μ2-binding motif is largely conserved in Alpha-, Beta-, and Mupapillomaviruses, but not in Nu- and Gammapapillomaviruses.


  • Organizational Affiliation
    • Orphan Disease Therapeutic Target Research Center, Korea Research Institute of Bioscience and Biotechnology, Daejeon 34141, Republic of Korea.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

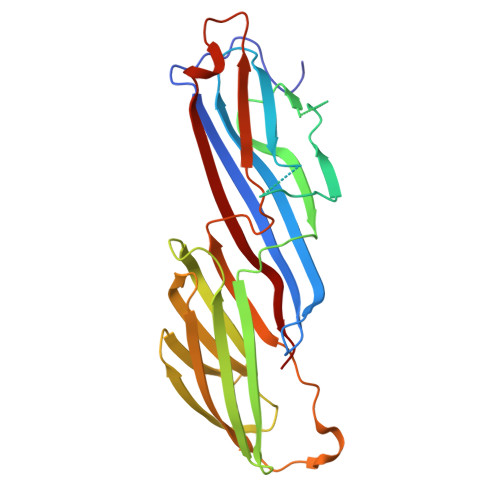

AP-2 complex subunit mu281Rattus norvegicusMutation(s): 0
Gene Names: Ap2m1
UniProt
Find proteins for P84092 (Rattus norvegicus)
Explore P84092
Go to UniProtKB:  P84092
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP84092
Sequence Annotations
Expand
  • Reference Sequence

Find similar proteins by:  Sequence   |   3D Structure

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Protein E718Human papillomavirus 16Mutation(s): 0
Gene Names: E7
UniProt
Find proteins for P03129 (Human papillomavirus type 16)
Explore P03129
Go to UniProtKB:  P03129
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP03129
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: X-RAY DIFFRACTION
  • Resolution: 3.70 Å
  • R-Value Free:  0.234 (Depositor), 0.230 (DCC)
  • R-Value Work:  0.207 (Depositor), 0.209 (DCC)
  • R-Value Observed: 0.210 (Depositor)
Space Group: P 64
Unit Cell:
Length ( Å )Angle ( ˚ )
a = 125.094α = 90
b = 125.094β = 90
c = 73.588γ = 120
Software Package:
Software NamePurpose
PHENIXrefinement
HKL-2000data reduction
HKL-2000data scaling
MOLREPphasing

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Research Foundation (NRF, Korea)Korea, Republic OfRS-2023-00278696
National Research Foundation (NRF, Korea)Korea, Republic OfKGM9952522
National Research Foundation (NRF, Korea)Korea, Republic OfKGM1322511

Revision History  (Full details and data files)

  • Version 1.0: 2025-09-10
    Type: Initial release
