9UNW | pdb_00009unw

mouse PDCD5-TRiC complex


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.55 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

PDCD5 promotes substrate release from the TRiC complex in cilia and flagella.

Wei, H.Song, Q.Wang, L.Deng, Q.Wu, B.Chen, Y.Han, T.Guo, Y.Li, Z.Dong, F.Ma, S.Zhao, Q.Shi, X.Pan, C.Jiang, W.Liu, X.Chen, Y.Jiao, R.Yuan, L.Liu, C.Guo, X.Cong, Y.Li, W.

(2026) Mol Cell 86: 376-392.e11

  • DOI: https://doi.org/10.1016/j.molcel.2025.12.012
  • Primary Citation of Related Structures:
    9UNW

  • PubMed Abstract:

    Approximately 10% of eukaryotic proteins are folded by the TRiC/CCT complex (TCP1-ring complex, also called CCT for cytosolic chaperonin containing TCP1), and only open-state TRiC can bind with programmed cell death 5 (PDCD5). However, the physiological role of the PDCD5-TRiC interaction remains elusive. Here, we show that PDCD5 is required for flagellum biogenesis and ciliogenesis and present the PDCD5-TRiC structures in their open states at near-atomic resolution. Mechanically, we find that PDCD5 promotes substrates release by competing with PhLP2A to interact with TRiC, and the depletion of PDCD5 traps flagellum- and cilium-associated proteins within TRiC, finally leading to malformed flagella of spermatids and cilia in mouse ciliated cells. Moreover, we demonstrate that the function of PDCD5 in flagellum biogenesis and ciliogenesis depends on the interaction with TRiC by its C terminus. These findings identify PDCD5 as a TRiC regulator to promote a subset of proteins release.


  • Organizational Affiliation
    • Guangzhou Women and Children's Medical Center, Sino-French Hoffmann Institute, Guangzhou Medical University, Guangzhou 510623, China.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage

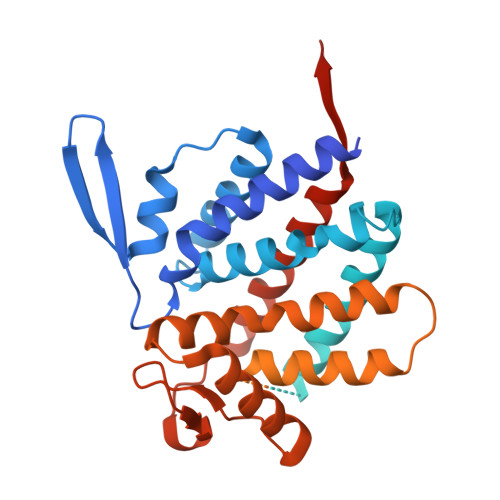

T-complex protein 1 subunit alphaA [auth C]556Mus musculusMutation(s): 0
EC: 3.6.1
UniProt & NIH Common Fund Data Resources
Find proteins for P11983 (Mus musculus)
Explore P11983
Go to UniProtKB:  P11983
IMPC:  MGI:98535
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP11983
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage

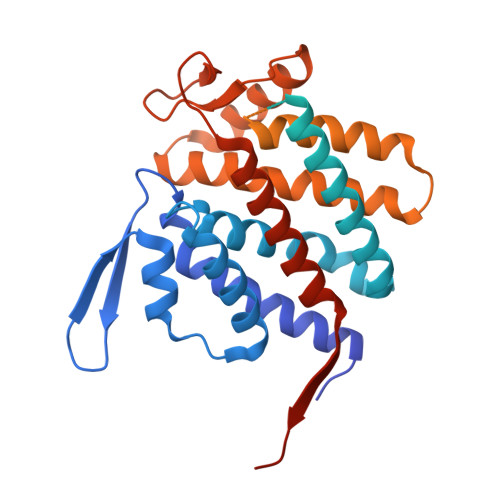

T-complex protein 1 subunit betaB [auth G]535Mus musculusMutation(s): 0
EC: 3.6.1
UniProt
Find proteins for P80314 (Mus musculus)
Explore P80314
Go to UniProtKB:  P80314
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP80314
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 3
MoleculeChains Sequence LengthOrganismDetailsImage

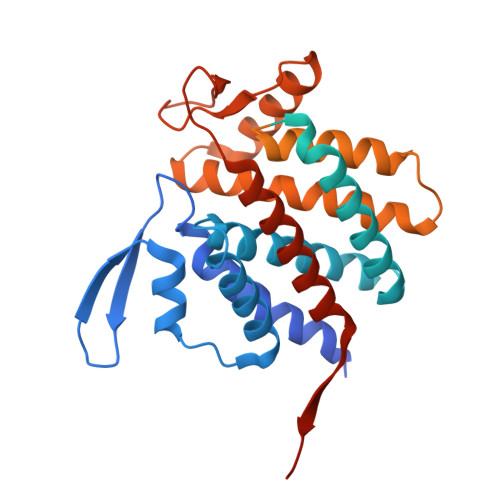

T-complex protein 1 subunit gammaC [auth H]545Mus musculusMutation(s): 0
EC: 3.6.1
UniProt & NIH Common Fund Data Resources
Find proteins for P80318 (Mus musculus)
Explore P80318
Go to UniProtKB:  P80318
IMPC:  MGI:104708
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP80318
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 4
MoleculeChains Sequence LengthOrganismDetailsImage
T-complex protein 1 subunit deltaD [auth I]539Mus musculusMutation(s): 0
EC: 3.6.1
UniProt
Find proteins for P80315 (Mus musculus)
Explore P80315
Go to UniProtKB:  P80315
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP80315
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 5
MoleculeChains Sequence LengthOrganismDetailsImage

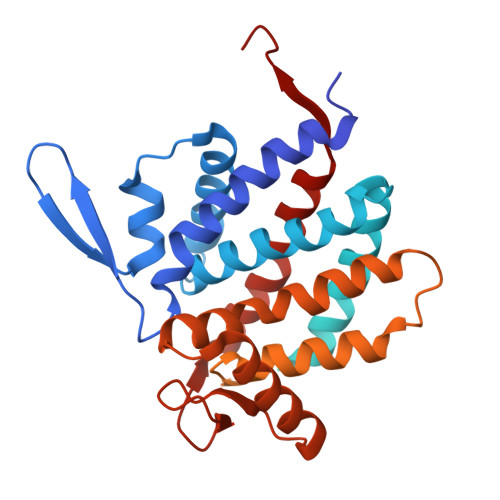

T-complex protein 1 subunit epsilonE [auth F]541Mus musculusMutation(s): 0
EC: 3.6.1
UniProt & NIH Common Fund Data Resources
Find proteins for P80316 (Mus musculus)
Explore P80316
Go to UniProtKB:  P80316
IMPC:  MGI:107185
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP80316
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 6
MoleculeChains Sequence LengthOrganismDetailsImage

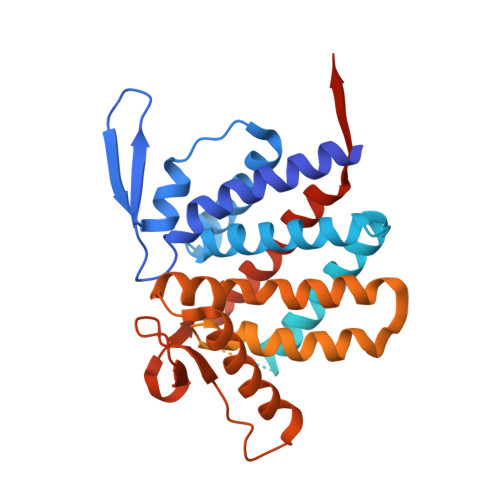

T-complex protein 1 subunit zetaF [auth A]531Mus musculusMutation(s): 0
EC: 3.6.1
UniProt
Find proteins for P80317 (Mus musculus)
Explore P80317
Go to UniProtKB:  P80317
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP80317
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 7
MoleculeChains Sequence LengthOrganismDetailsImage

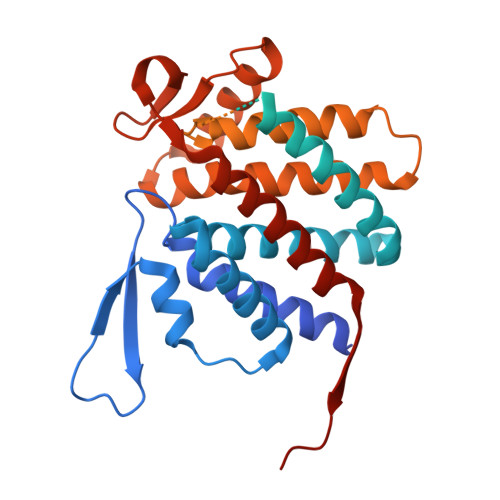

T-complex protein 1 subunit etaG [auth B]544Mus musculusMutation(s): 0
EC: 3.6.1
UniProt & NIH Common Fund Data Resources
Find proteins for P80313 (Mus musculus)
Explore P80313
Go to UniProtKB:  P80313
IMPC:  MGI:107184
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP80313
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 8
MoleculeChains Sequence LengthOrganismDetailsImage
T-complex protein 1 subunit thetaH [auth E]548Mus musculusMutation(s): 0
EC: 3.6.1
UniProt & NIH Common Fund Data Resources
Find proteins for P42932 (Mus musculus)
Explore P42932
Go to UniProtKB:  P42932
IMPC:  MGI:107183
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP42932
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure
Entity ID: 9
MoleculeChains Sequence LengthOrganismDetailsImage

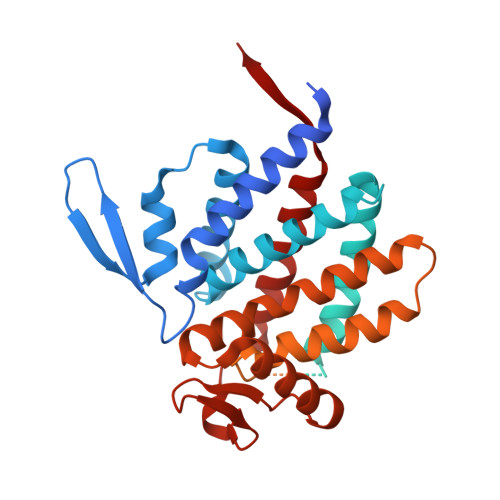

Programmed cell death protein 5I [auth D]171Mus musculusMutation(s): 0
Gene Names: Pdcd5Tfar19
UniProt & NIH Common Fund Data Resources
Find proteins for P56812 (Mus musculus)
Explore P56812
Go to UniProtKB:  P56812
IMPC:  MGI:1913538
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP56812
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.55 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Natural Science Foundation of China (NSFC)China--

Revision History  (Full details and data files)

  • Version 1.0: 2026-03-25
    Type: Initial release
