9UIH | pdb_00009uih

CryoEM structure of Western equine encephalitis virus California VLP

PDB DOI: https://doi.org/10.2210/pdb9UIH/pdb
EM Map EMD-64194: EMDB EMDataResource

Classification: VIRAL PROTEIN
Organism(s): Western equine encephalitis virus
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-04-15 Released: 2025-11-26
Deposition Author(s): Liang, S.J., Lou, Z.Y.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.05 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9UIH

This is version 1.0 of the entry. See complete history.

Literature

Structure of WEEV California VLPs alone

Liang, S.J., Lou, Z.Y.

To be published.

Macromolecule Content

Total Structure Weight: 281.77 kDa
Atom Count: 19,782
Modeled Residue Count: 2,571
Deposited Residue Count: 2,571
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

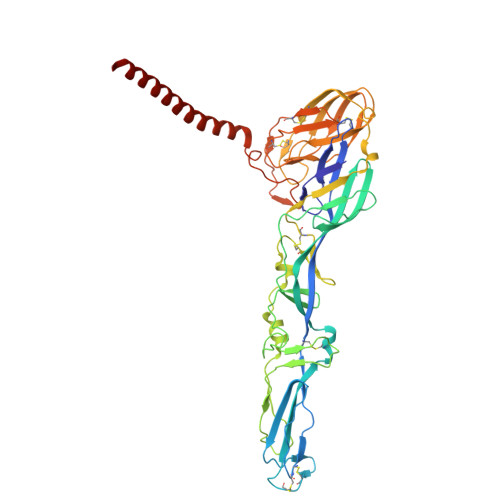

Spike glycoprotein E1	A, C, E	439	Western equine encephalitis virus	Mutation(s): 0
UniProt
Find proteins for P13897 (Western equine encephalitis virus) Explore P13897 Go to UniProtKB: P13897
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P13897
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

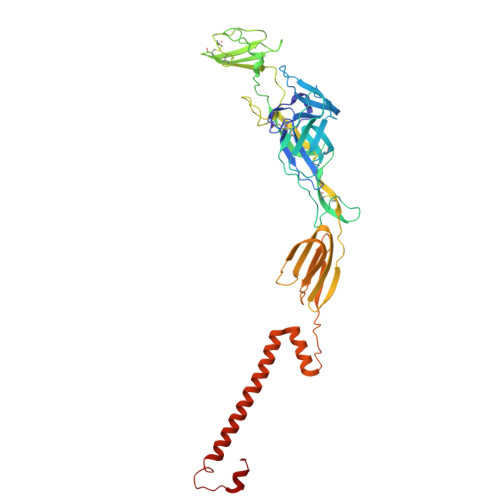

Spike glycoprotein E2	B, D, F	418	Western equine encephalitis virus	Mutation(s): 0
UniProt
Find proteins for P13897 (Western equine encephalitis virus) Explore P13897 Go to UniProtKB: P13897
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P13897
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.05 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419:
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2025-11-26

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2025-11-26
Type: Initial release
