9UI1 | pdb_00009ui1

transporter

PDB DOI: https://doi.org/10.2210/pdb9UI1/pdb
EM Map EMD-64181: EMDB EMDataResource

Classification: TRANSPORT PROTEIN
Organism(s): Arabidopsis thaliana
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-04-15 Released: 2026-04-22
Deposition Author(s): Jiang, D.H., Yan, R.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.54 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9UI1

This is version 1.0 of the entry. See complete history.

Literature

transporter

Jiang, D.H., Yan, R.

To be published.

Macromolecule Content

Total Structure Weight: 76.05 kDa
Atom Count: 4,213
Modeled Residue Count: 539
Deposited Residue Count: 636
Unique protein chains: 1

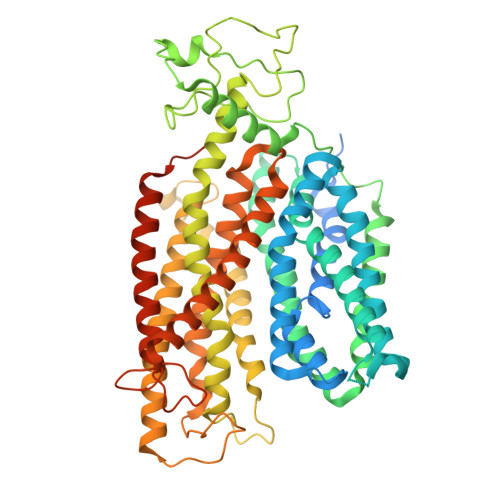

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
Protein NRT1/ PTR FAMILY 2.10	A	636	Arabidopsis thaliana	Mutation(s): 0 Gene Names: NPF2.10, GTR1, At3g47960, T17F15.170
UniProt
Find proteins for Q944G5 (Arabidopsis thaliana) Explore Q944G5 Go to UniProtKB: Q944G5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q944G5
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
POV (Subject of Investigation/LOI) Query on POV Download:Ideal Coordinates CCD File SDF format, chain H [auth A] SDF format, chain G [auth A] SDF format, chain F [auth A] SDF format, chain D [auth A] SDF format, chain C [auth A] SDF format, chain B [auth A] MOL2 format, chain H [auth A] MOL2 format, chain G [auth A] MOL2 format, chain F [auth A] MOL2 format, chain D [auth A] MOL2 format, chain C [auth A] MOL2 format, chain B [auth A] mmCIF format, chain H [auth A] mmCIF format, chain G [auth A] mmCIF format, chain F [auth A] mmCIF format, chain D [auth A] mmCIF format, chain C [auth A] mmCIF format, chain B [auth A]	B [auth A] C [auth A] D [auth A] F [auth A] G [auth A] B [auth A], C [auth A], D [auth A], F [auth A], G [auth A], H [auth A]	(2S)-3-(hexadecanoyloxy)-2-[(9Z)-octadec-9-enoyloxy]propyl 2-(trimethylammonio)ethyl phosphate C₄₂ H₈₂ N O₈ P WTJKGGKOPKCXLL-PFDVCBLKSA-N		Interactions Focus chain B [auth A] Focus chain C [auth A] Focus chain D [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Interactions & Density Focus chain B [auth A] Focus chain C [auth A] Focus chain D [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A]
CLR Query on CLR Download:Ideal Coordinates CCD File SDF format, chain E [auth A] MOL2 format, chain E [auth A] mmCIF format, chain E [auth A]	E [auth A]	CHOLESTEROL C₂₇ H₄₆ O HVYWMOMLDIMFJA-DPAQBDIFSA-N		Interactions Focus chain E [auth A] Interactions & Density Focus chain E [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.54 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-04-22

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2026-04-22
Type: Initial release
