9UH3 | pdb_00009uh3

PSI-9 FCPI supercomplex from haptophyte Chrysotila roscoffensis

PDB DOI: https://doi.org/10.2210/pdb9UH3/pdb
EM Map EMD-64153: EMDB EMDataResource

Classification: PHOTOSYNTHESIS
Organism(s): Chrysotila roscoffensis
Mutation(s): No

Deposited: 2025-04-14 Released: 2026-04-01
Deposition Author(s): La Rocca, R., Tsai, P.-C., Kato, K., Nakajima, Y., Akita, F., Shen, J.-R.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 1.74 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

This is version 1.1 of the entry. See complete history.

Literature

Multiple structures of photosystem I-FCPI supercomplexes from a coccolithophore alga reveal a modular antenna organization.

La Rocca, R., Tsai, P.C., Kato, K., Nakajima, Y., Akita, F., Shen, J.R.

(2026) Biochim Biophys Acta Bioenerg 1867: 149588-149588

PubMed: 41864554 Search on PubMed
DOI: https://doi.org/10.1016/j.bbabio.2026.149588
Primary Citation Related Structures:
9UH3, 9UH4, 9UNU, 9UOF, 9UOV

PubMed Abstract:
Photosystem I (PSI) converts light energy into chemical energy in photosynthesis, and forms supercomplexes with light-harvesting complexes (LHCI) in eukaryotes to enhance energy capture and transfer. Various numbers and organizations of both PSI core and LHCI subunits are observed in various organisms. A subgroup of haptophytes named coccolithophores play a major role in marine carbon cycle and CaCO ₃ production, and the light-harvesting antennas of them are named FCPs (fucoxanthin-chlorophyll a/c binding protein) because they bind chlorophyll c and fucoxanthin in addition to chlorophyll a. A structure of a large PSI-FCPI supercomplex containing 38 FCPI subunits has been reported from a coccolithophore Emiliania huxleyi recently (L. Shen et al., Science 389, eadv2132, 2025). Here we solved five cryo-electron microscopy (cryo-EM) structures of PSI-FCPI supercomplexes isolated from another coccolithophore Chrysotila roscoffensis with different detergents at resolutions ranging from 2.3 to 1.7 Å. These structures represent discrete PSI-FCPIs containing 1, 4, 6, 8 and 9 FCPI subunits, with FCPIs arranged in a modular fashion. Association of each FCPI module to the PSI core, as well as the arrangement of protein subunits and pigments, are revealed. Contributions of individual antenna modules to excitation energy transfer were calculated and compared with PSI-FCPI supercomplexes from other species of coccolithophores and haptophytes. These results pinpoint the assembly of stable PSI-FCPI supercomplexes in C. roscoffensis and provide insights into how antenna modules contribute to energy transfer in coccolithophores.

Organizational Affiliation

Advanced Research Field, Research Institute for Interdisciplinary Science, and Graduate School of Environmental, Life, Natural Science and Technology, Okayama University, Okayama, 700-8530, Japan.

Macromolecule Content

Total Structure Weight: 669.76 kDa
Atom Count: 42,258
Modeled Residue Count: 3,643
Deposited Residue Count: 4,198
Unique protein chains: 21

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

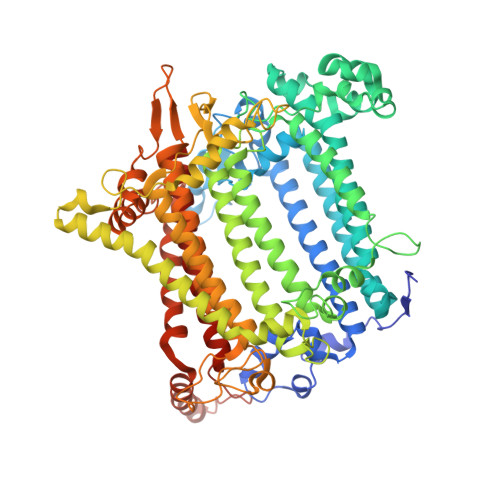

Photosystem I P700 chlorophyll a apoprotein A1 (psaA)	A	752	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

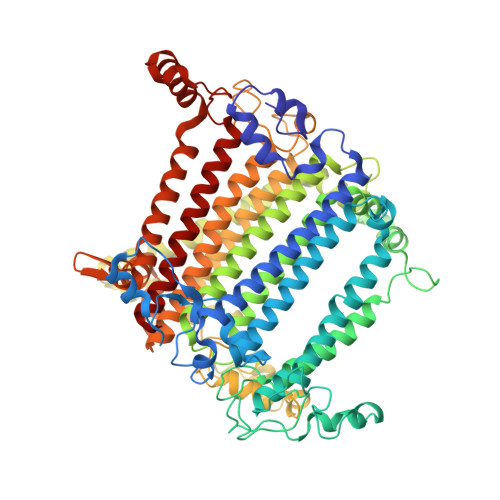

Photosystem I P700 chlorophyll a apoprotein A2 (psaB)	B	734	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

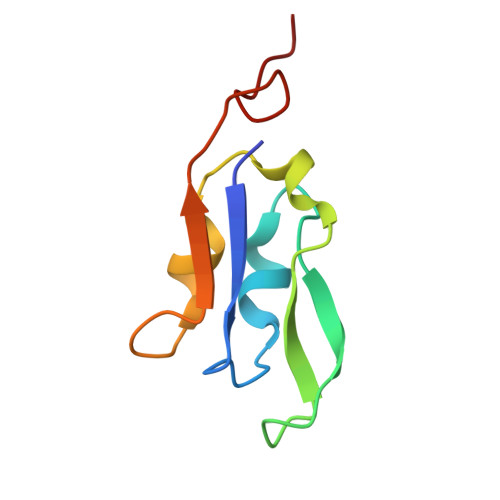

Photosystem I iron-sulfur center (psaC)	C	81	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

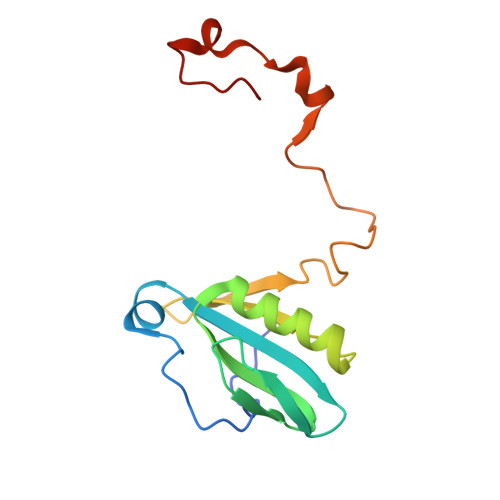

Photosystem I reaction center subunit II (psaD)	D	142	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

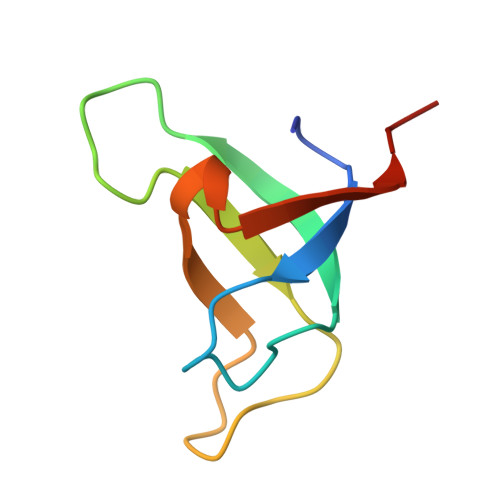

Photosystem I reaction center subunit IV (psaE)	E	67	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

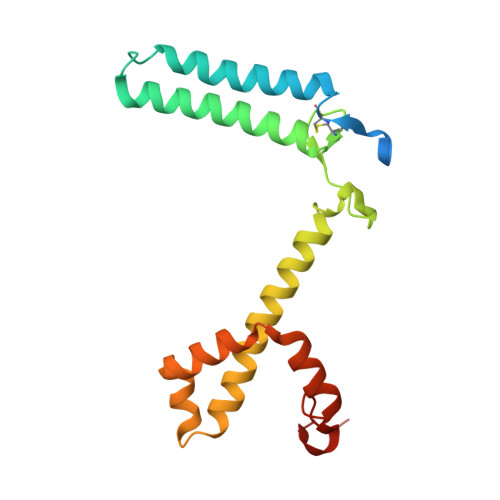

Photosystem I reaction center subunit III (psaF)	F	184	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem I reaction center subunit VIII (psaI)	G [auth I]	35	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image
Photosystem I reaction center subunit IX (psaJ)	H [auth J]	39	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 9
Molecule	Chains	Sequence Length	Organism	Details	Image

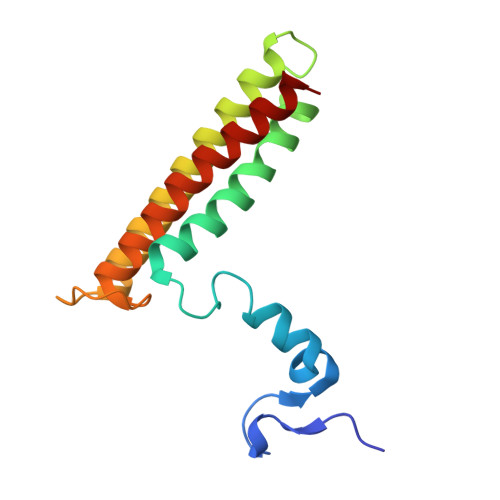

Photosystem I reaction center subunit XI (psaL)	I [auth L]	141	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 10
Molecule	Chains	Sequence Length	Organism	Details	Image

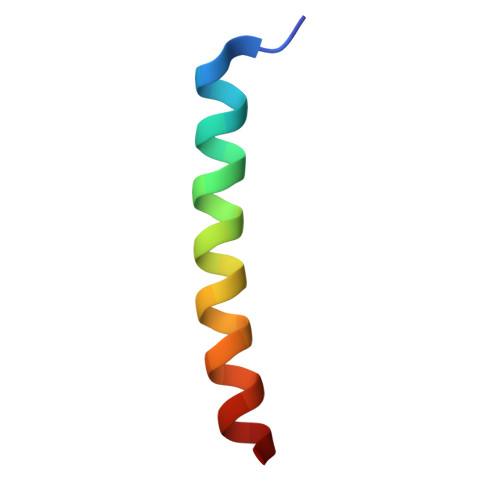

Photosystem I reaction center subunit XII (psaM)	J [auth M]	29	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 11
Molecule	Chains	Sequence Length	Organism	Details	Image

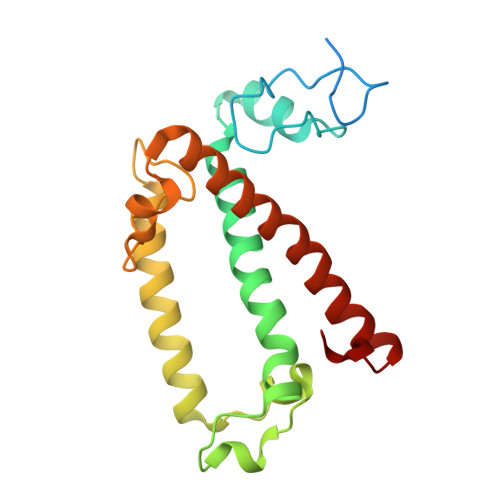

Fucoxanthin chlorophyll a/c binding protein III (FCPI-3)	K [auth O]	201	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 12
Molecule	Chains	Sequence Length	Organism	Details	Image

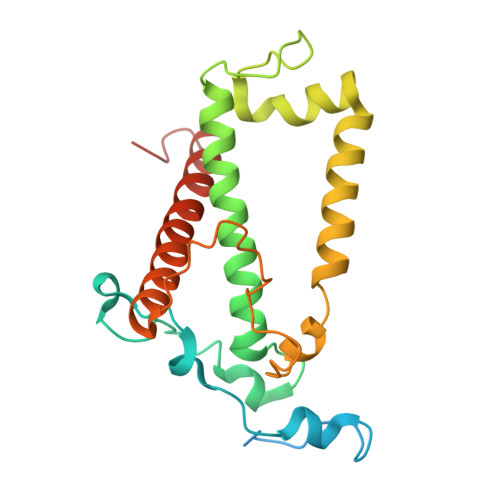

Fucoxanthin chlorophyll a/c binding protein VI (FCPI-6)	L [auth P]	231	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 13
Molecule	Chains	Sequence Length	Organism	Details	Image

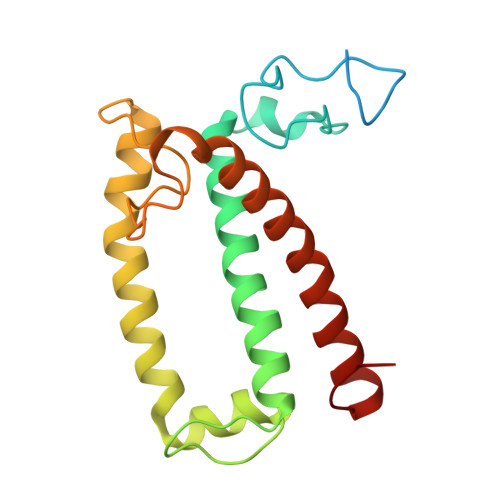

Fucoxanthin chlorophyll a/c binding protein IV (FCPI-4)	M [auth Q]	197	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 14
Molecule	Chains	Sequence Length	Organism	Details	Image

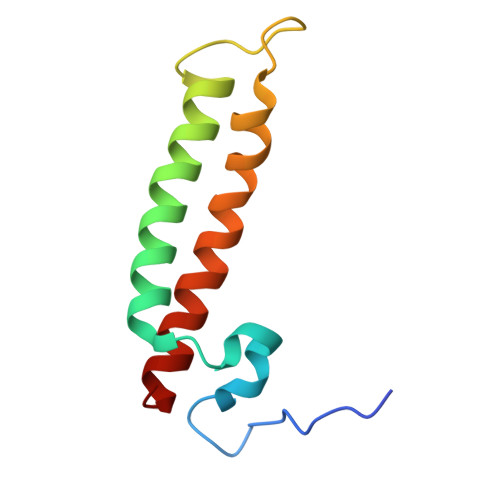

Photosystem I reaction center subunit psaR	N [auth R]	90	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 15
Molecule	Chains	Sequence Length	Organism	Details	Image

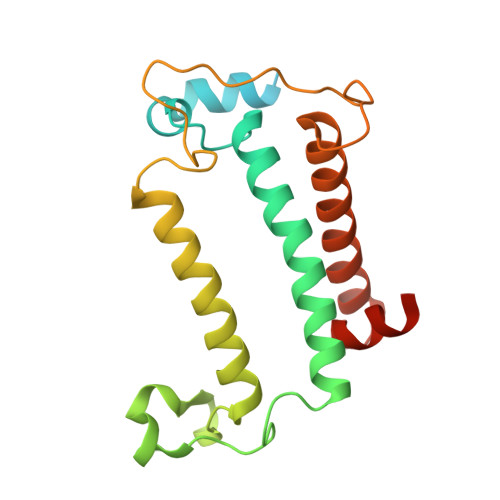

Fucoxanthin chlorophyll a/c binding protein II (FCPI-2)	O [auth S]	215	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 16
Molecule	Chains	Sequence Length	Organism	Details	Image

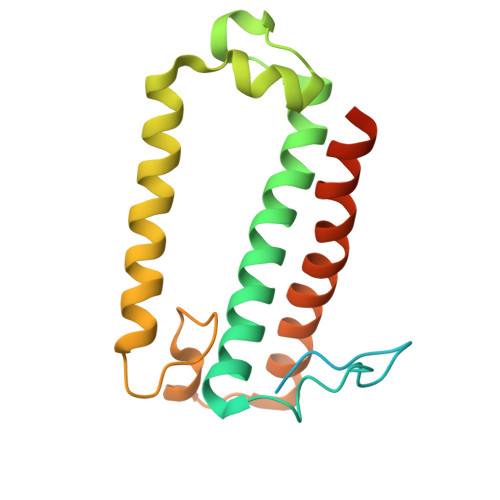

Fucoxanthin chlorophyll a/c binding protein I (FCPI-1)	P [auth U]	191	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 17
Molecule	Chains	Sequence Length	Organism	Details	Image

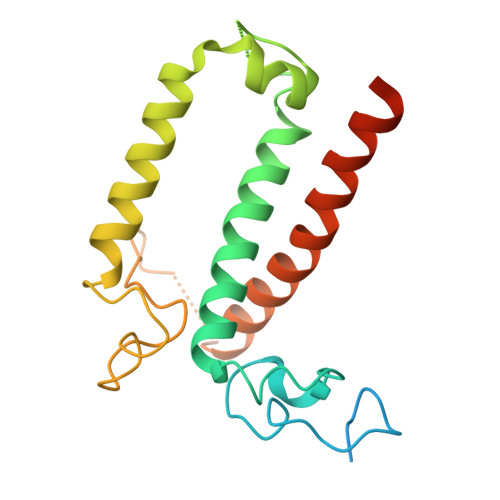

Fucoxanthin chlorophyll a/c binding protein VII (FCPI-7)	Q [auth G]	209	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 18
Molecule	Chains	Sequence Length	Organism	Details	Image

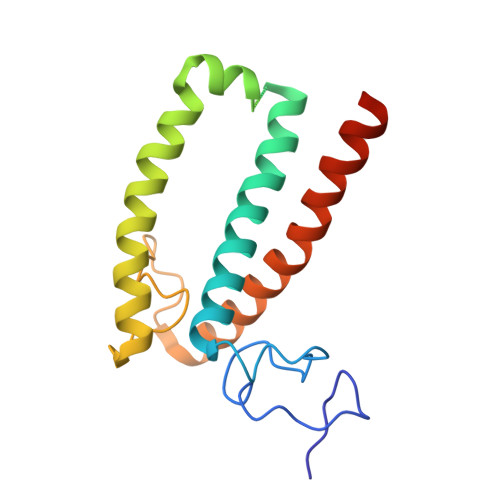

Fucoxanthin chlorophyll a/c binding protein VIII (FCPI-8)	R [auth H]	169	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 19
Molecule	Chains	Sequence Length	Organism	Details	Image
Fucoxanthin chlorophyll a/c binding protein IX (FCPI-9)	S [auth K]	200	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 20
Molecule	Chains	Sequence Length	Organism	Details	Image

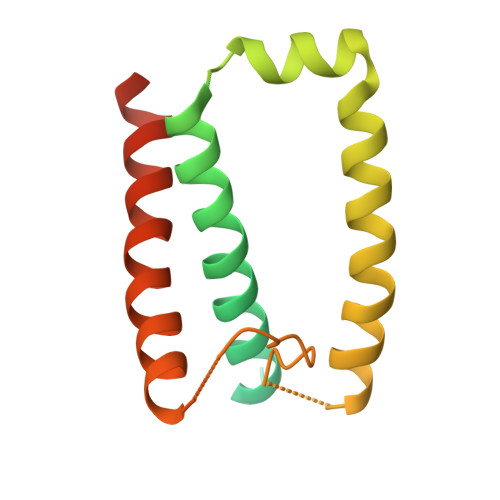

Fucoxanthin chlorophyll a/c binding protein V (FCPI-5)	T	202	Chrysotila roscoffensis	Mutation(s): 0

Find similar proteins by:

| 3D Structure

Entity ID: 21
Molecule	Chains	Sequence Length	Organism	Details	Image

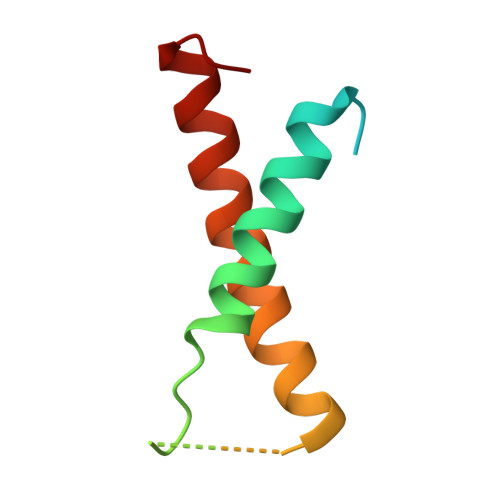

Photosystem I reaction center subunit psaK	U [auth k]	89	Chrysotila roscoffensis	Mutation(s): 0

Small Molecules

Ligands 13 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
DGD Query on DGD Download:Ideal Coordinates CCD File SDF format, chain OD [auth B] MOL2 format, chain OD [auth B] mmCIF format, chain OD [auth B]	OD [auth B]	DIGALACTOSYL DIACYL GLYCEROL (DGDG) C₅₁ H₉₆ O₁₅ LDQFLSUQYHBXSX-HXXRYREZSA-N		Interactions Focus chain OD [auth B] Interactions & Density Focus chain OD [auth B]
CL0 Query on CL0 Download:Ideal Coordinates CCD File SDF format, chain RB [auth A] MOL2 format, chain RB [auth A] mmCIF format, chain RB [auth A]	RB [auth A]	CHLOROPHYLL A ISOMER C₅₅ H₇₂ Mg N₄ O₅ VIQFHHZSLDFWDU-DVXFRRMCSA-M		Interactions Focus chain RB [auth A] Interactions & Density Focus chain RB [auth A]
CLA Query on CLA Download:Ideal Coordinates CCD File SDF format, chain AA [auth A] SDF format, chain AB [auth A] SDF format, chain AC [auth B] SDF format, chain AD [auth B] SDF format, chain AE [auth F] SDF format, chain AF [auth O] SDF format, chain AI [auth U] SDF format, chain AJ [auth H] SDF format, chain AK [auth T] SDF format, chain BA [auth A] SDF format, chain BB [auth A] SDF format, chain BC [auth B] SDF format, chain BD [auth B] SDF format, chain BH [auth S] SDF format, chain BI [auth U] SDF format, chain BJ [auth H] SDF format, chain CA [auth A] SDF format, chain CB [auth A] SDF format, chain CC [auth B] SDF format, chain CD [auth B] SDF format, chain CF [auth O] SDF format, chain CJ [auth H] SDF format, chain DA [auth A] SDF format, chain DB [auth A] SDF format, chain DC [auth B] SDF format, chain DD [auth B] SDF format, chain DJ [auth H] SDF format, chain EA [auth A] SDF format, chain EB [auth A] SDF format, chain EC [auth B] SDF format, chain ED [auth B] SDF format, chain EJ [auth H] SDF format, chain EK [auth k] SDF format, chain FA [auth A] SDF format, chain FC [auth B] SDF format, chain FD [auth B] SDF format, chain FG [auth Q] SDF format, chain FH [auth S] SDF format, chain FI [auth G] SDF format, chain FK [auth k] SDF format, chain GA [auth A] SDF format, chain GB [auth A] SDF format, chain GC [auth B] SDF format, chain GD [auth B] SDF format, chain GH [auth S] SDF format, chain GI [auth G] SDF format, chain HA [auth A] SDF format, chain HC [auth B] SDF format, chain HD [auth B] SDF format, chain HG [auth Q] SDF format, chain HH [auth S] SDF format, chain HI [auth G] SDF format, chain HJ [auth H] SDF format, chain IA [auth A] SDF format, chain IC [auth B] SDF format, chain IE [auth J] SDF format, chain IG [auth Q] SDF format, chain IH [auth S] SDF format, chain II [auth G] SDF format, chain JA [auth A] SDF format, chain JC [auth B] SDF format, chain JG [auth Q] SDF format, chain JI [auth G] SDF format, chain KA [auth A] SDF format, chain KC [auth B] SDF format, chain KG [auth Q] SDF format, chain KI [auth G] SDF format, chain KJ [auth K] SDF format, chain LA [auth A] SDF format, chain LC [auth B] SDF format, chain LE [auth L] SDF format, chain LG [auth Q] SDF format, chain LI [auth G] SDF format, chain LJ [auth K] SDF format, chain MA [auth A] SDF format, chain MC [auth B] SDF format, chain ME [auth L] SDF format, chain MI [auth G] SDF format, chain MJ [auth K] SDF format, chain NA [auth A] SDF format, chain NB [auth A] SDF format, chain NC [auth B] SDF format, chain NG [auth Q] SDF format, chain NI [auth G] SDF format, chain NJ [auth K] SDF format, chain OA [auth A] SDF format, chain OB [auth A] SDF format, chain OC [auth B] SDF format, chain OF [auth P] SDF format, chain OG [auth Q] SDF format, chain OI [auth G] SDF format, chain OJ [auth K] SDF format, chain PA [auth A] SDF format, chain PC [auth B] SDF format, chain PD [auth B] SDF format, chain PF [auth P] SDF format, chain PG [auth Q] SDF format, chain PH [auth S] SDF format, chain QA [auth A] SDF format, chain QB [auth A] SDF format, chain QC [auth B] SDF format, chain QD [auth B] SDF format, chain QF [auth P] SDF format, chain QH [auth S] SDF format, chain QJ [auth T] SDF format, chain RA [auth A] SDF format, chain RC [auth B] SDF format, chain RD [auth B] SDF format, chain RF [auth P] SDF format, chain RJ [auth T] SDF format, chain SA [auth A] SDF format, chain SB [auth A] SDF format, chain SC [auth B] SDF format, chain SD [auth B] SDF format, chain SF [auth P] SDF format, chain SG [auth Q] SDF format, chain SJ [auth T] SDF format, chain TA [auth A] SDF format, chain TB [auth A] SDF format, chain TC [auth B] SDF format, chain TE [auth O] SDF format, chain TI [auth G] SDF format, chain TJ [auth T] SDF format, chain UA [auth A] SDF format, chain UC [auth B] SDF format, chain UD [auth B] SDF format, chain UE [auth O] SDF format, chain UF [auth P] SDF format, chain UH [auth U] SDF format, chain UJ [auth T] SDF format, chain V [auth A] SDF format, chain VA [auth A] SDF format, chain VB [auth A] SDF format, chain VC [auth B] SDF format, chain VE [auth O] SDF format, chain VF [auth P] SDF format, chain VG [auth R] SDF format, chain VH [auth U] SDF format, chain VJ [auth T] SDF format, chain W [auth A] SDF format, chain WA [auth A] SDF format, chain WB [auth A] SDF format, chain WC [auth B] SDF format, chain WE [auth O] SDF format, chain WH [auth U] SDF format, chain WI [auth H] SDF format, chain WJ [auth T] SDF format, chain X [auth A] SDF format, chain XA [auth A] SDF format, chain XB [auth A] SDF format, chain XC [auth B] SDF format, chain XE [auth O] SDF format, chain XF [auth P] SDF format, chain XH [auth U] SDF format, chain XI [auth H] SDF format, chain Y [auth A] SDF format, chain YA [auth A] SDF format, chain YB [auth A] SDF format, chain YC [auth B] SDF format, chain YD [auth F] SDF format, chain YE [auth O] SDF format, chain YG [auth R] SDF format, chain YH [auth U] SDF format, chain YI [auth H] SDF format, chain YJ [auth T] SDF format, chain Z [auth A] SDF format, chain ZA [auth A] SDF format, chain ZC [auth B] SDF format, chain ZD [auth F] SDF format, chain ZE [auth O] SDF format, chain ZH [auth U] SDF format, chain ZI [auth H] SDF format, chain ZJ [auth T] SDF format, chain NE [auth L] SDF format, chain GG [auth Q] MOL2 format, chain AA [auth A] MOL2 format, chain AB [auth A] MOL2 format, chain AC [auth B] MOL2 format, chain AD [auth B] MOL2 format, chain AE [auth F] MOL2 format, chain AF [auth O] MOL2 format, chain AI [auth U] MOL2 format, chain AJ [auth H] MOL2 format, chain AK [auth T] MOL2 format, chain BA [auth A] MOL2 format, chain BB [auth A] MOL2 format, chain BC [auth B] MOL2 format, chain BD [auth B] MOL2 format, chain BH [auth S] MOL2 format, chain BI [auth U] MOL2 format, chain BJ [auth H] MOL2 format, chain CA [auth A] MOL2 format, chain CB [auth A] MOL2 format, chain CC [auth B] MOL2 format, chain CD [auth B] MOL2 format, chain CF [auth O] MOL2 format, chain CJ [auth H] MOL2 format, chain DA [auth A] MOL2 format, chain DB [auth A] MOL2 format, chain DC [auth B] MOL2 format, chain DD [auth B] MOL2 format, chain DJ [auth H] MOL2 format, chain EA [auth A] MOL2 format, chain EB [auth A] MOL2 format, chain EC [auth B] MOL2 format, chain ED [auth B] MOL2 format, chain EJ [auth H] MOL2 format, chain EK [auth k] MOL2 format, chain FA [auth A] MOL2 format, chain FC [auth B] MOL2 format, chain FD [auth B] MOL2 format, chain FG [auth Q] MOL2 format, chain FH [auth S] MOL2 format, chain FI [auth G] MOL2 format, chain FK [auth k] MOL2 format, chain GA [auth A] MOL2 format, chain GB [auth A] MOL2 format, chain GC [auth B] MOL2 format, chain GD [auth B] MOL2 format, chain GH [auth S] MOL2 format, chain GI [auth G] MOL2 format, chain HA [auth A] MOL2 format, chain HC [auth B] MOL2 format, chain HD [auth B] MOL2 format, chain HG [auth Q] MOL2 format, chain HH [auth S] MOL2 format, chain HI [auth G] MOL2 format, chain HJ [auth H] MOL2 format, chain IA [auth A] MOL2 format, chain IC [auth B] MOL2 format, chain IE [auth J] MOL2 format, chain IG [auth Q] MOL2 format, chain IH [auth S] MOL2 format, chain II [auth G] MOL2 format, chain JA [auth A] MOL2 format, chain JC [auth B] MOL2 format, chain JG [auth Q] MOL2 format, chain JI [auth G] MOL2 format, chain KA [auth A] MOL2 format, chain KC [auth B] MOL2 format, chain KG [auth Q] MOL2 format, chain KI [auth G] MOL2 format, chain KJ [auth K] MOL2 format, chain LA [auth A] MOL2 format, chain LC [auth B] MOL2 format, chain LE [auth L] MOL2 format, chain LG [auth Q] MOL2 format, chain LI [auth G] MOL2 format, chain LJ [auth K] MOL2 format, chain MA [auth A] MOL2 format, chain MC [auth B] MOL2 format, chain ME [auth L] MOL2 format, chain MI [auth G] MOL2 format, chain MJ [auth K] MOL2 format, chain NA [auth A] MOL2 format, chain NB [auth A] MOL2 format, chain NC [auth B] MOL2 format, chain NG [auth Q] MOL2 format, chain NI [auth G] MOL2 format, chain NJ [auth K] MOL2 format, chain OA [auth A] MOL2 format, chain OB [auth A] MOL2 format, chain OC [auth B] MOL2 format, chain OF [auth P] MOL2 format, chain OG [auth Q] MOL2 format, chain OI [auth G] MOL2 format, chain OJ [auth K] MOL2 format, chain PA [auth A] MOL2 format, chain PC [auth B] MOL2 format, chain PD [auth B] MOL2 format, chain PF [auth P] MOL2 format, chain PG [auth Q] MOL2 format, chain PH [auth S] MOL2 format, chain QA [auth A] MOL2 format, chain QB [auth A] MOL2 format, chain QC [auth B] MOL2 format, chain QD [auth B] MOL2 format, chain QF [auth P] MOL2 format, chain QH [auth S] MOL2 format, chain QJ [auth T] MOL2 format, chain RA [auth A] MOL2 format, chain RC [auth B] MOL2 format, chain RD [auth B] MOL2 format, chain RF [auth P] MOL2 format, chain RJ [auth T] MOL2 format, chain SA [auth A] MOL2 format, chain SB [auth A] MOL2 format, chain SC [auth B] MOL2 format, chain SD [auth B] MOL2 format, chain SF [auth P] MOL2 format, chain SG [auth Q] MOL2 format, chain SJ [auth T] MOL2 format, chain TA [auth A] MOL2 format, chain TB [auth A] MOL2 format, chain TC [auth B] MOL2 format, chain TE [auth O] MOL2 format, chain TI [auth G] MOL2 format, chain TJ [auth T] MOL2 format, chain UA [auth A] MOL2 format, chain UC [auth B] MOL2 format, chain UD [auth B] MOL2 format, chain UE [auth O] MOL2 format, chain UF [auth P] MOL2 format, chain UH [auth U] MOL2 format, chain UJ [auth T] MOL2 format, chain V [auth A] MOL2 format, chain VA [auth A] MOL2 format, chain VB [auth A] MOL2 format, chain VC [auth B] MOL2 format, chain VE [auth O] MOL2 format, chain VF [auth P] MOL2 format, chain VG [auth R] MOL2 format, chain VH [auth U] MOL2 format, chain VJ [auth T] MOL2 format, chain W [auth A] MOL2 format, chain WA [auth A] MOL2 format, chain WB [auth A] MOL2 format, chain WC [auth B] MOL2 format, chain WE [auth O] MOL2 format, chain WH [auth U] MOL2 format, chain WI [auth H] MOL2 format, chain WJ [auth T] MOL2 format, chain X [auth A] MOL2 format, chain XA [auth A] MOL2 format, chain XB [auth A] MOL2 format, chain XC [auth B] MOL2 format, chain XE [auth O] MOL2 format, chain XF [auth P] MOL2 format, chain XH [auth U] MOL2 format, chain XI [auth H] MOL2 format, chain Y [auth A] MOL2 format, chain YA [auth A] MOL2 format, chain YB [auth A] MOL2 format, chain YC [auth B] MOL2 format, chain YD [auth F] MOL2 format, chain YE [auth O] MOL2 format, chain YG [auth R] MOL2 format, chain YH [auth U] MOL2 format, chain YI [auth H] MOL2 format, chain YJ [auth T] MOL2 format, chain Z [auth A] MOL2 format, chain ZA [auth A] MOL2 format, chain ZC [auth B] MOL2 format, chain ZD [auth F] MOL2 format, chain ZE [auth O] MOL2 format, chain ZH [auth U] MOL2 format, chain ZI [auth H] MOL2 format, chain ZJ [auth T] MOL2 format, chain NE [auth L] MOL2 format, chain GG [auth Q] mmCIF format, chain AA [auth A] mmCIF format, chain AB [auth A] mmCIF format, chain AC [auth B] mmCIF format, chain AD [auth B] mmCIF format, chain AE [auth F] mmCIF format, chain AF [auth O] mmCIF format, chain AI [auth U] mmCIF format, chain AJ [auth H] mmCIF format, chain AK [auth T] mmCIF format, chain BA [auth A] mmCIF format, chain BB [auth A] mmCIF format, chain BC [auth B] mmCIF format, chain BD [auth B] mmCIF format, chain BH [auth S] mmCIF format, chain BI [auth U] mmCIF format, chain BJ [auth H] mmCIF format, chain CA [auth A] mmCIF format, chain CB [auth A] mmCIF format, chain CC [auth B] mmCIF format, chain CD [auth B] mmCIF format, chain CF [auth O] mmCIF format, chain CJ [auth H] mmCIF format, chain DA [auth A] mmCIF format, chain DB [auth A] mmCIF format, chain DC [auth B] mmCIF format, chain DD [auth B] mmCIF format, chain DJ [auth H] mmCIF format, chain EA [auth A] mmCIF format, chain EB [auth A] mmCIF format, chain EC [auth B] mmCIF format, chain ED [auth B] mmCIF format, chain EJ [auth H] mmCIF format, chain EK [auth k] mmCIF format, chain FA [auth A] mmCIF format, chain FC [auth B] mmCIF format, chain FD [auth B] mmCIF format, chain FG [auth Q] mmCIF format, chain FH [auth S] mmCIF format, chain FI [auth G] mmCIF format, chain FK [auth k] mmCIF format, chain GA [auth A] mmCIF format, chain GB [auth A] mmCIF format, chain GC [auth B] mmCIF format, chain GD [auth B] mmCIF format, chain GH [auth S] mmCIF format, chain GI [auth G] mmCIF format, chain HA [auth A] mmCIF format, chain HC [auth B] mmCIF format, chain HD [auth B] mmCIF format, chain HG [auth Q] mmCIF format, chain HH [auth S] mmCIF format, chain HI [auth G] mmCIF format, chain HJ [auth H] mmCIF format, chain IA [auth A] mmCIF format, chain IC [auth B] mmCIF format, chain IE [auth J] mmCIF format, chain IG [auth Q] mmCIF format, chain IH [auth S] mmCIF format, chain II [auth G] mmCIF format, chain JA [auth A] mmCIF format, chain JC [auth B] mmCIF format, chain JG [auth Q] mmCIF format, chain JI [auth G] mmCIF format, chain KA [auth A] mmCIF format, chain KC [auth B] mmCIF format, chain KG [auth Q] mmCIF format, chain KI [auth G] mmCIF format, chain KJ [auth K] mmCIF format, chain LA [auth A] mmCIF format, chain LC [auth B] mmCIF format, chain LE [auth L] mmCIF format, chain LG [auth Q] mmCIF format, chain LI [auth G] mmCIF format, chain LJ [auth K] mmCIF format, chain MA [auth A] mmCIF format, chain MC [auth B] mmCIF format, chain ME [auth L] mmCIF format, chain MI [auth G] mmCIF format, chain MJ [auth K] mmCIF format, chain NA [auth A] mmCIF format, chain NB [auth A] mmCIF format, chain NC [auth B] mmCIF format, chain NG [auth Q] mmCIF format, chain NI [auth G] mmCIF format, chain NJ [auth K] mmCIF format, chain OA [auth A] mmCIF format, chain OB [auth A] mmCIF format, chain OC [auth B] mmCIF format, chain OF [auth P] mmCIF format, chain OG [auth Q] mmCIF format, chain OI [auth G] mmCIF format, chain OJ [auth K] mmCIF format, chain PA [auth A] mmCIF format, chain PC [auth B] mmCIF format, chain PD [auth B] mmCIF format, chain PF [auth P] mmCIF format, chain PG [auth Q] mmCIF format, chain PH [auth S] mmCIF format, chain QA [auth A] mmCIF format, chain QB [auth A] mmCIF format, chain QC [auth B] mmCIF format, chain QD [auth B] mmCIF format, chain QF [auth P] mmCIF format, chain QH [auth S] mmCIF format, chain QJ [auth T] mmCIF format, chain RA [auth A] mmCIF format, chain RC [auth B] mmCIF format, chain RD [auth B] mmCIF format, chain RF [auth P] mmCIF format, chain RJ [auth T] mmCIF format, chain SA [auth A] mmCIF format, chain SB [auth A] mmCIF format, chain SC [auth B] mmCIF format, chain SD [auth B] mmCIF format, chain SF [auth P] mmCIF format, chain SG [auth Q] mmCIF format, chain SJ [auth T] mmCIF format, chain TA [auth A] mmCIF format, chain TB [auth A] mmCIF format, chain TC [auth B] mmCIF format, chain TE [auth O] mmCIF format, chain TI [auth G] mmCIF format, chain TJ [auth T] mmCIF format, chain UA [auth A] mmCIF format, chain UC [auth B] mmCIF format, chain UD [auth B] mmCIF format, chain UE [auth O] mmCIF format, chain UF [auth P] mmCIF format, chain UH [auth U] mmCIF format, chain UJ [auth T] mmCIF format, chain V [auth A] mmCIF format, chain VA [auth A] mmCIF format, chain VB [auth A] mmCIF format, chain VC [auth B] mmCIF format, chain VE [auth O] mmCIF format, chain VF [auth P] mmCIF format, chain VG [auth R] mmCIF format, chain VH [auth U] mmCIF format, chain VJ [auth T] mmCIF format, chain W [auth A] mmCIF format, chain WA [auth A] mmCIF format, chain WB [auth A] mmCIF format, chain WC [auth B] mmCIF format, chain WE [auth O] mmCIF format, chain WH [auth U] mmCIF format, chain WI [auth H] mmCIF format, chain WJ [auth T] mmCIF format, chain X [auth A] mmCIF format, chain XA [auth A] mmCIF format, chain XB [auth A] mmCIF format, chain XC [auth B] mmCIF format, chain XE [auth O] mmCIF format, chain XF [auth P] mmCIF format, chain XH [auth U] mmCIF format, chain XI [auth H] mmCIF format, chain Y [auth A] mmCIF format, chain YA [auth A] mmCIF format, chain YB [auth A] mmCIF format, chain YC [auth B] mmCIF format, chain YD [auth F] mmCIF format, chain YE [auth O] mmCIF format, chain YG [auth R] mmCIF format, chain YH [auth U] mmCIF format, chain YI [auth H] mmCIF format, chain YJ [auth T] mmCIF format, chain Z [auth A] mmCIF format, chain ZA [auth A] mmCIF format, chain ZC [auth B] mmCIF format, chain ZD [auth F] mmCIF format, chain ZE [auth O] mmCIF format, chain ZH [auth U] mmCIF format, chain ZI [auth H] mmCIF format, chain ZJ [auth T] mmCIF format, chain NE [auth L] mmCIF format, chain GG [auth Q]	AA [auth A] AB [auth A] AC [auth B] AD [auth B] AE [auth F] AA [auth A], AB [auth A], AC [auth B], AD [auth B], AE [auth F], AF [auth O], AI [auth U], AJ [auth H], AK [auth T], BA [auth A], BB [auth A], BC [auth B], BD [auth B], BH [auth S], BI [auth U], BJ [auth H], CA [auth A], CB [auth A], CC [auth B], CD [auth B], CF [auth O], CJ [auth H], DA [auth A], DB [auth A], DC [auth B], DD [auth B], DJ [auth H], EA [auth A], EB [auth A], EC [auth B], ED [auth B], EJ [auth H], EK [auth k], FA [auth A], FC [auth B], FD [auth B], FG [auth Q], FH [auth S], FI [auth G], FK [auth k], GA [auth A], GB [auth A], GC [auth B], GD [auth B], GG [auth Q], GH [auth S], GI [auth G], HA [auth A], HC [auth B], HD [auth B], HG [auth Q], HH [auth S], HI [auth G], HJ [auth H], IA [auth A], IC [auth B], IE [auth J], IG [auth Q], IH [auth S], II [auth G], JA [auth A], JC [auth B], JG [auth Q], JI [auth G], KA [auth A], KC [auth B], KG [auth Q], KI [auth G], KJ [auth K], LA [auth A], LC [auth B], LE [auth L], LG [auth Q], LI [auth G], LJ [auth K], MA [auth A], MC [auth B], ME [auth L], MI [auth G], MJ [auth K], NA [auth A], NB [auth A], NC [auth B], NE [auth L], NG [auth Q], NI [auth G], NJ [auth K], OA [auth A], OB [auth A], OC [auth B], OF [auth P], OG [auth Q], OI [auth G], OJ [auth K], PA [auth A], PC [auth B], PD [auth B], PF [auth P], PG [auth Q], PH [auth S], QA [auth A], QB [auth A], QC [auth B], QD [auth B], QF [auth P], QH [auth S], QJ [auth T], RA [auth A], RC [auth B], RD [auth B], RF [auth P], RJ [auth T], SA [auth A], SB [auth A], SC [auth B], SD [auth B], SF [auth P], SG [auth Q], SJ [auth T], TA [auth A], TB [auth A], TC [auth B], TE [auth O], TI [auth G], TJ [auth T], UA [auth A], UC [auth B], UD [auth B], UE [auth O], UF [auth P], UH [auth U], UJ [auth T], V [auth A], VA [auth A], VB [auth A], VC [auth B], VE [auth O], VF [auth P], VG [auth R], VH [auth U], VJ [auth T], W [auth A], WA [auth A], WB [auth A], WC [auth B], WE [auth O], WH [auth U], WI [auth H], WJ [auth T], X [auth A], XA [auth A], XB [auth A], XC [auth B], XE [auth O], XF [auth P], XH [auth U], XI [auth H], Y [auth A], YA [auth A], YB [auth A], YC [auth B], YD [auth F], YE [auth O], YG [auth R], YH [auth U], YI [auth H], YJ [auth T], Z [auth A], ZA [auth A], ZC [auth B], ZD [auth F], ZE [auth O], ZH [auth U], ZI [auth H], ZJ [auth T]	CHLOROPHYLL A C₅₅ H₇₂ Mg N₄ O₅ ATNHDLDRLWWWCB-AENOIHSZSA-M		Interactions Focus chain AA [auth A] Focus chain AB [auth A] Focus chain AC [auth B] Focus chain AD [auth B] Focus chain AE [auth F] Focus chain AF [auth O] Focus chain AI [auth U] Focus chain AJ [auth H] Focus chain AK [auth T] Focus chain BA [auth A] Focus chain BB [auth A] Focus chain BC [auth B] Focus chain BD [auth B] Focus chain BH [auth S] Focus chain BI [auth U] Focus chain BJ [auth H] Focus chain CA [auth A] Focus chain CB [auth A] Focus chain CC [auth B] Focus chain CD [auth B] Focus chain CF [auth O] Focus chain CJ [auth H] Focus chain DA [auth A] Focus chain DB [auth A] Focus chain DC [auth B] Focus chain DD [auth B] Focus chain DJ [auth H] Focus chain EA [auth A] Focus chain EB [auth A] Focus chain EC [auth B] Focus chain ED [auth B] Focus chain EJ [auth H] Focus chain EK [auth k] Focus chain FA [auth A] Focus chain FC [auth B] Focus chain FD [auth B] Focus chain FG [auth Q] Focus chain FH [auth S] Focus chain FI [auth G] Focus chain FK [auth k] Focus chain GA [auth A] Focus chain GB [auth A] Focus chain GC [auth B] Focus chain GD [auth B] Focus chain GG [auth Q] Focus chain GH [auth S] Focus chain GI [auth G] Focus chain HA [auth A] Focus chain HC [auth B] Focus chain HD [auth B] Focus chain HG [auth Q] Focus chain HH [auth S] Focus chain HI [auth G] Focus chain HJ [auth H] Focus chain IA [auth A] Focus chain IC [auth B] Focus chain IE [auth J] Focus chain IG [auth Q] Focus chain IH [auth S] Focus chain II [auth G] Focus chain JA [auth A] Focus chain JC [auth B] Focus chain JG [auth Q] Focus chain JI [auth G] Focus chain KA [auth A] Focus chain KC [auth B] Focus chain KG [auth Q] Focus chain KI [auth G] Focus chain KJ [auth K] Focus chain LA [auth A] Focus chain LC [auth B] Focus chain LE [auth L] Focus chain LG [auth Q] Focus chain LI [auth G] Focus chain LJ [auth K] Focus chain MA [auth A] Focus chain MC [auth B] Focus chain ME [auth L] Focus chain MI [auth G] Focus chain MJ [auth K] Focus chain NA [auth A] Focus chain NB [auth A] Focus chain NC [auth B] Focus chain NE [auth L] Focus chain NG [auth Q] Focus chain NI [auth G] Focus chain NJ [auth K] Focus chain OA [auth A] Focus chain OB [auth A] Focus chain OC [auth B] Focus chain OF [auth P] Focus chain OG [auth Q] Focus chain OI [auth G] Focus chain OJ [auth K] Focus chain PA [auth A] Focus chain PC [auth B] Focus chain PD [auth B] Focus chain PF [auth P] Focus chain PG [auth Q] Focus chain PH [auth S] Focus chain QA [auth A] Focus chain QB [auth A] Focus chain QC [auth B] Focus chain QD [auth B] Focus chain QF [auth P] Focus chain QH [auth S] Focus chain QJ [auth T] Focus chain RA [auth A] Focus chain RC [auth B] Focus chain RD [auth B] Focus chain RF [auth P] Focus chain RJ [auth T] Focus chain SA [auth A] Focus chain SB [auth A] Focus chain SC [auth B] Focus chain SD [auth B] Focus chain SF [auth P] Focus chain SG [auth Q] Focus chain SJ [auth T] Focus chain TA [auth A] Focus chain TB [auth A] Focus chain TC [auth B] Focus chain TE [auth O] Focus chain TI [auth G] Focus chain TJ [auth T] Focus chain UA [auth A] Focus chain UC [auth B] Focus chain UD [auth B] Focus chain UE [auth O] Focus chain UF [auth P] Focus chain UH [auth U] Focus chain UJ [auth T] Focus chain V [auth A] Focus chain VA [auth A] Focus chain VB [auth A] Focus chain VC [auth B] Focus chain VE [auth O] Focus chain VF [auth P] Focus chain VG [auth R] Focus chain VH [auth U] Focus chain VJ [auth T] Focus chain W [auth A] Focus chain WA [auth A] Focus chain WB [auth A] Focus chain WC [auth B] Focus chain WE [auth O] Focus chain WH [auth U] Focus chain WI [auth H] Focus chain WJ [auth T] Focus chain X [auth A] Focus chain XA [auth A] Focus chain XB [auth A] Focus chain XC [auth B] Focus chain XE [auth O] Focus chain XF [auth P] Focus chain XH [auth U] Focus chain XI [auth H] Focus chain Y [auth A] Focus chain YA [auth A] Focus chain YB [auth A] Focus chain YC [auth B] Focus chain YD [auth F] Focus chain YE [auth O] Focus chain YG [auth R] Focus chain YH [auth U] Focus chain YI [auth H] Focus chain YJ [auth T] Focus chain Z [auth A] Focus chain ZA [auth A] Focus chain ZC [auth B] Focus chain ZD [auth F] Focus chain ZE [auth O] Focus chain ZH [auth U] Focus chain ZI [auth H] Focus chain ZJ [auth T] Interactions & Density Focus chain AA [auth A] Focus chain AB [auth A] Focus chain AC [auth B] Focus chain AD [auth B] Focus chain AE [auth F] Focus chain AF [auth O] Focus chain AI [auth U] Focus chain AJ [auth H] Focus chain AK [auth T] Focus chain BA [auth A] Focus chain BB [auth A] Focus chain BC [auth B] Focus chain BD [auth B] Focus chain BH [auth S] Focus chain BI [auth U] Focus chain BJ [auth H] Focus chain CA [auth A] Focus chain CB [auth A] Focus chain CC [auth B] Focus chain CD [auth B] Focus chain CF [auth O] Focus chain CJ [auth H] Focus chain DA [auth A] Focus chain DB [auth A] Focus chain DC [auth B] Focus chain DD [auth B] Focus chain DJ [auth H] Focus chain EA [auth A] Focus chain EB [auth A] Focus chain EC [auth B] Focus chain ED [auth B] Focus chain EJ [auth H] Focus chain EK [auth k] Focus chain FA [auth A] Focus chain FC [auth B] Focus chain FD [auth B] Focus chain FG [auth Q] Focus chain FH [auth S] Focus chain FI [auth G] Focus chain FK [auth k] Focus chain GA [auth A] Focus chain GB [auth A] Focus chain GC [auth B] Focus chain GD [auth B] Focus chain GG [auth Q] Focus chain GH [auth S] Focus chain GI [auth G] Focus chain HA [auth A] Focus chain HC [auth B] Focus chain HD [auth B] Focus chain HG [auth Q] Focus chain HH [auth S] Focus chain HI [auth G] Focus chain HJ [auth H] Focus chain IA [auth A] Focus chain IC [auth B] Focus chain IE [auth J] Focus chain IG [auth Q] Focus chain IH [auth S] Focus chain II [auth G] Focus chain JA [auth A] Focus chain JC [auth B] Focus chain JG [auth Q] Focus chain JI [auth G] Focus chain KA [auth A] Focus chain KC [auth B] Focus chain KG [auth Q] Focus chain KI [auth G] Focus chain KJ [auth K] Focus chain LA [auth A] Focus chain LC [auth B] Focus chain LE [auth L] Focus chain LG [auth Q] Focus chain LI [auth G] Focus chain LJ [auth K] Focus chain MA [auth A] Focus chain MC [auth B] Focus chain ME [auth L] Focus chain MI [auth G] Focus chain MJ [auth K] Focus chain NA [auth A] Focus chain NB [auth A] Focus chain NC [auth B] Focus chain NE [auth L] Focus chain NG [auth Q] Focus chain NI [auth G] Focus chain NJ [auth K] Focus chain OA [auth A] Focus chain OB [auth A] Focus chain OC [auth B] Focus chain OF [auth P] Focus chain OG [auth Q] Focus chain OI [auth G] Focus chain OJ [auth K] Focus chain PA [auth A] Focus chain PC [auth B] Focus chain PD [auth B] Focus chain PF [auth P] Focus chain PG [auth Q] Focus chain PH [auth S] Focus chain QA [auth A] Focus chain QB [auth A] Focus chain QC [auth B] Focus chain QD [auth B] Focus chain QF [auth P] Focus chain QH [auth S] Focus chain QJ [auth T] Focus chain RA [auth A] Focus chain RC [auth B] Focus chain RD [auth B] Focus chain RF [auth P] Focus chain RJ [auth T] Focus chain SA [auth A] Focus chain SB [auth A] Focus chain SC [auth B] Focus chain SD [auth B] Focus chain SF [auth P] Focus chain SG [auth Q] Focus chain SJ [auth T] Focus chain TA [auth A] Focus chain TB [auth A] Focus chain TC [auth B] Focus chain TE [auth O] Focus chain TI [auth G] Focus chain TJ [auth T] Focus chain UA [auth A] Focus chain UC [auth B] Focus chain UD [auth B] Focus chain UE [auth O] Focus chain UF [auth P] Focus chain UH [auth U] Focus chain UJ [auth T] Focus chain V [auth A] Focus chain VA [auth A] Focus chain VB [auth A] Focus chain VC [auth B] Focus chain VE [auth O] Focus chain VF [auth P] Focus chain VG [auth R] Focus chain VH [auth U] Focus chain VJ [auth T] Focus chain W [auth A] Focus chain WA [auth A] Focus chain WB [auth A] Focus chain WC [auth B] Focus chain WE [auth O] Focus chain WH [auth U] Focus chain WI [auth H] Focus chain WJ [auth T] Focus chain X [auth A] Focus chain XA [auth A] Focus chain XB [auth A] Focus chain XC [auth B] Focus chain XE [auth O] Focus chain XF [auth P] Focus chain XH [auth U] Focus chain XI [auth H] Focus chain Y [auth A] Focus chain YA [auth A] Focus chain YB [auth A] Focus chain YC [auth B] Focus chain YD [auth F] Focus chain YE [auth O] Focus chain YG [auth R] Focus chain YH [auth U] Focus chain YI [auth H] Focus chain YJ [auth T] Focus chain Z [auth A] Focus chain ZA [auth A] Focus chain ZC [auth B] Focus chain ZD [auth F] Focus chain ZE [auth O] Focus chain ZH [auth U] Focus chain ZI [auth H] Focus chain ZJ [auth T]
SQD (Subject of Investigation/LOI) Query on SQD Download:Ideal Coordinates CCD File SDF format, chain AH [auth S] SDF format, chain TD [auth B] MOL2 format, chain AH [auth S] MOL2 format, chain TD [auth B] mmCIF format, chain AH [auth S] mmCIF format, chain TD [auth B]	AH [auth S], TD [auth B]	1,2-DI-O-ACYL-3-O-[6-DEOXY-6-SULFO-ALPHA-D-GLUCOPYRANOSYL]-SN-GLYCEROL C₄₁ H₇₈ O₁₂ S RVUUQPKXGDTQPG-JUDHQOGESA-N		Interactions Focus chain AH [auth S] Focus chain TD [auth B] Interactions & Density Focus chain AH [auth S] Focus chain TD [auth B]
LMG Query on LMG Download:Ideal Coordinates CCD File SDF format, chain HE [auth J] SDF format, chain JF [auth P] SDF format, chain MH [auth S] SDF format, chain RH [auth U] SDF format, chain TG [auth Q] SDF format, chain YF [auth P] MOL2 format, chain HE [auth J] MOL2 format, chain JF [auth P] MOL2 format, chain MH [auth S] MOL2 format, chain RH [auth U] MOL2 format, chain TG [auth Q] MOL2 format, chain YF [auth P] mmCIF format, chain HE [auth J] mmCIF format, chain JF [auth P] mmCIF format, chain MH [auth S] mmCIF format, chain RH [auth U] mmCIF format, chain TG [auth Q] mmCIF format, chain YF [auth P]	HE [auth J] JF [auth P] MH [auth S] RH [auth U] TG [auth Q] HE [auth J], JF [auth P], MH [auth S], RH [auth U], TG [auth Q], YF [auth P]	1,2-DISTEAROYL-MONOGALACTOSYL-DIGLYCERIDE C₄₅ H₈₆ O₁₀ DCLTVZLYPPIIID-CVELTQQQSA-N		Interactions Focus chain HE [auth J] Focus chain JF [auth P] Focus chain MH [auth S] Focus chain RH [auth U] Focus chain TG [auth Q] Focus chain YF [auth P] Interactions & Density Focus chain HE [auth J] Focus chain JF [auth P] Focus chain MH [auth S] Focus chain RH [auth U] Focus chain TG [auth Q] Focus chain YF [auth P]
LHG Query on LHG Download:Ideal Coordinates CCD File SDF format, chain HB [auth A] SDF format, chain IB [auth A] SDF format, chain IF [auth P] SDF format, chain UI [auth G] MOL2 format, chain HB [auth A] MOL2 format, chain IB [auth A] MOL2 format, chain IF [auth P] MOL2 format, chain UI [auth G] mmCIF format, chain HB [auth A] mmCIF format, chain IB [auth A] mmCIF format, chain IF [auth P] mmCIF format, chain UI [auth G]	HB [auth A], IB [auth A], IF [auth P], UI [auth G]	1,2-DIPALMITOYL-PHOSPHATIDYL-GLYCEROLE C₃₈ H₇₅ O₁₀ P BIABMEZBCHDPBV-MPQUPPDSSA-N		Interactions Focus chain HB [auth A] Focus chain IB [auth A] Focus chain IF [auth P] Focus chain UI [auth G] Interactions & Density Focus chain HB [auth A] Focus chain IB [auth A] Focus chain IF [auth P] Focus chain UI [auth G]
A86 Query on A86 Download:Ideal Coordinates CCD File SDF format, chain DG [auth Q] SDF format, chain LF [auth P] SDF format, chain QG [auth Q] SDF format, chain SH [auth U] SDF format, chain UG [auth Q] SDF format, chain XG [auth R] SDF format, chain ZG [auth R] MOL2 format, chain DG [auth Q] MOL2 format, chain LF [auth P] MOL2 format, chain QG [auth Q] MOL2 format, chain SH [auth U] MOL2 format, chain UG [auth Q] MOL2 format, chain XG [auth R] MOL2 format, chain ZG [auth R] mmCIF format, chain DG [auth Q] mmCIF format, chain LF [auth P] mmCIF format, chain QG [auth Q] mmCIF format, chain SH [auth U] mmCIF format, chain UG [auth Q] mmCIF format, chain XG [auth R] mmCIF format, chain ZG [auth R]	DG [auth Q] LF [auth P] QG [auth Q] SH [auth U] UG [auth Q] DG [auth Q], LF [auth P], QG [auth Q], SH [auth U], UG [auth Q], XG [auth R], ZG [auth R]	(3S,3'S,5R,5'R,6S,6'R,8'R)-3,5'-dihydroxy-8-oxo-6',7'-didehydro-5,5',6,6',7,8-hexahydro-5,6-epoxy-beta,beta-caroten-3'- yl acetate C₄₂ H₅₈ O₆ SJWWTRQNNRNTPU-XJUZQKKNSA-N		Interactions Focus chain DG [auth Q] Focus chain LF [auth P] Focus chain QG [auth Q] Focus chain SH [auth U] Focus chain UG [auth Q] Focus chain XG [auth R] Focus chain ZG [auth R] Interactions & Density Focus chain DG [auth Q] Focus chain LF [auth P] Focus chain QG [auth Q] Focus chain SH [auth U] Focus chain UG [auth Q] Focus chain XG [auth R] Focus chain ZG [auth R]
KC1 Query on KC1 Download:Ideal Coordinates CCD File SDF format, chain AG [auth P] SDF format, chain BF [auth O] SDF format, chain DI [auth U] SDF format, chain JH [auth S] SDF format, chain KF [auth P] SDF format, chain LH [auth S] SDF format, chain MG [auth Q] SDF format, chain NF [auth P] SDF format, chain TF [auth P] SDF format, chain XJ [auth T] MOL2 format, chain AG [auth P] MOL2 format, chain BF [auth O] MOL2 format, chain DI [auth U] MOL2 format, chain JH [auth S] MOL2 format, chain KF [auth P] MOL2 format, chain LH [auth S] MOL2 format, chain MG [auth Q] MOL2 format, chain NF [auth P] MOL2 format, chain TF [auth P] MOL2 format, chain XJ [auth T] mmCIF format, chain AG [auth P] mmCIF format, chain BF [auth O] mmCIF format, chain DI [auth U] mmCIF format, chain JH [auth S] mmCIF format, chain KF [auth P] mmCIF format, chain LH [auth S] mmCIF format, chain MG [auth Q] mmCIF format, chain NF [auth P] mmCIF format, chain TF [auth P] mmCIF format, chain XJ [auth T]	AG [auth P] BF [auth O] DI [auth U] JH [auth S] KF [auth P] AG [auth P], BF [auth O], DI [auth U], JH [auth S], KF [auth P], LH [auth S], MG [auth Q], NF [auth P], TF [auth P], XJ [auth T]	Chlorophyll c1 C₃₅ H₃₀ Mg N₄ O₅ DGNIJJSSARBJSH-QIEHNWLWSA-L		Interactions Focus chain AG [auth P] Focus chain BF [auth O] Focus chain DI [auth U] Focus chain JH [auth S] Focus chain KF [auth P] Focus chain LH [auth S] Focus chain MG [auth Q] Focus chain NF [auth P] Focus chain TF [auth P] Focus chain XJ [auth T] Interactions & Density Focus chain AG [auth P] Focus chain BF [auth O] Focus chain DI [auth U] Focus chain JH [auth S] Focus chain KF [auth P] Focus chain LH [auth S] Focus chain MG [auth Q] Focus chain NF [auth P] Focus chain TF [auth P] Focus chain XJ [auth T]
DD6 Query on DD6 Download:Ideal Coordinates CCD File SDF format, chain BG [auth P] SDF format, chain BK [auth T] SDF format, chain CI [auth U] SDF format, chain CK [auth T] SDF format, chain DF [auth O] SDF format, chain DH [auth S] SDF format, chain DK [auth k] SDF format, chain EF [auth O] SDF format, chain EG [auth Q] SDF format, chain EH [auth S] SDF format, chain EI [auth U] SDF format, chain FF [auth O] SDF format, chain FJ [auth H] SDF format, chain GE [auth J] SDF format, chain GF [auth O] SDF format, chain GJ [auth H] SDF format, chain KH [auth S] SDF format, chain MF [auth P] SDF format, chain NH [auth S] SDF format, chain OH [auth S] SDF format, chain PI [auth G] SDF format, chain PJ [auth K] SDF format, chain QI [auth G] SDF format, chain RG [auth Q] SDF format, chain RI [auth G] SDF format, chain SE [auth O] SDF format, chain SI [auth G] SDF format, chain TH [auth U] SDF format, chain VI [auth H] SDF format, chain WF [auth P] SDF format, chain ZF [auth P] MOL2 format, chain BG [auth P] MOL2 format, chain BK [auth T] MOL2 format, chain CI [auth U] MOL2 format, chain CK [auth T] MOL2 format, chain DF [auth O] MOL2 format, chain DH [auth S] MOL2 format, chain DK [auth k] MOL2 format, chain EF [auth O] MOL2 format, chain EG [auth Q] MOL2 format, chain EH [auth S] MOL2 format, chain EI [auth U] MOL2 format, chain FF [auth O] MOL2 format, chain FJ [auth H] MOL2 format, chain GE [auth J] MOL2 format, chain GF [auth O] MOL2 format, chain GJ [auth H] MOL2 format, chain KH [auth S] MOL2 format, chain MF [auth P] MOL2 format, chain NH [auth S] MOL2 format, chain OH [auth S] MOL2 format, chain PI [auth G] MOL2 format, chain PJ [auth K] MOL2 format, chain QI [auth G] MOL2 format, chain RG [auth Q] MOL2 format, chain RI [auth G] MOL2 format, chain SE [auth O] MOL2 format, chain SI [auth G] MOL2 format, chain TH [auth U] MOL2 format, chain VI [auth H] MOL2 format, chain WF [auth P] MOL2 format, chain ZF [auth P] mmCIF format, chain BG [auth P] mmCIF format, chain BK [auth T] mmCIF format, chain CI [auth U] mmCIF format, chain CK [auth T] mmCIF format, chain DF [auth O] mmCIF format, chain DH [auth S] mmCIF format, chain DK [auth k] mmCIF format, chain EF [auth O] mmCIF format, chain EG [auth Q] mmCIF format, chain EH [auth S] mmCIF format, chain EI [auth U] mmCIF format, chain FF [auth O] mmCIF format, chain FJ [auth H] mmCIF format, chain GE [auth J] mmCIF format, chain GF [auth O] mmCIF format, chain GJ [auth H] mmCIF format, chain KH [auth S] mmCIF format, chain MF [auth P] mmCIF format, chain NH [auth S] mmCIF format, chain OH [auth S] mmCIF format, chain PI [auth G] mmCIF format, chain PJ [auth K] mmCIF format, chain QI [auth G] mmCIF format, chain RG [auth Q] mmCIF format, chain RI [auth G] mmCIF format, chain SE [auth O] mmCIF format, chain SI [auth G] mmCIF format, chain TH [auth U] mmCIF format, chain VI [auth H] mmCIF format, chain WF [auth P] mmCIF format, chain ZF [auth P]	BG [auth P] BK [auth T] CI [auth U] CK [auth T] DF [auth O] BG [auth P], BK [auth T], CI [auth U], CK [auth T], DF [auth O], DH [auth S], DK [auth k], EF [auth O], EG [auth Q], EH [auth S], EI [auth U], FF [auth O], FJ [auth H], GE [auth J], GF [auth O], GJ [auth H], KH [auth S], MF [auth P], NH [auth S], OH [auth S], PI [auth G], PJ [auth K], QI [auth G], RG [auth Q], RI [auth G], SE [auth O], SI [auth G], TH [auth U], VI [auth H], WF [auth P], ZF [auth P]	(3S,3'R,5R,6S,7cis)-7',8'-didehydro-5,6-dihydro-5,6-epoxy-beta,beta-carotene-3,3'-diol C₄₀ H₅₄ O₃ OGHZCSINIMWCSB-WMTIXGNLSA-N		Interactions Focus chain BG [auth P] Focus chain BK [auth T] Focus chain CI [auth U] Focus chain CK [auth T] Focus chain DF [auth O] Focus chain DH [auth S] Focus chain DK [auth k] Focus chain EF [auth O] Focus chain EG [auth Q] Focus chain EH [auth S] Focus chain EI [auth U] Focus chain FF [auth O] Focus chain FJ [auth H] Focus chain GE [auth J] Focus chain GF [auth O] Focus chain GJ [auth H] Focus chain KH [auth S] Focus chain MF [auth P] Focus chain NH [auth S] Focus chain OH [auth S] Focus chain PI [auth G] Focus chain PJ [auth K] Focus chain QI [auth G] Focus chain RG [auth Q] Focus chain RI [auth G] Focus chain SE [auth O] Focus chain SI [auth G] Focus chain TH [auth U] Focus chain VI [auth H] Focus chain WF [auth P] Focus chain ZF [auth P] Interactions & Density Focus chain BG [auth P] Focus chain BK [auth T] Focus chain CI [auth U] Focus chain CK [auth T] Focus chain DF [auth O] Focus chain DH [auth S] Focus chain DK [auth k] Focus chain EF [auth O] Focus chain EG [auth Q] Focus chain EH [auth S] Focus chain EI [auth U] Focus chain FF [auth O] Focus chain FJ [auth H] Focus chain GE [auth J] Focus chain GF [auth O] Focus chain GJ [auth H] Focus chain KH [auth S] Focus chain MF [auth P] Focus chain NH [auth S] Focus chain OH [auth S] Focus chain PI [auth G] Focus chain PJ [auth K] Focus chain QI [auth G] Focus chain RG [auth Q] Focus chain RI [auth G] Focus chain SE [auth O] Focus chain SI [auth G] Focus chain TH [auth U] Focus chain VI [auth H] Focus chain WF [auth P] Focus chain ZF [auth P]
BCR Query on BCR Download:Ideal Coordinates CCD File SDF format, chain BE [auth F] SDF format, chain EE [auth I] SDF format, chain FE [auth I] SDF format, chain GK [auth k] SDF format, chain JB [auth A] SDF format, chain JD [auth B] SDF format, chain JE [auth J] SDF format, chain KB [auth A] SDF format, chain KD [auth B] SDF format, chain KE [auth L] SDF format, chain LB [auth A] SDF format, chain LD [auth B] SDF format, chain MB [auth A] SDF format, chain MD [auth B] SDF format, chain ND [auth B] SDF format, chain OE [auth L] SDF format, chain QE [auth M] SDF format, chain WG [auth R] SDF format, chain XD [auth F] MOL2 format, chain BE [auth F] MOL2 format, chain EE [auth I] MOL2 format, chain FE [auth I] MOL2 format, chain GK [auth k] MOL2 format, chain JB [auth A] MOL2 format, chain JD [auth B] MOL2 format, chain JE [auth J] MOL2 format, chain KB [auth A] MOL2 format, chain KD [auth B] MOL2 format, chain KE [auth L] MOL2 format, chain LB [auth A] MOL2 format, chain LD [auth B] MOL2 format, chain MB [auth A] MOL2 format, chain MD [auth B] MOL2 format, chain ND [auth B] MOL2 format, chain OE [auth L] MOL2 format, chain QE [auth M] MOL2 format, chain WG [auth R] MOL2 format, chain XD [auth F] mmCIF format, chain BE [auth F] mmCIF format, chain EE [auth I] mmCIF format, chain FE [auth I] mmCIF format, chain GK [auth k] mmCIF format, chain JB [auth A] mmCIF format, chain JD [auth B] mmCIF format, chain JE [auth J] mmCIF format, chain KB [auth A] mmCIF format, chain KD [auth B] mmCIF format, chain KE [auth L] mmCIF format, chain LB [auth A] mmCIF format, chain LD [auth B] mmCIF format, chain MB [auth A] mmCIF format, chain MD [auth B] mmCIF format, chain ND [auth B] mmCIF format, chain OE [auth L] mmCIF format, chain QE [auth M] mmCIF format, chain WG [auth R] mmCIF format, chain XD [auth F]	BE [auth F] EE [auth I] FE [auth I] GK [auth k] JB [auth A] BE [auth F], EE [auth I], FE [auth I], GK [auth k], JB [auth A], JD [auth B], JE [auth J], KB [auth A], KD [auth B], KE [auth L], LB [auth A], LD [auth B], MB [auth A], MD [auth B], ND [auth B], OE [auth L], QE [auth M], WG [auth R], XD [auth F]	BETA-CAROTENE C₄₀ H₅₆ OENHQHLEOONYIE-JLTXGRSLSA-N		Interactions Focus chain BE [auth F] Focus chain EE [auth I] Focus chain FE [auth I] Focus chain GK [auth k] Focus chain JB [auth A] Focus chain JD [auth B] Focus chain JE [auth J] Focus chain KB [auth A] Focus chain KD [auth B] Focus chain KE [auth L] Focus chain LB [auth A] Focus chain LD [auth B] Focus chain MB [auth A] Focus chain MD [auth B] Focus chain ND [auth B] Focus chain OE [auth L] Focus chain QE [auth M] Focus chain WG [auth R] Focus chain XD [auth F] Interactions & Density Focus chain BE [auth F] Focus chain EE [auth I] Focus chain FE [auth I] Focus chain GK [auth k] Focus chain JB [auth A] Focus chain JD [auth B] Focus chain JE [auth J] Focus chain KB [auth A] Focus chain KD [auth B] Focus chain KE [auth L] Focus chain LB [auth A] Focus chain LD [auth B] Focus chain MB [auth A] Focus chain MD [auth B] Focus chain ND [auth B] Focus chain OE [auth L] Focus chain QE [auth M] Focus chain WG [auth R] Focus chain XD [auth F]
LMU Query on LMU Download:Ideal Coordinates CCD File SDF format, chain CE [auth F] SDF format, chain CG [auth P] SDF format, chain CH [auth S] SDF format, chain DE [auth F] SDF format, chain HF [auth O] SDF format, chain IJ [auth K] SDF format, chain JJ [auth K] SDF format, chain PB [auth A] SDF format, chain PE [auth L] SDF format, chain RE [auth M] SDF format, chain ZB [auth A] MOL2 format, chain CE [auth F] MOL2 format, chain CG [auth P] MOL2 format, chain CH [auth S] MOL2 format, chain DE [auth F] MOL2 format, chain HF [auth O] MOL2 format, chain IJ [auth K] MOL2 format, chain JJ [auth K] MOL2 format, chain PB [auth A] MOL2 format, chain PE [auth L] MOL2 format, chain RE [auth M] MOL2 format, chain ZB [auth A] mmCIF format, chain CE [auth F] mmCIF format, chain CG [auth P] mmCIF format, chain CH [auth S] mmCIF format, chain DE [auth F] mmCIF format, chain HF [auth O] mmCIF format, chain IJ [auth K] mmCIF format, chain JJ [auth K] mmCIF format, chain PB [auth A] mmCIF format, chain PE [auth L] mmCIF format, chain RE [auth M] mmCIF format, chain ZB [auth A]	CE [auth F] CG [auth P] CH [auth S] DE [auth F] HF [auth O] CE [auth F], CG [auth P], CH [auth S], DE [auth F], HF [auth O], IJ [auth K], JJ [auth K], PB [auth A], PE [auth L], RE [auth M], ZB [auth A]	DODECYL-ALPHA-D-MALTOSIDE C₂₄ H₄₆ O₁₁ NLEBIOOXCVAHBD-YHBSTRCHSA-N		Interactions Focus chain CE [auth F] Focus chain CG [auth P] Focus chain CH [auth S] Focus chain DE [auth F] Focus chain HF [auth O] Focus chain IJ [auth K] Focus chain JJ [auth K] Focus chain PB [auth A] Focus chain PE [auth L] Focus chain RE [auth M] Focus chain ZB [auth A] Interactions & Density Focus chain CE [auth F] Focus chain CG [auth P] Focus chain CH [auth S] Focus chain DE [auth F] Focus chain HF [auth O] Focus chain IJ [auth K] Focus chain JJ [auth K] Focus chain PB [auth A] Focus chain PE [auth L] Focus chain RE [auth M] Focus chain ZB [auth A]
PQN (Subject of Investigation/LOI) Query on PQN Download:Ideal Coordinates CCD File SDF format, chain FB [auth A] SDF format, chain ID [auth B] MOL2 format, chain FB [auth A] MOL2 format, chain ID [auth B] mmCIF format, chain FB [auth A] mmCIF format, chain ID [auth B]	FB [auth A], ID [auth B]	PHYLLOQUINONE C₃₁ H₄₆ O₂ MBWXNTAXLNYFJB-NKFFZRIASA-N		Interactions Focus chain FB [auth A] Focus chain ID [auth B] Interactions & Density Focus chain FB [auth A] Focus chain ID [auth B]
SF4 (Subject of Investigation/LOI) Query on SF4 Download:Ideal Coordinates CCD File SDF format, chain UB [auth A] SDF format, chain VD [auth C] SDF format, chain WD [auth C] MOL2 format, chain UB [auth A] MOL2 format, chain VD [auth C] MOL2 format, chain WD [auth C] mmCIF format, chain UB [auth A] mmCIF format, chain VD [auth C] mmCIF format, chain WD [auth C]	UB [auth A], VD [auth C], WD [auth C]	IRON/SULFUR CLUSTER Fe₄ S₄ LJBDFODJNLIPKO-UHFFFAOYSA-N		Interactions Focus chain UB [auth A] Focus chain VD [auth C] Focus chain WD [auth C] Interactions & Density Focus chain UB [auth A] Focus chain VD [auth C] Focus chain WD [auth C]
