9UFX | pdb_00009ufx

Cryo-EM structure of HA11-bound alpha-synuclein fibril polymorph 6A6B

PDB DOI: https://doi.org/10.2210/pdb9UFX/pdb
EM Map EMD-64125: EMDB EMDataResource

Classification: PROTEIN FIBRIL
Organism(s): Homo sapiens
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-04-10 Released: 2026-04-15
Deposition Author(s): Zhang, S.Q., Liu, C., Li, D.
Funding Organization(s): Not funded

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.60 Å
Aggregation State: FILAMENT
Reconstruction Method: HELICAL

wwPDB Validation 3D Report Full Report

Validation slider image for 9UFX

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of HA11-bound alpha-synuclein fibril polymorph 6A6B

Zhang, S.Q., Liu, C., Li, D.

To be published.

Macromolecule Content

Total Structure Weight: 183.74 kDa
Atom Count: 5,016
Modeled Residue Count: 684
Deposited Residue Count: 1,680
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

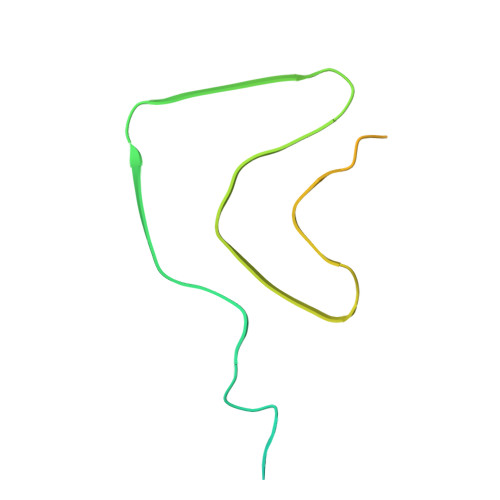

Alpha-synuclein	A B [auth D] C [auth E] D [auth F] E [auth B] A, B [auth D], C [auth E], D [auth F], E [auth B], F [auth C], G, H [auth J], I [auth K], J [auth L], K [auth H], L [auth I]	140	Homo sapiens	Mutation(s): 0 Gene Names: SNCA, NACP, PARK1
UniProt & NIH Common Fund Data Resources
Find proteins for P37840 (Homo sapiens) Explore P37840 Go to UniProtKB: P37840
PHAROS: P37840 GTEx: ENSG00000145335
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P37840
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1EPA (Subject of Investigation/LOI) Query on A1EPA Download:Ideal Coordinates CCD File SDF format, chain X [auth I] SDF format, chain W [auth I] SDF format, chain V [auth L] SDF format, chain U [auth G] SDF format, chain T [auth G] SDF format, chain S [auth G] SDF format, chain R [auth C] SDF format, chain Q [auth C] SDF format, chain P [auth F] SDF format, chain O [auth A] SDF format, chain N [auth A] SDF format, chain M [auth A] MOL2 format, chain X [auth I] MOL2 format, chain W [auth I] MOL2 format, chain V [auth L] MOL2 format, chain U [auth G] MOL2 format, chain T [auth G] MOL2 format, chain S [auth G] MOL2 format, chain R [auth C] MOL2 format, chain Q [auth C] MOL2 format, chain P [auth F] MOL2 format, chain O [auth A] MOL2 format, chain N [auth A] MOL2 format, chain M [auth A] mmCIF format, chain X [auth I] mmCIF format, chain W [auth I] mmCIF format, chain V [auth L] mmCIF format, chain U [auth G] mmCIF format, chain T [auth G] mmCIF format, chain S [auth G] mmCIF format, chain R [auth C] mmCIF format, chain Q [auth C] mmCIF format, chain P [auth F] mmCIF format, chain O [auth A] mmCIF format, chain N [auth A] mmCIF format, chain M [auth A]	M [auth A] N [auth A] O [auth A] P [auth F] Q [auth C] M [auth A], N [auth A], O [auth A], P [auth F], Q [auth C], R [auth C], S [auth G], T [auth G], U [auth G], V [auth L], W [auth I], X [auth I]	2',4',5',7'-tetrakis(iodanyl)-3',6'-bis(oxidanyl)spiro[2-benzofuran-3,9'-xanthene]-1-one C₂₀ H₈ I₄ O₅ OALHHIHQOFIMEF-UHFFFAOYSA-N		Interactions Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth F] Focus chain Q [auth C] Focus chain R [auth C] Focus chain S [auth G] Focus chain T [auth G] Focus chain U [auth G] Focus chain V [auth L] Focus chain W [auth I] Focus chain X [auth I] Interactions & Density Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth F] Focus chain Q [auth C] Focus chain R [auth C] Focus chain S [auth G] Focus chain T [auth G] Focus chain U [auth G] Focus chain V [auth L] Focus chain W [auth I] Focus chain X [auth I]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 2.60 Å
Aggregation State: FILAMENT
Reconstruction Method: HELICAL

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-04-15

Deposition Author(s):

Funding Organization	Location	Grant Number
Not funded		--

Revision History (Full details and data files)

Version 1.0: 2026-04-15
Type: Initial release
