9UFE | pdb_00009ufe

Cryo-EM structure of the tubular mastigoneme (the central tube) from golden algae 2.17 angstrom resolution

Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 2.17 Å
  • Aggregation State: FILAMENT
  • Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9UFE

This is version 1.1 of the entry. See complete history.

Literature

Structural N- and O-glycans revealed by high-resolution cryo-EM analysis of tubular mastigonemes.

Huang, J., Tao, H., Chen, S., Cui, Y., Xu, Y., Yan, C., Yan, N.

(2026) Science : eaef4958-eaef4958

  • DOI: https://doi.org/10.1126/science.aef4958
  • Primary Citation Related Structures:
    9UFE

  • PubMed Abstract:

    The chemical complexity and non-templated biosynthesis of glycans have posed significant challenges for establishing sequence-structure relationships. Here we report cryo-EM structures of tubular mastigonemes from a golden alga species, Ochromonas danica , in which a large number of N- and O-glycans are resolved at 1.8-2.2 Å resolution. Beyond high-mannose and complex N-glycans, we identify a non-canonical N-glycan on the Ala- Asn -Asp (A N D) motif. The surface spikes comprise dense O-glycans coating PSXX tetrapeptide repeats, with two glycans linked on trihydroxylated proline and one on serine per repeat. In addition to various types of sugars and their covalent modifiers, water molecules (>10% of resolved volume) and cations are clearly resolved and mediate the structural assembly. Our study establishes a framework for investigating glycan folding in high-order biological assemblies.

    • Organizational Affiliation:
    • Beijing Frontier Research Center for Biological Structures, State Key Laboratory of Membrane Biology, Tsinghua-Peking Joint Center for Life Sciences, School of Life Sciences, Tsinghua University, Beijing, China.

Macromolecule Content

  • Total Structure Weight: 1,006.78 kDa
  • Atom Count: 71,986
  • Modeled Residue Count: 7,632
  • Deposited Residue Count: 8,289
  • Unique protein chains: 6

Macromolecules

Find similar proteins by:
|  3D Structure

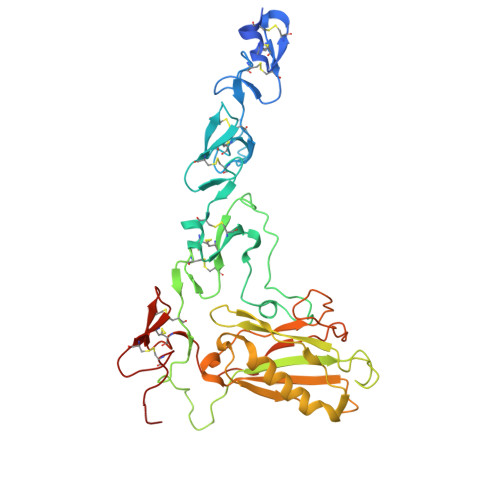

Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage
OCM5A [auth EA],
G [auth EB],
M [auth EC]		368Ochromonas danicaMutation(s): 0
Find similar proteins by:
|  3D Structure

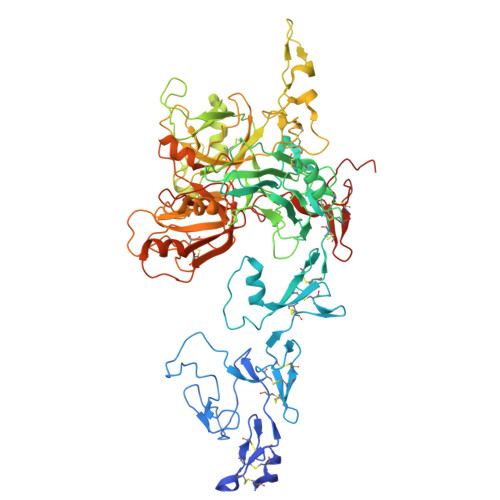

Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage
OCM6B [auth FA],
H [auth FB],
N [auth FC]		723Ochromonas danicaMutation(s): 0
Find similar proteins by:
|  3D Structure

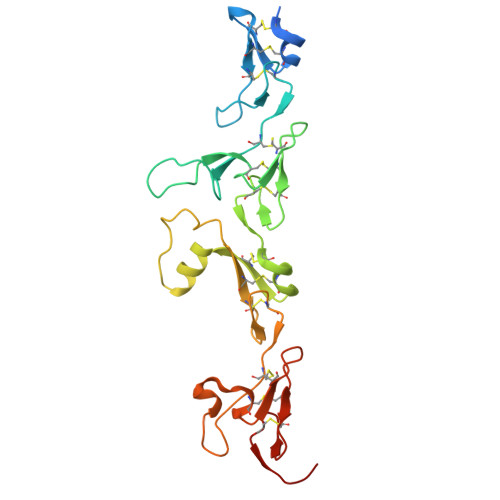

Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage
Tubular mastigoneme proteinC [auth DA],
I [auth DB],
O [auth DC]		209Ochromonas danicaMutation(s): 0
UniProt
Find proteins for C4B7Q8 (Ochromonas danica)
Explore C4B7Q8
Go to UniProtKB:  C4B7Q8
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC4B7Q8
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure

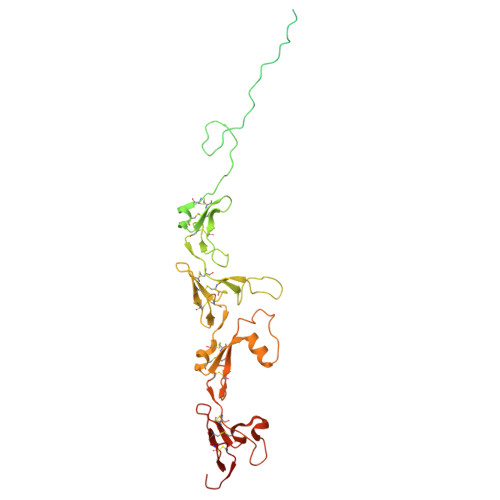

Entity ID: 4
MoleculeChains  Sequence LengthOrganismDetailsImage
OCM3D [auth CA],
J [auth CB],
P [auth CC]		349Ochromonas danicaMutation(s): 0
Find similar proteins by:
|  3D Structure

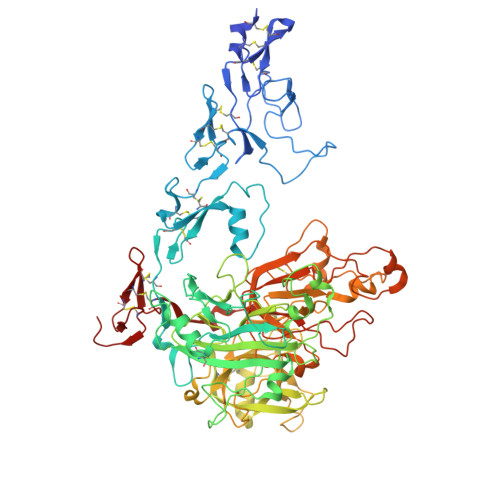

Entity ID: 5
MoleculeChains  Sequence LengthOrganismDetailsImage
Tubular mastigoneme proteinE [auth AA],
K [auth AB],
Q [auth AC]		748Ochromonas danicaMutation(s): 0
UniProt
Find proteins for A6P4C0 (Ochromonas danica)
Explore A6P4C0
Go to UniProtKB:  A6P4C0
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupA6P4C0
Glycosylation
Glycosylation Sites: 5
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:
|  3D Structure

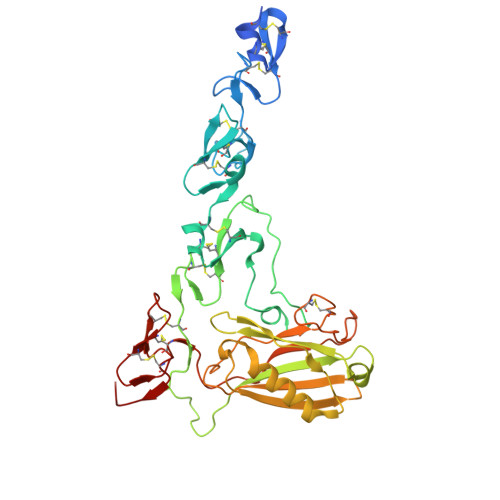

Entity ID: 6
MoleculeChains  Sequence LengthOrganismDetailsImage
Tubular mastigoneme proteinF [auth BA],
L [auth BB],
R [auth BC]		366Ochromonas danicaMutation(s): 0
UniProt
Find proteins for C4B7Q7 (Ochromonas danica)
Explore C4B7Q7
Go to UniProtKB:  C4B7Q7
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupC4B7Q7
Glycosylation
Glycosylation Sites: 3
Sequence Annotations
Expand
Reference Sequence

Oligosaccharides

Help
Entity ID: 7
MoleculeChains Length2D Diagram GlycosylationD Interactions
beta-D-xylopyranose-(1-2)-beta-D-xylopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)][2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)]alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)][beta-D-xylopyranose-(1-2)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-2)][alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseAB [auth aK],
JA [auth aF],
S [auth aA]		14N-Glycosylation
Entity ID: 8
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[beta-D-mannopyranose-(1-2)-beta-D-xylopyranose-(1-6)][beta-D-xylopyranose-(1-3)]alpha-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-3)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-[beta-D-xylopyranose-(1-3)]alpha-D-mannopyranose-(1-6)][beta-D-xylopyranose-(1-2)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseBB [auth aL],
KA [auth aG],
T [auth aB]		16N-Glycosylation
Entity ID: 9
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-3)-[beta-D-mannopyranose-(1-4)]2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-[beta-D-xylopyranose-(1-2)-beta-D-xylopyranose-(1-6)][beta-D-glucopyranose-(1-3)]alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-alpha-D-mannopyranose-(1-6)][beta-D-xylopyranose-(1-2)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-2)][alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseCB [auth aM],
LA [auth aH],
U [auth aC]		16N-Glycosylation
Entity ID: 10
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseDB [auth aN],
MA [auth aI],
V [auth aD]		9N-Glycosylation
Glycosylation Resources
GlyTouCan: G04216GB
GlyCosmos: G04216GB
GlyGen: G04216GB
Entity ID: 11
MoleculeChains Length2D Diagram GlycosylationD Interactions
beta-D-xylopyranose-(1-2)-beta-D-xylopyranose-(1-6)-[beta-D-xylopyranose-(1-3)][2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)]alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-[beta-D-xylopyranose-(1-3)]alpha-D-mannopyranose-(1-6)][beta-D-xylopyranose-(1-2)]alpha-D-mannopyranose-(1-6)-[beta-D-mannopyranose-(1-2)][alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseEB [auth aO],
NA [auth aJ],
W [auth aE]		15N-Glycosylation
Entity ID: 12
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseFB [auth bG],
OA [auth bD],
X [auth bA]		9N-Glycosylation
Glycosylation Resources
GlyTouCan: G37135JQ
GlyCosmos: G37135JQ
GlyGen: G37135JQ
Entity ID: 13
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-3)-alpha-D-mannopyranose-(1-6)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseGB [auth bH],
PA [auth bE],
Y [auth bB]		5N-Glycosylation
Glycosylation Resources
GlyTouCan: G10756ZZ
GlyCosmos: G10756ZZ
GlyGen: G10756ZZ
Entity ID: 14
MoleculeChains Length2D Diagram GlycosylationD Interactions
beta-D-xylopyranose-(1-6)-alpha-D-mannopyranose-(1-3)-[alpha-D-xylopyranose-(1-2)][alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[beta-D-mannopyranose-(1-2)][alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseHB [auth bI],
QA [auth bF],
Z [auth bC]		10N-Glycosylation
Entity ID: 15
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-beta-D-xylopyranoseAA [auth cA],
IB [auth cC],
RA [auth cB]		4N/A
Entity ID: 16
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-beta-D-xylopyranoseBA [auth dA],
JB [auth dC],
SA [auth dB]		7N/A
Entity ID: 17
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
CA [auth eA],
FA [auth fC],
GA [auth fD],
KB [auth eE],
NB [auth fM],
CA [auth eA],
FA [auth fC],
GA [auth fD],
KB [auth eE],
NB [auth fM],
OB [auth fN],
TA [auth eC],
WA [auth fH],
XA [auth fI]
11N-Glycosylation
Glycosylation Resources
GlyTouCan: G60230HH
GlyCosmos: G60230HH
GlyGen: G60230HH
Entity ID: 18
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-xylopyranose-(1-2)-beta-D-xylopyranose-(1-6)-[beta-D-glucopyranose-(1-3)][2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)]alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-[beta-D-xylopyranose-(1-3)]alpha-D-mannopyranose-(1-6)][beta-D-xylopyranose-(1-2)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseDA [auth eB],
LB [auth eF],
UA [auth eD]		14N-Glycosylation
Entity ID: 19
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-6)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-2)-alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose
EA [auth fB],
HA [auth fE],
MB [auth fL],
PB [auth fO],
VA [auth fG],
EA [auth fB],
HA [auth fE],
MB [auth fL],
PB [auth fO],
VA [auth fG],
YA [auth fJ]
10N-Glycosylation
Glycosylation Resources
GlyTouCan: G89864BN
GlyCosmos: G89864BN
GlyGen: G89864BN
Entity ID: 20
MoleculeChains Length2D Diagram GlycosylationD Interactions
alpha-D-xylopyranose-(1-2)-beta-D-xylopyranose-(1-6)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)]alpha-D-mannopyranose-(1-3)-[2-acetamido-2-deoxy-beta-D-glucopyranose-(1-2)-[alpha-D-xylopyranose-(1-3)]alpha-D-mannopyranose-(1-6)][beta-D-xylopyranose-(1-2)]alpha-D-mannopyranose-(1-6)-[alpha-D-mannopyranose-(1-2)][alpha-D-mannopyranose-(1-3)]beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranoseIA [auth fF],
QB [auth fP],
ZA [auth fK]		14N-Glycosylation
