9UDC | pdb_00009udc

Cryo-EM Structure of SLC15A2 with NAD+ (Pose 1)

PDB DOI: https://doi.org/10.2210/pdb9UDC/pdb
EM Map EMD-64067: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Homo sapiens
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-04-06 Released: 2026-04-15
Deposition Author(s): Ning, Y., Ge, J.
Funding Organization(s): Other government

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.38 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9UDC

This is version 1.0 of the entry. See complete history.

Literature

CryoEM structure of a transmembrane protein

Ning, Y., Ge, J.

To be published.

Macromolecule Content

Total Structure Weight: 82.52 kDa
Atom Count: 5,250
Modeled Residue Count: 657
Deposited Residue Count: 729
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

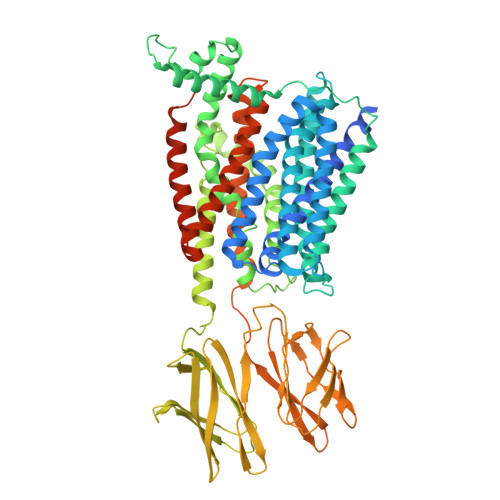

Solute carrier family 15 member 2	A	729	Homo sapiens	Mutation(s): 0 Gene Names: SLC15A2, PEPT2
UniProt & NIH Common Fund Data Resources
Find proteins for Q16348 (Homo sapiens) Explore Q16348 Go to UniProtKB: Q16348
PHAROS: Q16348 GTEx: ENSG00000163406
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q16348
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAD (Subject of Investigation/LOI) Query on NAD Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	NICOTINAMIDE-ADENINE-DINUCLEOTIDE C₂₁ H₂₇ N₇ O₁₄ P₂ BAWFJGJZGIEFAR-NNYOXOHSSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.38 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-04-15

Deposition Author(s):

Funding Organization	Location	Grant Number
Other government	China	LG-QS-202203-05; 22PJ1410300; 32471016

Revision History (Full details and data files)

Version 1.0: 2026-04-15
Type: Initial release
