9U8H | pdb_00009u8h

Deposited: 2025-03-26 Released: 2025-10-15
Deposition Author(s): Takahashi, Y.S., Kohga, H., Yamamoto, K., Takahashi, J.F., Tanaka, Y., Ichikawa, M., Miyazaki, R., Tsukazaki, T.
Funding Organization(s): Japan Society for the Promotion of Science (JSPS)

Experimental Data Snapshot

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.1 of the entry. See complete history.

Literature

(2025) FEBS Lett 599: 2377-2387

PubMed Abstract:

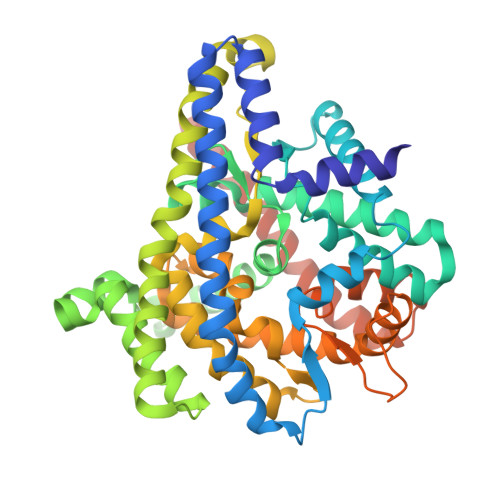

The bacterial phosphotransferase system (PTS) mediates the uptake of specific carbohydrates via IIC transporters. Here, we report the crystal and cryo-electron microscopy (cryo-EM) structures of Leminorella grimontii galactitol-specific PTS enzyme IIC component (LgGatC), which is implicated in D-xylose uptake and belongs to the ascorbate-galactitol (AG) superfamily of IIC proteins. These structures, determined in the presence and absence of D-xylose, capture the transporter in an outward-facing conformation. A homology model of an inward-facing state, constructed based on these structures, supports an elevator-like transport mechanism. These findings provide structural insights into substrate recognition by GatC and offer a framework for understanding sugar transport in PTS IIC proteins.

Organizational Affiliation

Graduate School of Science and Technology, Nara Institute of Science and Technology, Japan.

Macromolecule Content

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image
PTS galactitol transporter subunit IIC	A, B	471	Leminorella grimontii	Mutation(s): 0 Gene Names: SOASR030_34840
UniProt
Find proteins for A0AAV5N9B3 (Leminorella grimontii) Explore A0AAV5N9B3 Go to UniProtKB: A0AAV5N9B3
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	A0AAV5N9B3
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
OLC Query on OLC Download Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain H [auth B] SDF format, chain G [auth B] SDF format, chain F [auth B] SDF format, chain E [auth B] SDF format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain H [auth B] MOL2 format, chain G [auth B] MOL2 format, chain F [auth B] MOL2 format, chain E [auth B] MOL2 format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain H [auth B] mmCIF format, chain G [auth B] mmCIF format, chain F [auth B] mmCIF format, chain E [auth B] mmCIF format, chain C [auth A]	C [auth A] D [auth A] E [auth B] F [auth B] G [auth B] C [auth A], D [auth A], E [auth B], F [auth B], G [auth B], H [auth B]	(2R)-2,3-dihydroxypropyl (9Z)-octadec-9-enoate C₂₁ H₄₀ O₄ RZRNAYUHWVFMIP-GDCKJWNLSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth B] Focus chain F [auth B] Focus chain G [auth B] Focus chain H [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth B] Focus chain F [auth B] Focus chain G [auth B] Focus chain H [auth B]
