9U8B | pdb_00009u8b

Structure of THIK1 complexed with C101248

PDB DOI: https://doi.org/10.2210/pdb9U8B/pdb
EM Map EMD-63952: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Homo sapiens
Expression System: Homo sapiens
Mutation(s): No

Deposited: 2025-03-26 Released: 2026-04-01
Deposition Author(s): Dai, Z., Yin, Y.X.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.21 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9U8B

This is version 1.0 of the entry. See complete history.

Literature

Structure of THIK1 complexed with C101248

Dai, Z., Yin, Y.X.

To be published.

Macromolecule Content

Total Structure Weight: 95.22 kDa
Atom Count: 3,971
Modeled Residue Count: 488
Deposited Residue Count: 848
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

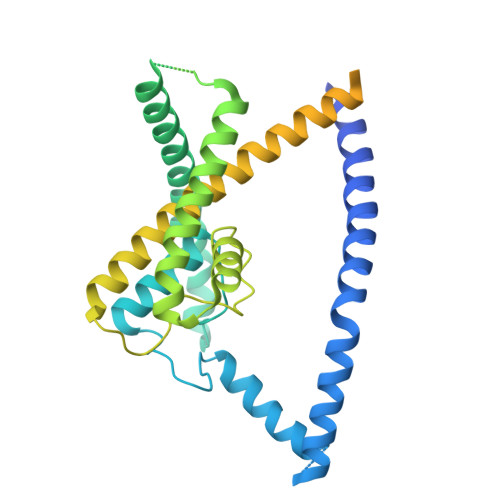

Potassium channel subfamily K member 13	A, B	424	Homo sapiens	Mutation(s): 0 Gene Names: KCNK13
UniProt & NIH Common Fund Data Resources
Find proteins for Q9HB14 (Homo sapiens) Explore Q9HB14 Go to UniProtKB: Q9HB14
GTEx: ENSG00000152315
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9HB14
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ACD (Subject of Investigation/LOI) Query on ACD Download:Ideal Coordinates CCD File SDF format, chain E [auth B] SDF format, chain C [auth A] MOL2 format, chain E [auth B] MOL2 format, chain C [auth A] mmCIF format, chain E [auth B] mmCIF format, chain C [auth A]	C [auth A], E [auth B]	ARACHIDONIC ACID C₂₀ H₃₂ O₂ YZXBAPSDXZZRGB-DOFZRALJSA-N		Interactions Focus chain C [auth A] Focus chain E [auth B] Interactions & Density Focus chain C [auth A] Focus chain E [auth B]
A1ENQ (Subject of Investigation/LOI) Query on A1ENQ Download:Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	4-[1-(pyridin-4-ylmethyl)benzimidazol-2-yl]-1,2,5-oxadiazol-3-amine C₁₅ H₁₂ N₆ O LXADAVBNVFYEBW-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.21 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC	4.6.2

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-04-01

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	82030081,81874235

Revision History (Full details and data files)

Version 1.0: 2026-04-01
Type: Initial release
