9U7J | pdb_00009u7j

Oligomer structure of a glycosyltransferase

PDB DOI: https://doi.org/10.2210/pdb9U7J/pdb
EM Map EMD-63938: EMDB EMDataResource

Classification: TRANSFERASE
Organism(s): Homo sapiens
Expression System: Komagataella pastoris
Mutation(s): No

Deposited: 2025-03-24 Released: 2026-04-01
Deposition Author(s): Yu, H.J., Zhang, M., Sun, H.H., Liu, X.T.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.30 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9U7J

This is version 1.0 of the entry. See complete history.

Literature

Oligomer structure of a glycosyltransferase

Yu, H.J., Zhang, M., Sun, H.H., Liu, X.T.

To be published.

Macromolecule Content

Total Structure Weight: 367.13 kDa
Atom Count: 25,776
Modeled Residue Count: 3,120
Deposited Residue Count: 3,120
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

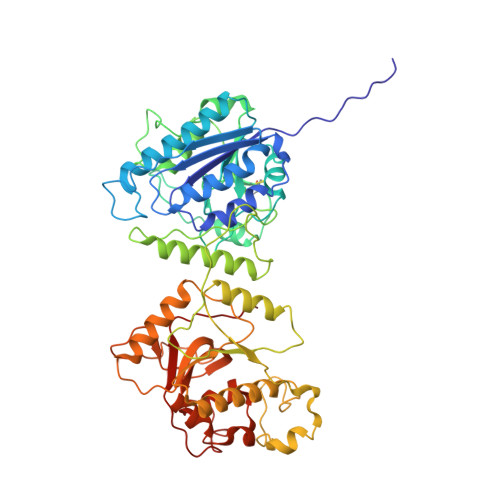

Procollagen galactosyltransferase 1	A [auth a] B [auth A] C [auth B] D [auth C] E [auth D] A [auth a], B [auth A], C [auth B], D [auth C], E [auth D], F [auth E]	520	Homo sapiens	Mutation(s): 0 Gene Names: COLGALT1, GLT25D1, PSEC0241 EC: 2.4.1.50
UniProt & NIH Common Fund Data Resources
Find proteins for Q8NBJ5 (Homo sapiens) Explore Q8NBJ5 Go to UniProtKB: Q8NBJ5
PHAROS: Q8NBJ5 GTEx: ENSG00000130309
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q8NBJ5
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
GDU Query on GDU Download:Ideal Coordinates CCD File SDF format, chain G [auth a] SDF format, chain I [auth A] SDF format, chain K [auth B] SDF format, chain M [auth C] SDF format, chain O [auth D] SDF format, chain Q [auth E] MOL2 format, chain G [auth a] MOL2 format, chain I [auth A] MOL2 format, chain K [auth B] MOL2 format, chain M [auth C] MOL2 format, chain O [auth D] MOL2 format, chain Q [auth E] mmCIF format, chain G [auth a] mmCIF format, chain I [auth A] mmCIF format, chain K [auth B] mmCIF format, chain M [auth C] mmCIF format, chain O [auth D] mmCIF format, chain Q [auth E]	G [auth a] I [auth A] K [auth B] M [auth C] O [auth D] G [auth a], I [auth A], K [auth B], M [auth C], O [auth D], Q [auth E]	GALACTOSE-URIDINE-5'-DIPHOSPHATE C₁₅ H₂₄ N₂ O₁₇ P₂ HSCJRCZFDFQWRP-ABVWGUQPSA-N		Interactions Focus chain G [auth a] Focus chain I [auth A] Focus chain K [auth B] Focus chain M [auth C] Focus chain O [auth D] Focus chain Q [auth E] Interactions & Density Focus chain G [auth a] Focus chain I [auth A] Focus chain K [auth B] Focus chain M [auth C] Focus chain O [auth D] Focus chain Q [auth E]
MN Query on MN Download:Ideal Coordinates CCD File SDF format, chain H [auth a] SDF format, chain J [auth A] SDF format, chain L [auth B] SDF format, chain N [auth C] SDF format, chain P [auth D] SDF format, chain R [auth E] MOL2 format, chain H [auth a] MOL2 format, chain J [auth A] MOL2 format, chain L [auth B] MOL2 format, chain N [auth C] MOL2 format, chain P [auth D] MOL2 format, chain R [auth E] mmCIF format, chain H [auth a] mmCIF format, chain J [auth A] mmCIF format, chain L [auth B] mmCIF format, chain N [auth C] mmCIF format, chain P [auth D] mmCIF format, chain R [auth E]	H [auth a] J [auth A] L [auth B] N [auth C] P [auth D] H [auth a], J [auth A], L [auth B], N [auth C], P [auth D], R [auth E]	MANGANESE (II) ION Mn WAEMQWOKJMHJLA-UHFFFAOYSA-N		Interactions Focus chain H [auth a] Focus chain J [auth A] Focus chain L [auth B] Focus chain N [auth C] Focus chain P [auth D] Focus chain R [auth E] Interactions & Density Focus chain H [auth a] Focus chain J [auth A] Focus chain L [auth B] Focus chain N [auth C] Focus chain P [auth D] Focus chain R [auth E]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.30 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-04-01

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2026-04-01
Type: Initial release
