9U58 | pdb_00009u58

Cryo-EM structure of AZ-GS bound AtABCC2

PDB DOI: https://doi.org/10.2210/pdb9U58/pdb
EM Map EMD-63866: EMDB EMDataResource

Classification: TRANSPORT PROTEIN
Organism(s): Arabidopsis thaliana
Expression System: Spodoptera frugiperda
Mutation(s): No

Deposited: 2025-03-20 Released: 2026-03-25
Deposition Author(s): Dong, J., Yang, T.-L., Yang, G.-F.
Funding Organization(s): National Natural Science Foundation of China (NSFC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.36 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9U58

This is version 1.0 of the entry. See complete history.

Literature

Cryo-EM structure of AZ-GS bound AtABCC2

Dong, J., Yang, T.-L., Yang, G.-F.

To be published.

Macromolecule Content

Total Structure Weight: 167.58 kDa
Atom Count: 11,144
Modeled Residue Count: 1,379
Deposited Residue Count: 1,464
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

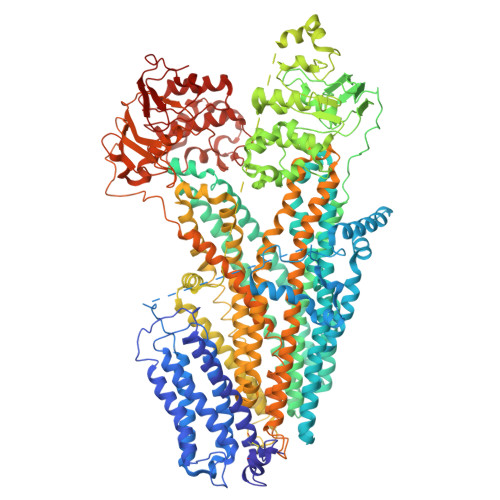

ABC transporter C family member 2	A	1,464	Arabidopsis thaliana	Mutation(s): 0 Gene Names: ABCC2, EST4, MRP2, At2g34660, T29F13.13 EC: 7.6.2.2
UniProt
Find proteins for Q42093 (Arabidopsis thaliana) Explore Q42093 Go to UniProtKB: Q42093
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q42093
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ATA Query on ATA Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	ATRAZINE GLUTATHIONE CONJUGATE C₁₈ H₃₀ N₈ O₆ S WDLCRTLULMGVMR-QWRGUYRKSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
CLR Query on CLR Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain I [auth A] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain I [auth A] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain I [auth A]	C [auth A] D [auth A] E [auth A] F [auth A] G [auth A] C [auth A], D [auth A], E [auth A], F [auth A], G [auth A], H [auth A], I [auth A]	CHOLESTEROL C₂₇ H₄₆ O HVYWMOMLDIMFJA-DPAQBDIFSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.36 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-03-25

Deposition Author(s):

Funding Organization	Location	Grant Number
National Natural Science Foundation of China (NSFC)	China	--

Revision History (Full details and data files)

Version 1.0: 2026-03-25
Type: Initial release
