9U2T | pdb_00009u2t

PhiC31 integrase-attB-attP synaptic complex: attP-bound dimer subregion

• PDB DOI: https://doi.org/10.2210/pdb9U2T/pdb
• EM Map EMD-56519: EMDB EMDataResource

• Classification: RECOMBINATION
• Organism(s): Lomovskayavirus C31
• Expression System: Escherichia coli BL21(DE3)
• Mutation(s): Yes


• Deposited: 2026-01-30 Released: 2026-02-11
• Deposition Author(s): Sun, E., Spagnolo, L.
• Funding Organization(s): Biotechnology and Biological Sciences Research Council (BBSRC)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.26 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Structural basis of unidirectional DNA recombination by the PhiC31 serine integrase

Sun, E., Aspinal, L., Joseph, A.P., Colloms, S.D., Stark, W.M., Spagnolo, L.

To be published.

Biological Assembly 1

Global Symmetry: Cyclic - C2  (Explore in 3D)
Global Stoichiometry: Homo 2-mer - A2

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 175.88 kDa
• Atom Count: 9,248
• Modeled Residue Count: 1,008
• Deposited Residue Count: 1,370
• Unique protein chains: 1
• Unique nucleic acid chains: 2

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

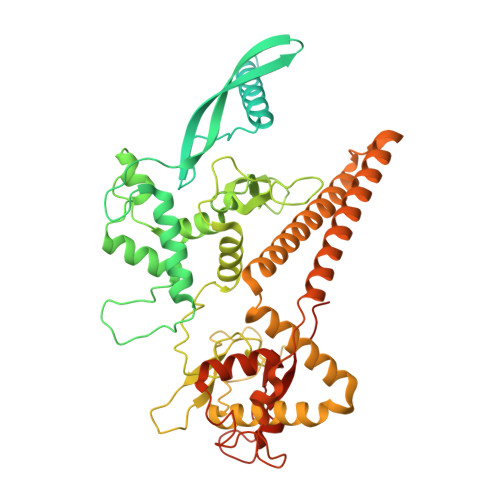

Integrase	A, D [auth B]	625	Lomovskayavirus C31	Mutation(s): 1  Gene Names: int
UniProt
Find proteins for Q9T221 (Streptomyces phage phiC31) Explore Q9T221  Go to UniProtKB:  Q9T221

Entity ID: 2
Molecule	Chains	Length	Organism	Image

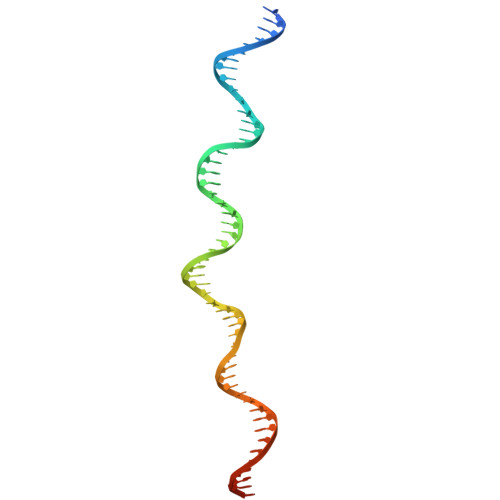

attP60_Fw	B [auth E]	60	Lomovskayavirus C31

Entity ID: 3
Molecule	Chains	Length	Organism	Image

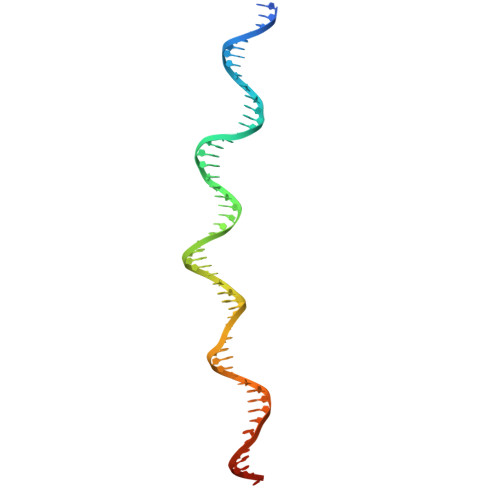

attP60_Rv	C [auth F]	60	Lomovskayavirus C31

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
ZN (Subject of Investigation/LOI)	E [auth A], F [auth B]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.26 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419
RECONSTRUCTION	RELION	5

Structure Validation

Entry History & Funding Information

Deposition Data

• Released Date: 2026-02-11
Deposition Author(s): Sun, E., Spagnolo, L.

---

Funding Organization	Location	Grant Number
Biotechnology and Biological Sciences Research Council (BBSRC)	United Kingdom	BB/W017571/1

Revision History

• Version 1.0: 2026-02-11
  Type: Initial release
