9U2S | pdb_00009u2s

PhiC31 integrase-attB-attP synaptic complex: attB-bound dimer subregion

PDB DOI: https://doi.org/10.2210/pdb9U2S/pdb
EM Map EMD-56518: EMDB EMDataResource
NAKB: 9U2S

Classification: RECOMBINATION
Organism(s): Lomovskayavirus C31
Expression System: Escherichia coli BL21(DE3)
Mutation(s): Yes

Deposited: 2026-01-30 Released: 2026-02-11
Deposition Author(s): Sun, Y.E., Spagnolo, L.
Funding Organization(s): Biotechnology and Biological Sciences Research Council (BBSRC)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.20 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9U2S

This is version 1.0 of the entry. See complete history.

Literature

Structural basis of unidirectional DNA recombination by the PhiC31 serine integrase

Sun, Y.E., Aspinall, L., Joseph, A.P., Colloms, S.D., Stark, W.M., Spagnolo, L.

To be published.

Macromolecule Content

Total Structure Weight: 171.56 kDa
Atom Count: 8,151
Modeled Residue Count: 868
Deposited Residue Count: 1,356
Unique protein chains: 1
Unique nucleic acid chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

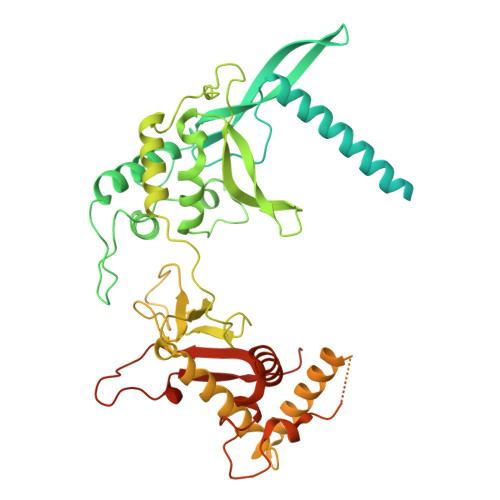

Integrase	C [auth A], D [auth B]	625	Lomovskayavirus C31	Mutation(s): 1 Gene Names: int
UniProt
Find proteins for Q9T221 (Streptomyces phage phiC31) Explore Q9T221 Go to UniProtKB: Q9T221
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9T221
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism	Image
Entity ID: 1

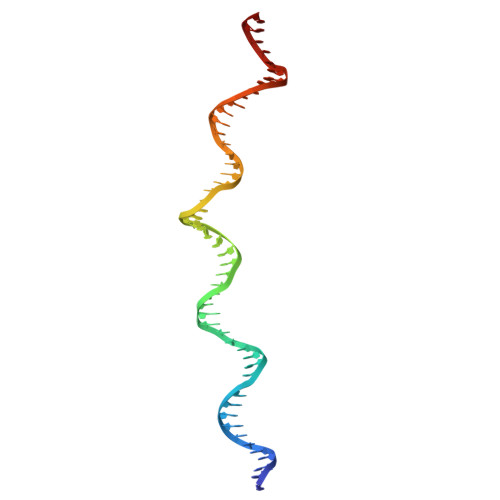

attB53_Fw	A [auth E]	53	Lomovskayavirus C31
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by:

(by identity cutoff)

Molecule	Chains	Length	Organism	Image
Entity ID: 2

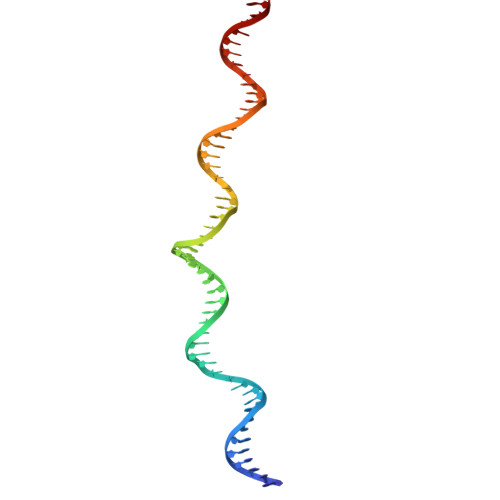

attB53_Rv	B [auth F]	53	Lomovskayavirus C31
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ZN (Subject of Investigation/LOI) Query on ZN Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain F [auth B] MOL2 format, chain E [auth A] MOL2 format, chain F [auth B] mmCIF format, chain E [auth A] mmCIF format, chain F [auth B]	E [auth A], F [auth B]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain F [auth B] Interactions & Density Focus chain E [auth A] Focus chain F [auth B]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.20 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419
RECONSTRUCTION	RELION	5

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-02-11

Deposition Author(s):

Funding Organization	Location	Grant Number
Biotechnology and Biological Sciences Research Council (BBSRC)	United Kingdom	BB/W017571/1

Revision History (Full details and data files)

Version 1.0: 2026-02-11
Type: Initial release
