9TYI | pdb_00009tyi

Structure of the MAP2K MEK1 without bound nucleotide in complex with its substrate MAPK ERK2


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: in silico
View more details

wwPDB Validation   3D Report Full Report


This is version 1.0 of the entry. See complete history


Literature

Molecular basis of mitogen-activated protein kinase ERK2 activation by its upstream kinase MEK1.

von Velsen, J.Juyoux, P.Piasentin, N.Fisher, H.Lapouge, K.Vadas, O.Gervasio, F.L.Bowler, M.W.

(2026) bioRxiv

  • DOI: https://doi.org/10.64898/2026.01.19.700303
  • Primary Citation of Related Structures:
    9TU0, 9TYG, 9TYH, 9TYI

  • PubMed Abstract:

    The RAS-RAF-MEK-ERK mitogen-activated protein kinase (MAPK) pathway relays extracellular signals into a cellular response and its dysregulation leads to many pathologies, particularly cancer. Here, we determined cryo-EM structures of the MAP2K MEK1 activating its substrate MAPK ERK2, the final event in the cascade. We define the molecular details of specificity and phosphoryl transfer to the tyrosine of the ERK2 activation loop and examine the mechanism of substrate recognition using solution techniques and molecular dynamics. Binding of the substrate MAPK leads to release of the MAP2K catalytic machinery, explaining the mechanism of many disease-causing mutations, and ERK2 release is not required for nucleotide exchange, suggesting a processive mechanism. Our data advance the understanding of MAPK signalling and provide a starting point for drug development.


  • Organizational Affiliation
    • European Molecular Biology Laboratory (EMBL), Grenoble, France.

Macromolecules
Find similar proteins by:  (by identity cutoff)  |  3D Structure

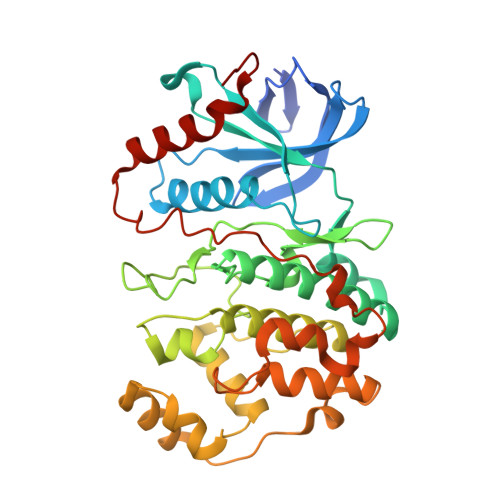

Entity ID: 1
MoleculeChains Sequence LengthOrganismDetailsImage
Mitogen-activated protein kinase 1A [auth B]363Homo sapiensMutation(s): 1
Gene Names: MAPK1ERK2PRKM1PRKM2
EC: 2.7.11.24
UniProt & NIH Common Fund Data Resources
Find proteins for P28482 (Homo sapiens)
Explore P28482
Go to UniProtKB:  P28482
PHAROS:  P28482
GTEx:  ENSG00000100030
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP28482
Sequence Annotations
Expand
  • Reference Sequence
Find similar proteins by:  (by identity cutoff)  |  3D Structure

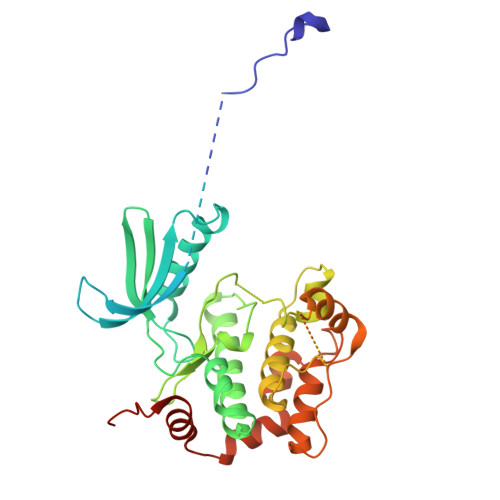

Entity ID: 2
MoleculeChains Sequence LengthOrganismDetailsImage
Dual specificity mitogen-activated protein kinase kinase 1,Uncharacterized protein,Dual specificity mitogen-activated protein kinase kinase 1B [auth A]405Homo sapiensToxoplasma gondii ME49Mutation(s): 2
Gene Names: MAP2K1MEK1PRKMK1TGME49_230180
EC: 2.7.12.2
UniProt & NIH Common Fund Data Resources
Find proteins for Q02750 (Homo sapiens)
Explore Q02750
Go to UniProtKB:  Q02750
PHAROS:  Q02750
GTEx:  ENSG00000169032
Find proteins for A0A125YG37 (Toxoplasma gondii (strain ATCC 50611 / Me49))
Explore A0A125YG37
Go to UniProtKB:  A0A125YG37
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupsQ02750A0A125YG37
Sequence Annotations
Expand
  • Reference Sequence
Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 3.60 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
MODEL REFINEMENTPHENIX1.21.2_5419
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History & Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
Not funded--

Revision History  (Full details and data files)

  • Version 1.0: 2026-02-25
    Type: Initial release
