9TXL | pdb_00009txl

Experimental Data Snapshot

wwPDB Validation

Currently 9TXL does not have a validation slider image.

This is version 1.0 of the entry. See complete history.

Macromolecule Content

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

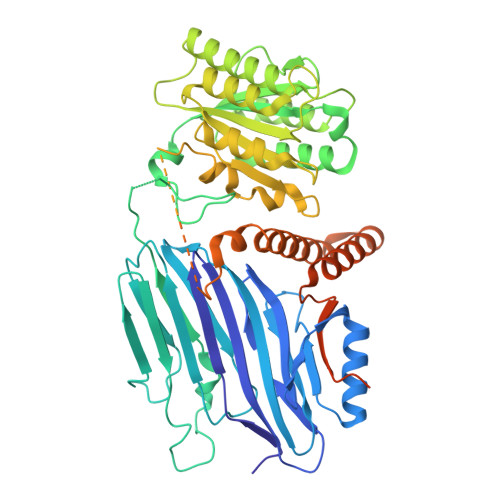

Isoform 3 of Inter-alpha-trypsin inhibitor heavy chain H4	A, B	630	Homo sapiens	Mutation(s): 0 Gene Names: ITIH4, IHRP, ITIHL1, PK120, PRO1851
UniProt & NIH Common Fund Data Resources
Find proteins for Q14624 (Homo sapiens) Explore Q14624 Go to UniProtKB: Q14624
PHAROS: Q14624 GTEx: ENSG00000055955
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q14624
Glycosylation
Glycosylation Sites: 2	Glycosylation Focus chain A Focus chain B	Go to GlyGen: Q14624-1
Sequence Annotations Expand
Reference Sequence

Find similar proteins by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

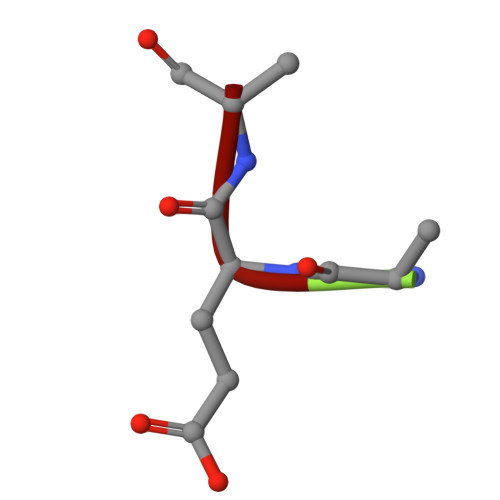

Ligand glutamate from MASP-1cf	C	3	Homo sapiens	Mutation(s): 0
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

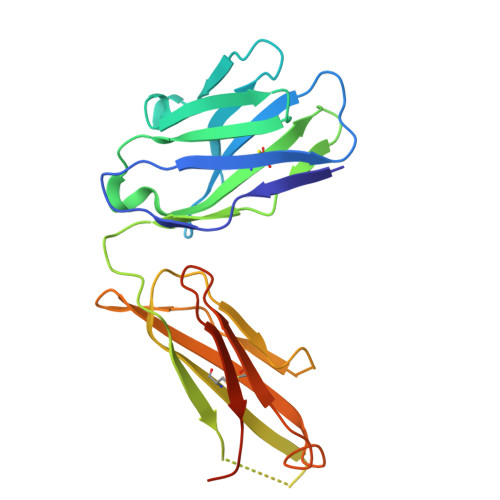

12A12 mAb F(ab) heavy chain	D, F	227	Mus musculus	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

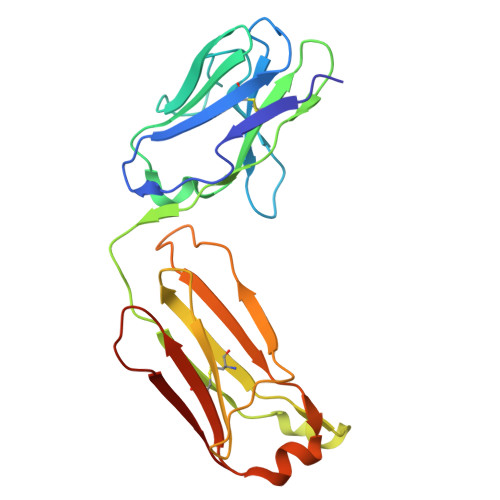

12A12 mAb F(ab) light chain	E, G	213	Mus musculus	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Entity ID: 5
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
alpha-D-mannopyranose-(1-3)-beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	H	4	N/A	N-Glycosylation	Interactions Focus chain H Interactions & Density Focus chain H
Glycosylation Resources
GlyTouCan: G81315DD GlyCosmos: G81315DD GlyGen: G81315DD

Entity ID: 6
Molecule	Chains	Length	2D Diagram	Glycosylation	D Interactions
beta-D-mannopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose-(1-4)-2-acetamido-2-deoxy-beta-D-glucopyranose	I	3	N/A	N-Glycosylation	Interactions Focus chain I Interactions & Density Focus chain I
Glycosylation Resources
GlyTouCan: G15407YE GlyCosmos: G15407YE GlyGen: G15407YE

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
NAG Query on NAG Download:Ideal Coordinates CCD File SDF format, chain N [auth B] SDF format, chain K [auth A] SDF format, chain J [auth A] MOL2 format, chain N [auth B] MOL2 format, chain K [auth A] MOL2 format, chain J [auth A] mmCIF format, chain N [auth B] mmCIF format, chain K [auth A] mmCIF format, chain J [auth A]	J [auth A], K [auth A], N [auth B]	2-acetamido-2-deoxy-beta-D-glucopyranose C₈ H₁₅ N O₆ OVRNDRQMDRJTHS-FMDGEEDCSA-N		Interactions Focus chain J [auth A] Focus chain K [auth A] Focus chain N [auth B] Interactions & Density Focus chain J [auth A] Focus chain K [auth A] Focus chain N [auth B]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain M [auth B] SDF format, chain L [auth A] MOL2 format, chain M [auth B] MOL2 format, chain L [auth A] mmCIF format, chain M [auth B] mmCIF format, chain L [auth A]	L [auth A], M [auth B]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain L [auth A] Focus chain M [auth B] Interactions & Density Focus chain L [auth A] Focus chain M [auth B]
