9TIU | pdb_00009tiu

cryo-EM structure of wild-type MscL from Escherichia coli in MSP nanodisc

PDB DOI: https://doi.org/10.2210/pdb9TIU/pdb
EM Map EMD-55970: EMDB EMDataResource

Classification: MEMBRANE PROTEIN
Organism(s): Escherichia coli
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-12-05 Released: 2026-09-09
Deposition Author(s): Xiao, T., Sprink, T., Lange, A.
Funding Organization(s): German Research Foundation (DFG)

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.68 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

wwPDB Validation 3D Report Full Report

Validation slider image for 9TIU

This is version 1.0 of the entry. See complete history.

Literature

cryo-EM structure of wild-type MscL from Escherichia coli in MSP nanodisc

Xiao, T., Sprink, T., Lange, A.

To be published.

Macromolecule Content

Total Structure Weight: 74.86 kDa
Atom Count: 4,180
Modeled Residue Count: 575
Deposited Residue Count: 680
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

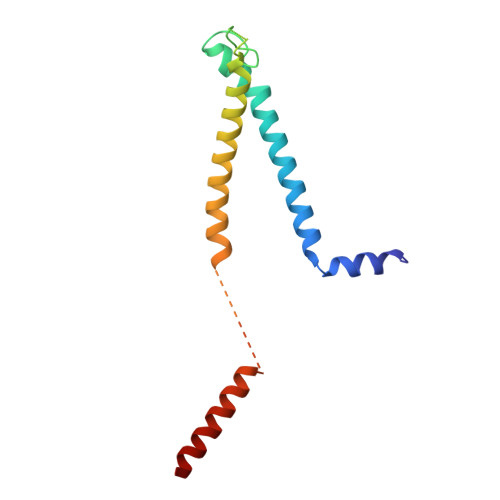

Large-conductance mechanosensitive channel	A, B, C, D, E	136	Escherichia coli	Mutation(s): 0 Gene Names: mscL, yhdC, b3291, JW3252
UniProt
Find proteins for P0A742 (Escherichia coli (strain K12)) Explore P0A742 Go to UniProtKB: P0A742
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0A742
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.68 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419
RECONSTRUCTION	cryoSPARC

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-09

Deposition Author(s):

Funding Organization	Location	Grant Number
German Research Foundation (DFG)	Germany	EXC 2008 1 UniSysCat 390540038

Revision History (Full details and data files)

Version 1.0: 2026-09-09
Type: Initial release
