9TGM | pdb_00009tgm

Cryo-EM structure of MCM2-7 DH bound to Sld3-Sld7

PDB DOI: https://doi.org/10.2210/pdb9TGM/pdb
EM Map EMD-55904: EMDB EMDataResource

Classification: REPLICATION
Organism(s): Saccharomyces cerevisiae
Expression System: Saccharomyces cerevisiae
Mutation(s): No

Deposited: 2025-12-02 Released: 2026-08-26
Deposition Author(s): Saleh, A., Noguchi, Y., Ivanova, M.E., Aramayo, R., Speck, C.
Funding Organization(s): Wellcome Trust, Biotechnology and Biological Sciences Research Council (BBSRC), Cancer Research UK

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 3.60 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Models: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Structural insights into Sld3-Sld7-dependent Cdc45 loading during replication initiation

Noguchi, Y., Saleh, A., Schneider, S., Ivanova, M.E., Chen, Z.A., Ranjha, L., Aramayo, R., Tognetti, S., Faull, S.V., Rappsilber, J., Speck, C.

(2026) Nat Commun

DOI: https://doi.org/10.1038/s41467-026-76309-6

Macromolecule Content

Total Structure Weight: 1,401.27 kDa
Atom Count: 63,086
Modeled Residue Count: 7,958
Deposited Residue Count: 12,411
Unique protein chains: 8

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

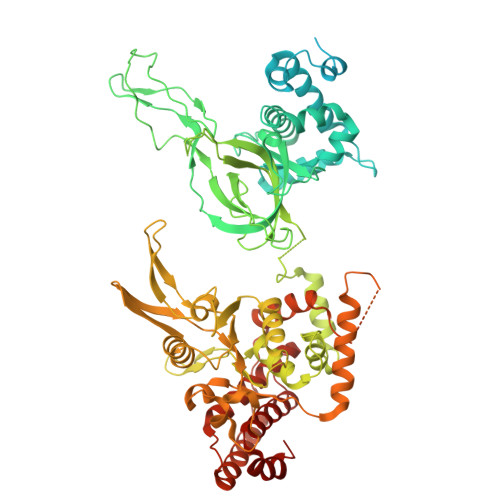

DNA replication licensing factor MCM2	A [auth 2], H [auth B]	868	Saccharomyces cerevisiae	Mutation(s): 0 Gene Names: MCM2, YBL023C, YBL0438 EC: 3.6.4.12
UniProt
Find proteins for P29469 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P29469 Go to UniProtKB: P29469
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P29469
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

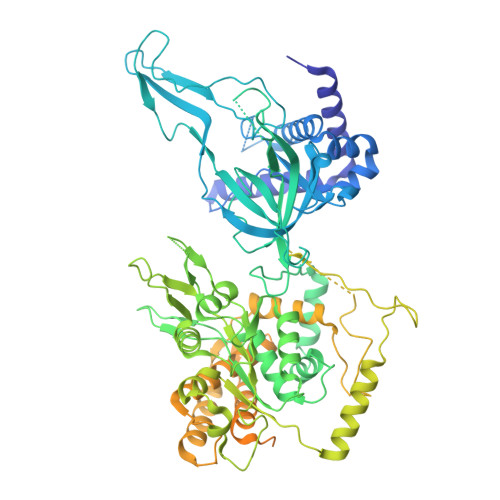

DNA replication licensing factor MCM3	B [auth 3], I [auth C]	971	Saccharomyces cerevisiae	Mutation(s): 0 Gene Names: MCM3, YEL032W, SYGP-ORF23 EC: 3.6.4.12
UniProt
Find proteins for P24279 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P24279 Go to UniProtKB: P24279
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P24279
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

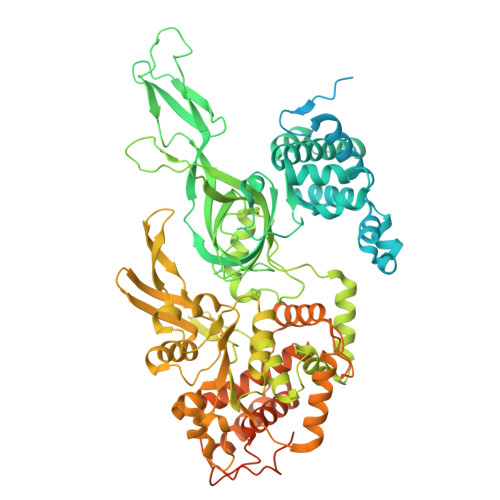

DNA replication licensing factor MCM4	C [auth 4], J [auth D]	933	Saccharomyces cerevisiae	Mutation(s): 0 Gene Names: MCM4, CDC54, HCD21, YPR019W, YP9531.13 EC: 3.6.4.12
UniProt
Find proteins for P30665 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P30665 Go to UniProtKB: P30665
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P30665
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

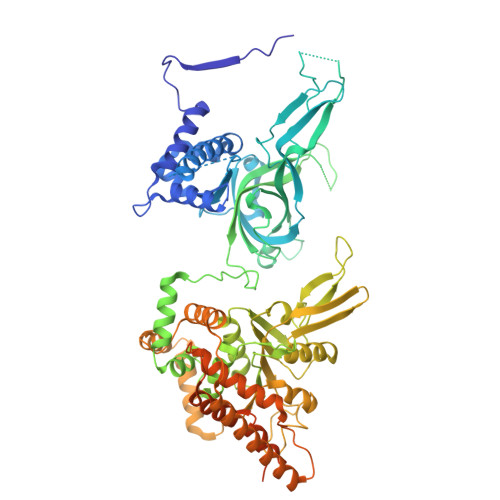

Minichromosome maintenance protein 5	D [auth 5], K [auth E]	775	Saccharomyces cerevisiae	Mutation(s): 0 Gene Names: MCM5, CDC46, YLR274W, L9328.1 EC: 3.6.4.12
UniProt
Find proteins for P29496 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P29496 Go to UniProtKB: P29496
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P29496
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

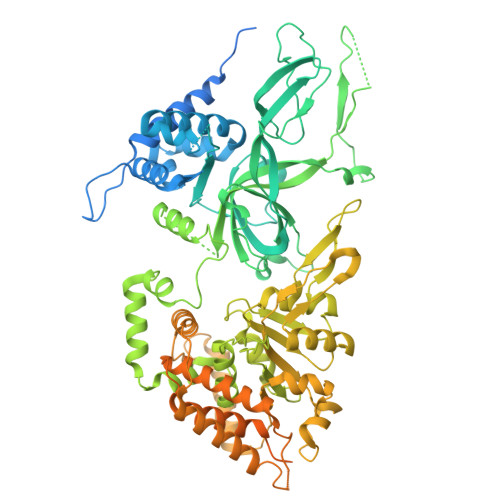

DNA replication licensing factor MCM6	E [auth 6], L [auth F]	1,017	Saccharomyces cerevisiae	Mutation(s): 0 Gene Names: MCM6, YGL201C EC: 3.6.4.12
UniProt
Find proteins for P53091 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P53091 Go to UniProtKB: P53091
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P53091
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 6
Molecule	Chains	Sequence Length	Organism	Details	Image

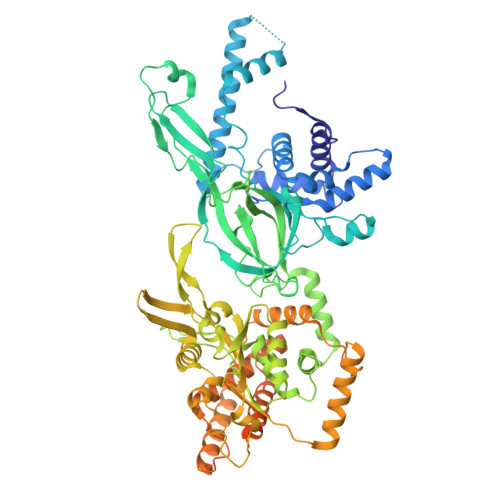

DNA replication licensing factor MCM7	F [auth 7], M [auth G]	845	Saccharomyces cerevisiae	Mutation(s): 0 Gene Names: MCM7, CDC47, YBR202W, YBR1441 EC: 3.6.4.12
UniProt
Find proteins for P38132 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P38132 Go to UniProtKB: P38132
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P38132
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 7
Molecule	Chains	Sequence Length	Organism	Details	Image

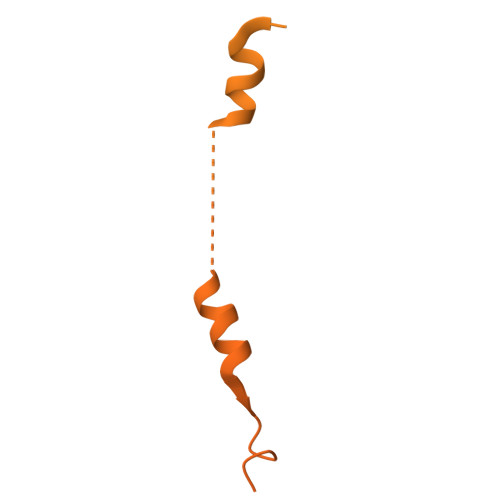

DNA replication regulator SLD3	G [auth 8], N [auth X]	668	Saccharomyces cerevisiae	Mutation(s): 0 Gene Names: SLD3, YGL113W, G2980
UniProt
Find proteins for P53135 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore P53135 Go to UniProtKB: P53135
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P53135
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

| 3D Structure

Entity ID: 8
Molecule	Chains	Sequence Length	Organism	Details	Image

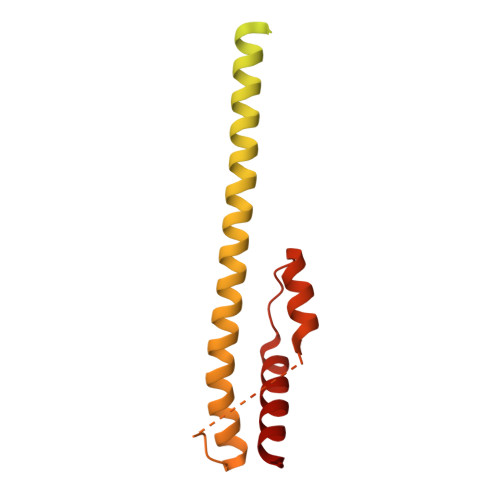

Mitochondrial morphogenesis protein SLD7	O [auth Y]	257	Saccharomyces cerevisiae	Mutation(s): 0 Gene Names: SLD7, YOR060C, YOR29-11
UniProt
Find proteins for Q08457 (Saccharomyces cerevisiae (strain ATCC 204508 / S288c)) Explore Q08457 Go to UniProtKB: Q08457
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q08457
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 2 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ADP (Subject of Investigation/LOI) Query on ADP Download:Ideal Coordinates CCD File SDF format, chain AA [auth C] SDF format, chain CA [auth E] SDF format, chain FA [auth G] SDF format, chain P [auth 2] SDF format, chain R [auth 3] SDF format, chain T [auth 5] SDF format, chain W [auth 7] SDF format, chain Y [auth B] MOL2 format, chain AA [auth C] MOL2 format, chain CA [auth E] MOL2 format, chain FA [auth G] MOL2 format, chain P [auth 2] MOL2 format, chain R [auth 3] MOL2 format, chain T [auth 5] MOL2 format, chain W [auth 7] MOL2 format, chain Y [auth B] mmCIF format, chain AA [auth C] mmCIF format, chain CA [auth E] mmCIF format, chain FA [auth G] mmCIF format, chain P [auth 2] mmCIF format, chain R [auth 3] mmCIF format, chain T [auth 5] mmCIF format, chain W [auth 7] mmCIF format, chain Y [auth B]	AA [auth C] CA [auth E] FA [auth G] P [auth 2] R [auth 3] AA [auth C], CA [auth E], FA [auth G], P [auth 2], R [auth 3], T [auth 5], W [auth 7], Y [auth B]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain AA [auth C] Focus chain CA [auth E] Focus chain FA [auth G] Focus chain P [auth 2] Focus chain R [auth 3] Focus chain T [auth 5] Focus chain W [auth 7] Focus chain Y [auth B] Interactions & Density Focus chain AA [auth C] Focus chain CA [auth E] Focus chain FA [auth G] Focus chain P [auth 2] Focus chain R [auth 3] Focus chain T [auth 5] Focus chain W [auth 7] Focus chain Y [auth B]
ZN (Subject of Investigation/LOI) Query on ZN Download:Ideal Coordinates CCD File SDF format, chain BA [auth D] SDF format, chain DA [auth E] SDF format, chain EA [auth F] SDF format, chain GA [auth G] SDF format, chain Q [auth 2] SDF format, chain S [auth 4] SDF format, chain U [auth 5] SDF format, chain V [auth 6] SDF format, chain X [auth 7] SDF format, chain Z [auth B] MOL2 format, chain BA [auth D] MOL2 format, chain DA [auth E] MOL2 format, chain EA [auth F] MOL2 format, chain GA [auth G] MOL2 format, chain Q [auth 2] MOL2 format, chain S [auth 4] MOL2 format, chain U [auth 5] MOL2 format, chain V [auth 6] MOL2 format, chain X [auth 7] MOL2 format, chain Z [auth B] mmCIF format, chain BA [auth D] mmCIF format, chain DA [auth E] mmCIF format, chain EA [auth F] mmCIF format, chain GA [auth G] mmCIF format, chain Q [auth 2] mmCIF format, chain S [auth 4] mmCIF format, chain U [auth 5] mmCIF format, chain V [auth 6] mmCIF format, chain X [auth 7] mmCIF format, chain Z [auth B]	BA [auth D] DA [auth E] EA [auth F] GA [auth G] Q [auth 2] BA [auth D], DA [auth E], EA [auth F], GA [auth G], Q [auth 2], S [auth 4], U [auth 5], V [auth 6], X [auth 7], Z [auth B]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain BA [auth D] Focus chain DA [auth E] Focus chain EA [auth F] Focus chain GA [auth G] Focus chain Q [auth 2] Focus chain S [auth 4] Focus chain U [auth 5] Focus chain V [auth 6] Focus chain X [auth 7] Focus chain Z [auth B] Interactions & Density Focus chain BA [auth D] Focus chain DA [auth E] Focus chain EA [auth F] Focus chain GA [auth G] Focus chain Q [auth 2] Focus chain S [auth 4] Focus chain U [auth 5] Focus chain V [auth 6] Focus chain X [auth 7] Focus chain Z [auth B]

Experimental Data & Validation

Experimental Data

Method: ELECTRON MICROSCOPY
Resolution: 3.60 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.21.2_5419
RECONSTRUCTION	cryoSPARC	4.6.2
RECONSTRUCTION	RELION	4.0
RECONSTRUCTION	PHENIX	1.21.2_5419

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-08-26

Deposition Author(s):

Funding Organization	Location	Grant Number
Wellcome Trust	United Kingdom	107903/Z/15/Z
Biotechnology and Biological Sciences Research Council (BBSRC)	United Kingdom	BB/T005378/1
Cancer Research UK	United Kingdom	DRCNPG-May21/100006
Wellcome Trust	United Kingdom	206175/Z/17/Z

Revision History (Full details and data files)

Version 1.0: 2026-08-26
Type: Initial release
