9TBH | pdb_00009tbh

Hepatitis A Virus in Complex with LDLR Receptor


Experimental Data Snapshot

  • Method: ELECTRON MICROSCOPY
  • Resolution: 1.70 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9TBH

This is version 1.1 of the entry. See complete history

Literature

The low-density lipoprotein receptor LDLR mediates cellular entry of nonenveloped hepatitis A virus.

Shiota, T.Zhao, Y.Shiota, I.Duyvesteyn, H.M.E.Yamaoka, M.Das, A.Kapustina, M.Shah, P.Muramatsu, M.Wang, X.Fry, E.E.Stuart, D.I.Lemon, S.M.

(2026) Proc Natl Acad Sci U S A 123: e2534261123-e2534261123

  • DOI: https://doi.org/10.1073/pnas.2534261123
  • Primary Citation Related Structures:
    9TBH, 9TBI

  • PubMed Abstract:

    Hepatitis A virus (HAV) is an unusual picornavirus with two types of extracellular virions: nonenveloped particles (nHAV) shed in feces and quasi-enveloped particles (eHAV) circulating in blood. Both enter cells by clathrin-dependent endocytic pathways merging in late endolysosomes with capsid binding to ganglioside receptors. Phosphatidylserine receptors facilitate eHAV endocytosis, but no protein receptor has been identified for nHAV. Here, we show low-density lipoprotein receptor (LDLR) is such a receptor. LDLR knockout did not alter viral attachment to cells, but restricted cellular uptake of nHAV (not eHAV). Soluble LDLR ectodomain blocked nHAV entry, as did antibody to LDLR. Recombinant LDLR-related protein-associated protein 1, a pan-LDLR family chaperone, also inhibited nHAV entry, including residual entry into knockout cells, suggesting other LDLR family members may similarly facilitate endocytosis. Reconstituting full-length LDLR expression restored nHAV entry in knockout cells, whereas LDLR mutants lacking LA repeats 4 to 7 or the EGF-like/propeller domain did not. ELISAs confirmed LDLR binds nHAV, optimally above pH7, without destabilizing the capsid. A 1.7Å resolution cryoelectron microscopy (cryo-EM) structure revealed LDLR interacts with VP1 at the fivefold vertex of the capsid. Extreme blurring of the LDLR density prevented detailed identification of LDLR interactions, and suggested binding does not follow particle symmetry, being either flexible or to multiple LDLR regions. Additional cryo-EM studies show ganglioside GD1a binds to a similar region of the capsid. Collectively, these data reveal the LDLR to be an important entry factor, shuttling nHAV from the extracellular environment to endolysosomes where it is likely released at low pH to bind gangliosides.


  • Organizational Affiliation
    • Lineberger Comprehensive Cancer Center, The University of North Carolina at Chapel Hill, Chapel Hill, NC 27599.

Macromolecule Content

  • Total Structure Weight: 82.95 kDa
  • Atom Count: 5,773
  • Modeled Residue Count: 723
  • Deposited Residue Count: 742
  • Unique protein chains: 3

Macromolecules

Find similar proteins by:|  3D Structure
Entity ID: 1
MoleculeChains  Sequence LengthOrganismDetailsImage

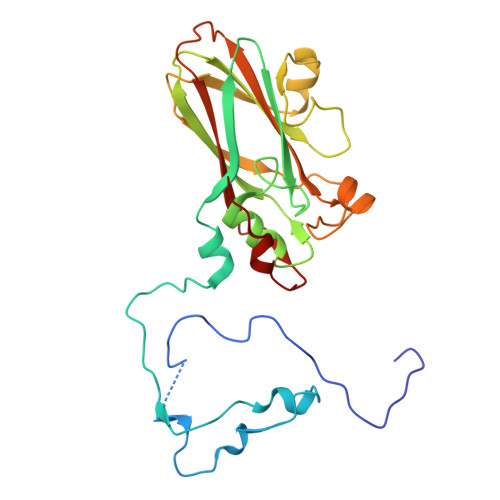

Capsid protein VP1274Human hepatitis A virusMutation(s): 0
UniProt
Find proteins for P08617 (Human hepatitis A virus genotype IB (isolate HM175))
Explore P08617
Go to UniProtKB:  P08617
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP08617
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 2
MoleculeChains  Sequence LengthOrganismDetailsImage

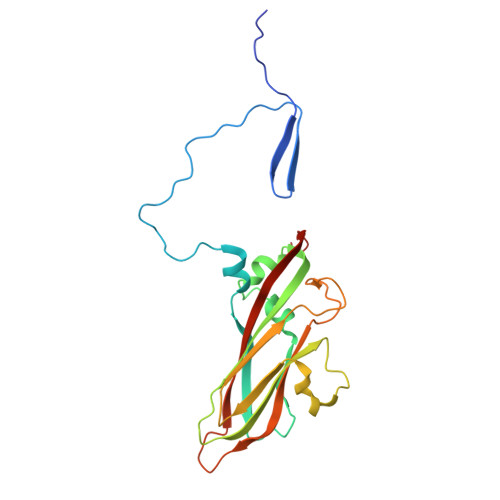

Capsid protein VP2222Human hepatitis A virusMutation(s): 0
UniProt
Find proteins for P08617 (Human hepatitis A virus genotype IB (isolate HM175))
Explore P08617
Go to UniProtKB:  P08617
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP08617
Sequence Annotations
Expand
Reference Sequence
Find similar proteins by:|  3D Structure
Entity ID: 3
MoleculeChains  Sequence LengthOrganismDetailsImage

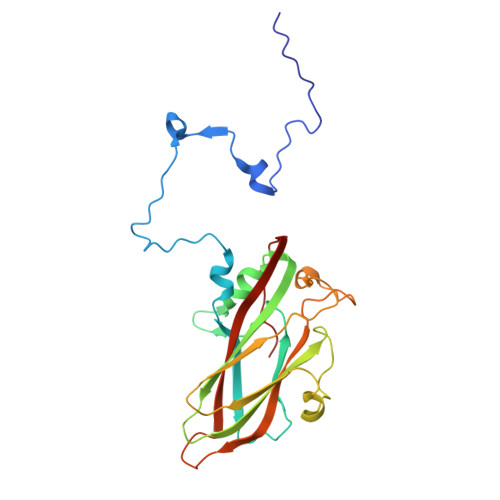

Capsid protein VP3246Human hepatitis A virusMutation(s): 0
UniProt
Find proteins for P08617 (Human hepatitis A virus genotype IB (isolate HM175))
Explore P08617
Go to UniProtKB:  P08617
Entity Groups
Sequence Clusters30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt GroupP08617
Sequence Annotations
Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

  • Method: ELECTRON MICROSCOPY
  • Resolution: 1.70 Å
  • Aggregation State: PARTICLE
  • Reconstruction Method: SINGLE PARTICLE
EM Software:
TaskSoftware PackageVersion
RECONSTRUCTIONcryoSPARC

Structure Validation

View Full Validation Report



Entry History

& Funding Information

Deposition Data


Funding OrganizationLocationGrant Number
National Institutes of Health/National Cancer Institute (NIH/NCI)United StatesR01- 438 AI103083
National Institutes of Health/National Cancer Institute (NIH/NCI)United States01-AI131685
National Institutes of Health/National Cancer Institute (NIH/NCI)United StatesR01-AI150095
Medical Research Council (MRC, United Kingdom)United KingdomMR/N00065X/1

Revision History  (Full details and data files)

  • Version 1.0: 2026-03-18
    Type: Initial release
  • Version 1.1: 2026-04-08
    Changes: Data collection, Database references
