9T7Q | pdb_00009t7q

Cryo-EM structure of EA-Ri-112-bound D3 dopamine receptor with mini-Go

• PDB DOI: https://doi.org/10.2210/pdb9T7Q/pdb
• EM Map EMD-55651: EMDB EMDataResource

• Classification: MEMBRANE PROTEIN
• Organism(s): Homo sapiens, Mus musculus
• Expression System: Spodoptera frugiperda
• Mutation(s): Yes


• Deposited: 2025-11-11 Released: 2026-09-09
• Deposition Author(s): Yardeni, E.H., Kiss, D.J., Keseru, G.M., Shalev-Benami, M.
• Funding Organization(s): European Research Council (ERC)

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.03 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

The structure of the dopamine D3 receptor bound to cariprazine reveals principles for partial agonists with designed pharmacology

Hadas Yardeni, E., Kiss, D.J., Sanchez, J., Shavit, K., Szepesi Kovacs, D., Egyed, A., Vogt, C.D., Gaitonde, S.A., Glenn, J., Canals, M., Bouvier, M., Newman, A.H., Lane, J.R., Keseru, G.M., Shalev-Benami, M.

(2026) Sci Adv 12

• DOI: https://doi.org/10.1126/sciadv.aef7411

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 5-mer - A1B1C1D1E1

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 163.47 kDa
• Atom Count: 8,628
• Modeled Residue Count: 1,131
• Deposited Residue Count: 1,492
• Unique protein chains: 5

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

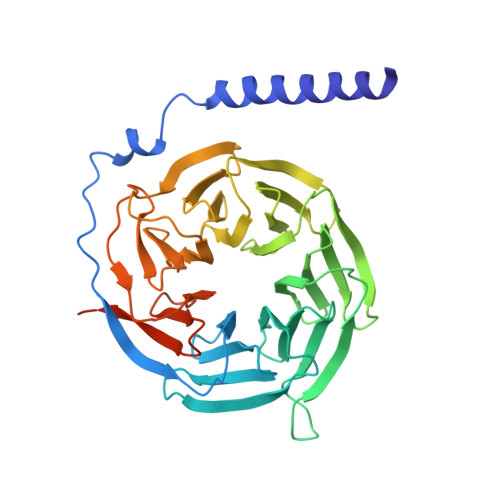

Guanine nucleotide-binding protein G(I)/G(S)/G(T) subunit beta-1	A [auth B]	366	Homo sapiens	Mutation(s): 0  Gene Names: GNB1
UniProt & NIH Common Fund Data Resources
Find proteins for P62873 (Homo sapiens) Explore P62873  Go to UniProtKB:  P62873
PHAROS:  P62873 GTEx:  ENSG00000078369

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

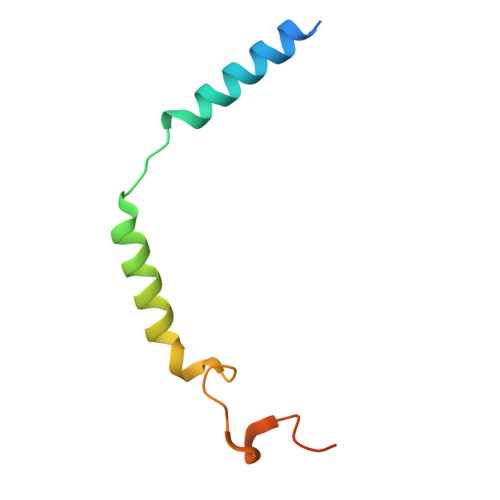

Guanine nucleotide-binding protein G(I)/G(S)/G(O) subunit gamma-2	B [auth C]	71	Homo sapiens	Mutation(s): 0  Gene Names: GNG2
UniProt & NIH Common Fund Data Resources
Find proteins for P59768 (Homo sapiens) Explore P59768  Go to UniProtKB:  P59768
PHAROS:  P59768 GTEx:  ENSG00000186469

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

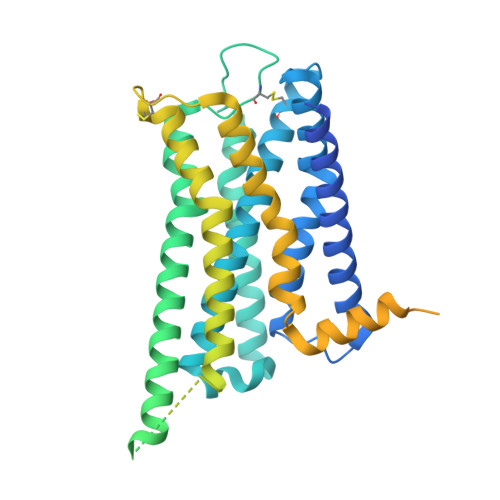

D(3) dopamine receptor,Dopamine 3 receptor	C [auth R]	573	Homo sapiens	Mutation(s): 0  Gene Names: DRD3
UniProt & NIH Common Fund Data Resources
Find proteins for P35462 (Homo sapiens) Explore P35462  Go to UniProtKB:  P35462
PHAROS:  P35462 GTEx:  ENSG00000151577

Entity ID: 4
Molecule	Chains	Sequence Length	Organism	Details	Image

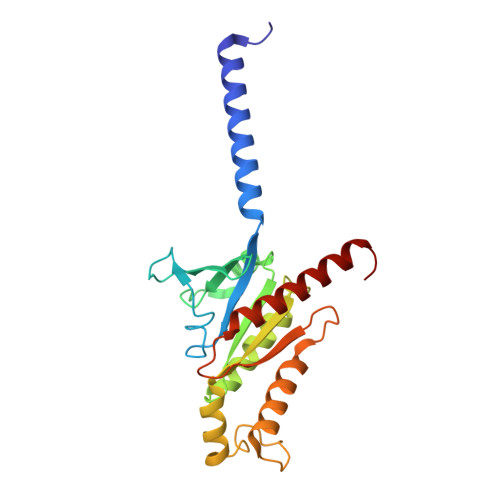

Guanine nucleotide-binding protein G(o) subunit alpha	D [auth A]	226	Homo sapiens	Mutation(s): 11  Gene Names: GNAO1 EC: 3.6.5
UniProt & NIH Common Fund Data Resources
Find proteins for P09471 (Homo sapiens) Explore P09471  Go to UniProtKB:  P09471
PHAROS:  P09471 GTEx:  ENSG00000087258

Entity ID: 5
Molecule	Chains	Sequence Length	Organism	Details	Image

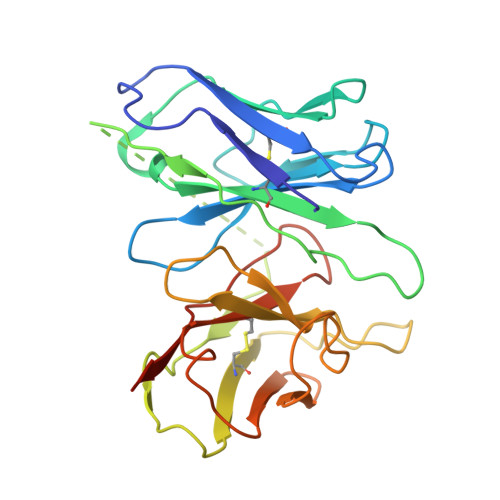

scFv16	E [auth S]	256	Mus musculus	Mutation(s): 0

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
A1JUB( Subject of Investigation/LOI)	F [auth R]	~{tert}-butyl ~{N}-[4-[2-[4-[2,3-bis(chloranyl)phenyl]piperazin-1-yl]ethyl]cyclohexyl]carbamate C23 H35 Cl2 N3 O2 LDQCWGIXZGDJNL-IYARVYRRSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.03 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487
RECONSTRUCTION	cryoSPARC

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-09-09
Deposition Author(s): Yardeni, E.H., Kiss, D.J., Keseru, G.M., Shalev-Benami, M.

---

Funding Organization	Location	Grant Number
European Research Council (ERC)	European Union	949364

Revision History

• Version 1.0: 2026-09-09
  Type: Initial release
