9T5Q | pdb_00009t5q

LRR domain Structure of LRRC8A in complex with synthetic nanobody Sb4

PDB DOI: https://doi.org/10.2210/pdb9T5Q/pdb

Classification: CYTOSOLIC PROTEIN
Organism(s): Mus musculus, synthetic construct
Expression System: Homo sapiens, Escherichia coli MC1061
Mutation(s): No

Deposited: 2025-11-05 Released: 2026-09-02
Deposition Author(s): Lehmann, E.F., Deneka, D., Stierli, F., Rutz, S., Dutzler, R.
Funding Organization(s): Swiss National Science Foundation

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.60 Å
R-Value Free:
0.229 (Depositor), 0.229 (DCC)
R-Value Work:
0.198 (Depositor), 0.198 (DCC)
R-Value Observed:
0.200 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9T5Q

This is version 1.0 of the entry. See complete history.

Literature

Structures of the volume-regulated anion channel LRRC8A/D in activating and inhibiting conditions

Lehmann, E.F., Deneka, D., Stierli, F., Rutz, S., Dutzler, R.

To be published.

Macromolecule Content

Total Structure Weight: 123.92 kDa
Atom Count: 9,261
Modeled Residue Count: 1,049
Deposited Residue Count: 1,086
Unique protein chains: 2

Macromolecules

Find similar proteins by:

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

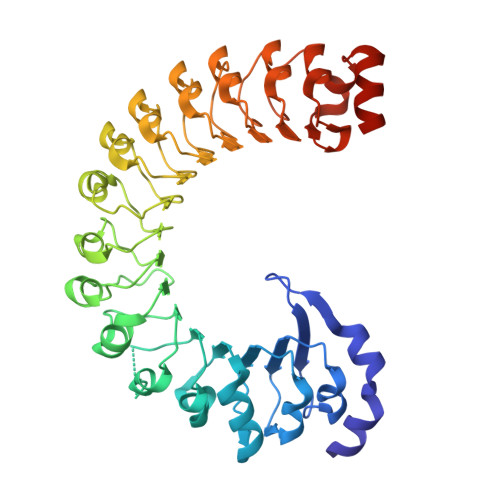

Volume-regulated anion channel subunit LRRC8A	A, C [auth B]	415	Mus musculus	Mutation(s): 0 Gene Names: Lrrc8a, Lrrc8, Swell1
UniProt & NIH Common Fund Data Resources
Find proteins for Q80WG5 (Mus musculus) Explore Q80WG5 Go to UniProtKB: Q80WG5
IMPC: MGI:2652847
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q80WG5
Sequence Annotations Expand
Reference Sequence

Find similar proteins by:

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

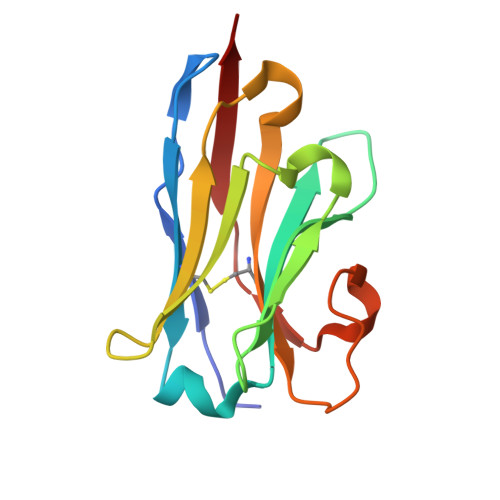

Sb4	B [auth I], D [auth C]	128	synthetic construct	Mutation(s): 0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
Sequence Annotations Expand
Reference Sequence

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.60 Å
R-Value Free: 0.229 (Depositor), 0.229 (DCC)
R-Value Work: 0.198 (Depositor), 0.198 (DCC)
R-Value Observed: 0.200 (Depositor)

Space Group: P 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 55.948	α = 111.037
b = 73.486	β = 94.349
c = 81.924	γ = 110.313

Software Package:

Software Name	Purpose
PHENIX	refinement
XDS	data reduction
XDS	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-09-02

Deposition Author(s):

Funding Organization	Location	Grant Number
Swiss National Science Foundation	Switzerland	--

Revision History (Full details and data files)

Version 1.0: 2026-09-02
Type: Initial release
