9SXD | pdb_00009sxd

Basic membrane protein D in complex with a nucleoside analog

PDB DOI: https://doi.org/10.2210/pdb9SXD/pdb

Classification: TRANSPORT PROTEIN
Organism(s): Borreliella burgdorferi JD1
Expression System: Escherichia coli BL21
Mutation(s): No

Deposited: 2025-10-09 Released: 2026-10-21
Deposition Author(s): Airenne, T.T., Brunell, J., Huhtala, M., Salminen, T.A.
Funding Organization(s): Academy of Finland, Sigrid Juselius Foundation, Other government, Other private

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.00 Å
R-Value Free:
0.243 (Depositor), 0.244 (DCC)
R-Value Work:
0.187 (Depositor), 0.188 (DCC)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Basic membrane protein D in complex with a nucleoside analog

Airenne, T.T., Brunell, J., Huhtala, M., Salminen, T.A.

To be published.

Macromolecule Content

Total Structure Weight: 71.02 kDa
Atom Count: 5,122
Modeled Residue Count: 627
Deposited Residue Count: 642
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

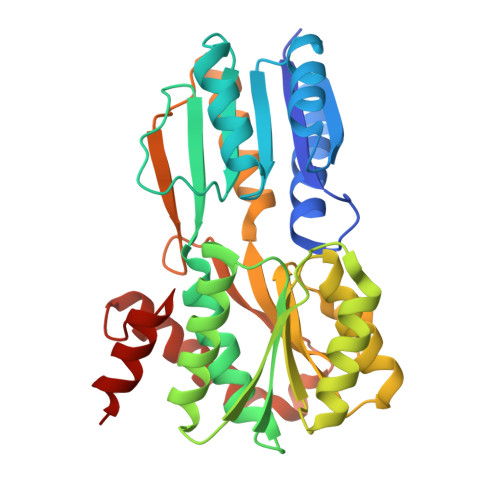

Basic membrane protein D	A, B	321	Borreliella burgdorferi JD1	Mutation(s): 0 Gene Names: bmpD, BB_0385
UniProt
Find proteins for P0CL55 (Borreliella burgdorferi (strain ATCC 35210 / DSM 4680 / CIP 102532 / B31)) Explore P0CL55 Go to UniProtKB: P0CL55
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	P0CL55
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
ZJB (Subject of Investigation/LOI) Query on ZJB Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain K [auth B] MOL2 format, chain C [auth A] MOL2 format, chain K [auth B] mmCIF format, chain C [auth A] mmCIF format, chain K [auth B]	C [auth A], K [auth B]	(2R,3R,4S,5R)-2-(3-AMINO-5-METHYL-1,4,5,6,8-PENTAAZAACENAPHTHYLEN-1(5H)-YL)-5-(HYDROXYMETHYL)TETRAHYDROFURAN-3,4-DIOL C₁₃ H₁₆ N₆ O₄ HOGVTUZUJGHKPL-HTVVRFAVSA-N		Interactions Focus chain C [auth A] Focus chain K [auth B] Interactions & Density Focus chain C [auth A] Focus chain K [auth B]
SO4 Query on SO4 Download:Ideal Coordinates CCD File SDF format, chain D [auth A] SDF format, chain M [auth B] SDF format, chain L [auth B] MOL2 format, chain D [auth A] MOL2 format, chain M [auth B] MOL2 format, chain L [auth B] mmCIF format, chain D [auth A] mmCIF format, chain M [auth B] mmCIF format, chain L [auth B]	D [auth A], L [auth B], M [auth B]	SULFATE ION O₄ S QAOWNCQODCNURD-UHFFFAOYSA-L		Interactions Focus chain D [auth A] Focus chain L [auth B] Focus chain M [auth B] Interactions & Density Focus chain D [auth A] Focus chain L [auth B] Focus chain M [auth B]
DMS Query on DMS Download:Ideal Coordinates CCD File SDF format, chain J [auth A] SDF format, chain P [auth B] SDF format, chain Q [auth B] SDF format, chain R [auth B] MOL2 format, chain J [auth A] MOL2 format, chain P [auth B] MOL2 format, chain Q [auth B] MOL2 format, chain R [auth B] mmCIF format, chain J [auth A] mmCIF format, chain P [auth B] mmCIF format, chain Q [auth B] mmCIF format, chain R [auth B]	J [auth A], P [auth B], Q [auth B], R [auth B]	DIMETHYL SULFOXIDE C₂ H₆ O S IAZDPXIOMUYVGZ-UHFFFAOYSA-N		Interactions Focus chain J [auth A] Focus chain P [auth B] Focus chain Q [auth B] Focus chain R [auth B] Interactions & Density Focus chain J [auth A] Focus chain P [auth B] Focus chain Q [auth B] Focus chain R [auth B]
CL Query on CL Download:Ideal Coordinates CCD File SDF format, chain E [auth A] SDF format, chain F [auth A] SDF format, chain O [auth B] SDF format, chain N [auth B] SDF format, chain I [auth A] SDF format, chain H [auth A] SDF format, chain G [auth A] MOL2 format, chain E [auth A] MOL2 format, chain F [auth A] MOL2 format, chain O [auth B] MOL2 format, chain N [auth B] MOL2 format, chain I [auth A] MOL2 format, chain H [auth A] MOL2 format, chain G [auth A] mmCIF format, chain E [auth A] mmCIF format, chain F [auth A] mmCIF format, chain O [auth B] mmCIF format, chain N [auth B] mmCIF format, chain I [auth A] mmCIF format, chain H [auth A] mmCIF format, chain G [auth A]	E [auth A] F [auth A] G [auth A] H [auth A] I [auth A] E [auth A], F [auth A], G [auth A], H [auth A], I [auth A], N [auth B], O [auth B]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain N [auth B] Focus chain O [auth B] Interactions & Density Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain N [auth B] Focus chain O [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 2.00 Å
R-Value Free: 0.243 (Depositor), 0.244 (DCC)
R-Value Work: 0.187 (Depositor), 0.188 (DCC)

Space Group: P 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 42.57	α = 90.797
b = 57.43	β = 108.443
c = 67.16	γ = 102.371

Software Package:

Software Name	Purpose
XDS	data reduction
XSCALE	data scaling
Aimless	data scaling
PHASER	phasing
REFMAC	refinement

Structure Validation

View Full Validation Report

Ligand Structure Quality Assessment

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-10-21

Deposition Author(s):

Funding Organization	Location	Grant Number
Academy of Finland	Finland	337531, 359346, 359346
Sigrid Juselius Foundation	Finland	--
Other government		Solutions for Health strategic profile area Abo Akademi University
Other private		Magnus Ehrnrooth Foundation
Other private		Borg Foundation
Other private		Liv och halsa
