9SWE | pdb_00009swe

Crystal structure of PpDyP in complex with manganese

PDB DOI: https://doi.org/10.2210/pdb9SWE/pdb

Classification: OXIDOREDUCTASE
Organism(s): Pseudomonas putida
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-10-06 Released: 2026-10-21
Deposition Author(s): Borges, P.T., Lorena, C., Martins, L.O.
Funding Organization(s): Foundation for Science and Technology (FCT)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.43 Å
R-Value Free:
0.253 (Depositor), 0.253 (DCC)
R-Value Work:
0.219 (Depositor), 0.221 (DCC)
R-Value Observed:
0.221 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Ligand Structure Quality Assessment

This is version 1.0 of the entry. See complete history.

Literature

Crystal structure of PpDyP in complex with manganese

Borges, P.T., Lorena, C., Martins, L.O.

To be published.

Macromolecule Content

Total Structure Weight: 128.52 kDa
Atom Count: 9,228
Modeled Residue Count: 1,140
Deposited Residue Count: 1,140
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

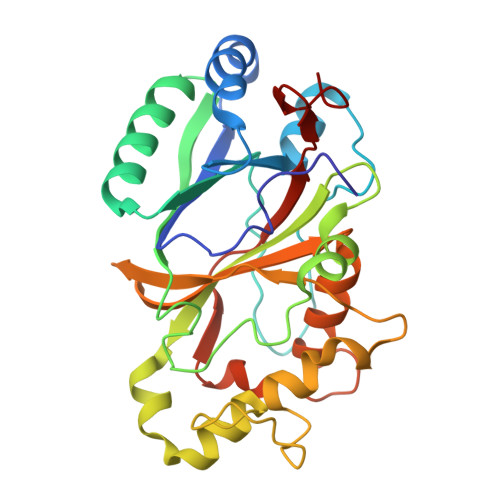

Dyp-type peroxidase family protein	A, B, C, D	285	Pseudomonas putida	Mutation(s): 0 Gene Names: PP_3248
UniProt
Find proteins for Q88HV5 (Pseudomonas putida (strain ATCC 47054 / DSM 6125 / CFBP 8728 / NCIMB 11950 / KT2440)) Explore Q88HV5 Go to UniProtKB: Q88HV5
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q88HV5
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 10 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
HEM Query on HEM Download:Ideal Coordinates CCD File SDF format, chain DA [auth D] SDF format, chain E [auth A] SDF format, chain Q [auth B] SDF format, chain W [auth C] MOL2 format, chain DA [auth D] MOL2 format, chain E [auth A] MOL2 format, chain Q [auth B] MOL2 format, chain W [auth C] mmCIF format, chain DA [auth D] mmCIF format, chain E [auth A] mmCIF format, chain Q [auth B] mmCIF format, chain W [auth C]	DA [auth D], E [auth A], Q [auth B], W [auth C]	PROTOPORPHYRIN IX CONTAINING FE C₃₄ H₃₂ Fe N₄ O₄ KABFMIBPWCXCRK-RGGAHWMASA-L		Interactions Focus chain DA [auth D] Focus chain E [auth A] Focus chain Q [auth B] Focus chain W [auth C] Interactions & Density Focus chain DA [auth D] Focus chain E [auth A] Focus chain Q [auth B] Focus chain W [auth C]
PGE Query on PGE Download:Ideal Coordinates CCD File SDF format, chain HA [auth D] SDF format, chain J [auth A] MOL2 format, chain HA [auth D] MOL2 format, chain J [auth A] mmCIF format, chain HA [auth D] mmCIF format, chain J [auth A]	HA [auth D], J [auth A]	TRIETHYLENE GLYCOL C₆ H₁₄ O₄ ZIBGPFATKBEMQZ-UHFFFAOYSA-N		Interactions Focus chain HA [auth D] Focus chain J [auth A] Interactions & Density Focus chain HA [auth D] Focus chain J [auth A]
PG0 Query on PG0 Download:Ideal Coordinates CCD File SDF format, chain Y [auth C] MOL2 format, chain Y [auth C] mmCIF format, chain Y [auth C]	Y [auth C]	2-(2-METHOXYETHOXY)ETHANOL C₅ H₁₂ O₃ SBASXUCJHJRPEV-UHFFFAOYSA-N		Interactions Focus chain Y [auth C] Interactions & Density Focus chain Y [auth C]
PEG Query on PEG Download:Ideal Coordinates CCD File SDF format, chain K [auth A] MOL2 format, chain K [auth A] mmCIF format, chain K [auth A]	K [auth A]	DI(HYDROXYETHYL)ETHER C₄ H₁₀ O₃ MTHSVFCYNBDYFN-UHFFFAOYSA-N		Interactions Focus chain K [auth A] Interactions & Density Focus chain K [auth A]
GOL Query on GOL Download:Ideal Coordinates CCD File SDF format, chain G [auth A] MOL2 format, chain G [auth A] mmCIF format, chain G [auth A]	G [auth A]	GLYCEROL C₃ H₈ O₃ PEDCQBHIVMGVHV-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Interactions & Density Focus chain G [auth A]
MN Query on MN Download:Ideal Coordinates CCD File SDF format, chain JA [auth D] SDF format, chain U [auth B] SDF format, chain P [auth A] SDF format, chain BA [auth C] MOL2 format, chain JA [auth D] MOL2 format, chain U [auth B] MOL2 format, chain P [auth A] MOL2 format, chain BA [auth C] mmCIF format, chain JA [auth D] mmCIF format, chain U [auth B] mmCIF format, chain P [auth A] mmCIF format, chain BA [auth C]	BA [auth C], JA [auth D], P [auth A], U [auth B]	MANGANESE (II) ION Mn WAEMQWOKJMHJLA-UHFFFAOYSA-N		Interactions Focus chain BA [auth C] Focus chain JA [auth D] Focus chain P [auth A] Focus chain U [auth B] Interactions & Density Focus chain BA [auth C] Focus chain JA [auth D] Focus chain P [auth A] Focus chain U [auth B]
FMT Query on FMT Download:Ideal Coordinates CCD File SDF format, chain FA [auth D] SDF format, chain GA [auth D] SDF format, chain H [auth A] SDF format, chain IA [auth D] SDF format, chain L [auth A] SDF format, chain M [auth A] SDF format, chain N [auth A] SDF format, chain O [auth A] SDF format, chain R [auth B] SDF format, chain T [auth B] SDF format, chain Z [auth C] SDF format, chain I [auth A] SDF format, chain AA [auth C] MOL2 format, chain FA [auth D] MOL2 format, chain GA [auth D] MOL2 format, chain H [auth A] MOL2 format, chain IA [auth D] MOL2 format, chain L [auth A] MOL2 format, chain M [auth A] MOL2 format, chain N [auth A] MOL2 format, chain O [auth A] MOL2 format, chain R [auth B] MOL2 format, chain T [auth B] MOL2 format, chain Z [auth C] MOL2 format, chain I [auth A] MOL2 format, chain AA [auth C] mmCIF format, chain FA [auth D] mmCIF format, chain GA [auth D] mmCIF format, chain H [auth A] mmCIF format, chain IA [auth D] mmCIF format, chain L [auth A] mmCIF format, chain M [auth A] mmCIF format, chain N [auth A] mmCIF format, chain O [auth A] mmCIF format, chain R [auth B] mmCIF format, chain T [auth B] mmCIF format, chain Z [auth C] mmCIF format, chain I [auth A] mmCIF format, chain AA [auth C]	AA [auth C] FA [auth D] GA [auth D] H [auth A] I [auth A] AA [auth C], FA [auth D], GA [auth D], H [auth A], I [auth A], IA [auth D], L [auth A], M [auth A], N [auth A], O [auth A], R [auth B], T [auth B], Z [auth C]	FORMIC ACID C H₂ O₂ BDAGIHXWWSANSR-UHFFFAOYSA-N		Interactions Focus chain AA [auth C] Focus chain FA [auth D] Focus chain GA [auth D] Focus chain H [auth A] Focus chain I [auth A] Focus chain IA [auth D] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain R [auth B] Focus chain T [auth B] Focus chain Z [auth C] Interactions & Density Focus chain AA [auth C] Focus chain FA [auth D] Focus chain GA [auth D] Focus chain H [auth A] Focus chain I [auth A] Focus chain IA [auth D] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain R [auth B] Focus chain T [auth B] Focus chain Z [auth C]
CL Query on CL Download:Ideal Coordinates CCD File SDF format, chain CA [auth C] SDF format, chain KA [auth D] MOL2 format, chain CA [auth C] MOL2 format, chain KA [auth D] mmCIF format, chain CA [auth C] mmCIF format, chain KA [auth D]	CA [auth C], KA [auth D]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain CA [auth C] Focus chain KA [auth D] Interactions & Density Focus chain CA [auth C] Focus chain KA [auth D]
OXY Query on OXY Download:Ideal Coordinates CCD File SDF format, chain EA [auth D] SDF format, chain F [auth A] SDF format, chain S [auth B] SDF format, chain X [auth C] MOL2 format, chain EA [auth D] MOL2 format, chain F [auth A] MOL2 format, chain S [auth B] MOL2 format, chain X [auth C] mmCIF format, chain EA [auth D] mmCIF format, chain F [auth A] mmCIF format, chain S [auth B] mmCIF format, chain X [auth C]	EA [auth D], F [auth A], S [auth B], X [auth C]	OXYGEN MOLECULE O₂ MYMOFIZGZYHOMD-UHFFFAOYSA-N		Interactions Focus chain EA [auth D] Focus chain F [auth A] Focus chain S [auth B] Focus chain X [auth C] Interactions & Density Focus chain EA [auth D] Focus chain F [auth A] Focus chain S [auth B] Focus chain X [auth C]
MG Query on MG Download:Ideal Coordinates CCD File SDF format, chain V [auth B] MOL2 format, chain V [auth B] mmCIF format, chain V [auth B]	V [auth B]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain V [auth B] Interactions & Density Focus chain V [auth B]
