9SUC | pdb_00009suc

High Throughput Crystallography to Combat Antibiotic Resistance - VIM2 with compound x0797

PDB DOI: https://doi.org/10.2210/pdb9SUC/pdb

Classification: ANTIMICROBIAL PROTEIN
Organism(s): Pseudomonas aeruginosa
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2025-09-27 Released: 2026-10-07
Deposition Author(s): Wang, D.Y., Brem, J., Collins, P.M., vonDelft, F., Allen, M.D., Schofield, C.J.
Funding Organization(s): Wellcome Trust

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 1.36 Å
R-Value Free:
0.157 (Depositor), 0.165 (DCC)
R-Value Work:
0.125 (Depositor), 0.142 (DCC)
R-Value Observed:
0.127 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

Validation slider image for 9SUC

This is version 1.0 of the entry. See complete history.

Literature

High Throughput Crystallography to Combat Antibiotic Resistance - VIM2 with compound x0797

Wang, D.Y., Brem, J., Collins, P.M., vonDelft, F., Allen, M.D., Schofield, C.J.

To be published.

Macromolecule Content

Total Structure Weight: 52.56 kDa
Atom Count: 4,372
Modeled Residue Count: 464
Deposited Residue Count: 484
Unique protein chains: 1

Macromolecules

Find similar proteins by:

Entity ID: 1

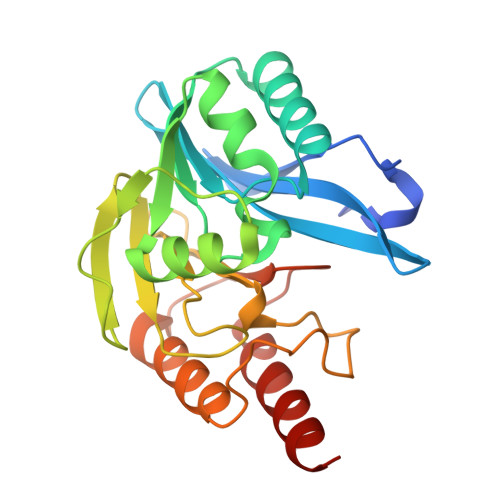

Molecule	Chains	Sequence Length	Organism	Details	Image
beta-lactamase	A, B	242	Pseudomonas aeruginosa	Mutation(s): 0 Gene Names: blaVIM-2, bla vim-2, blm, PAERUG_P19_London_7_VIM_2_05_10_01672 EC: 3.5.2.6
UniProt
Find proteins for Q9K2N0 (Pseudomonas aeruginosa) Explore Q9K2N0 Go to UniProtKB: Q9K2N0
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9K2N0
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
A1JQA( Subject of Investigation/LOI) Query on A1JQA Download:Ideal Coordinates CCD File SDF format, chain F [auth A] SDF format, chain L [auth B] SDF format, chain M [auth B] MOL2 format, chain F [auth A] MOL2 format, chain L [auth B] MOL2 format, chain M [auth B] mmCIF format, chain F [auth A] mmCIF format, chain L [auth B] mmCIF format, chain M [auth B]	F [auth A], L [auth B], M [auth B]	6-pyrrol-1-ylpyridine-2-carboxylic acid C₁₀ H₈ N₂ O₂ WSBDMSCYANSHMQ-UHFFFAOYSA-N		Interactions Focus chain F [auth A] Focus chain L [auth B] Focus chain M [auth B] Interactions & Density Focus chain F [auth A] Focus chain L [auth B] Focus chain M [auth B]
DMS Query on DMS Download:Ideal Coordinates CCD File SDF format, chain O [auth B] MOL2 format, chain O [auth B] mmCIF format, chain O [auth B]	O [auth B]	DIMETHYL SULFOXIDE C₂ H₆ O S IAZDPXIOMUYVGZ-UHFFFAOYSA-N		Interactions Focus chain O [auth B] Interactions & Density Focus chain O [auth B]
ZN Query on ZN Download:Ideal Coordinates CCD File SDF format, chain C [auth A] SDF format, chain D [auth A] SDF format, chain E [auth A] SDF format, chain I [auth B] SDF format, chain J [auth B] SDF format, chain K [auth B] MOL2 format, chain C [auth A] MOL2 format, chain D [auth A] MOL2 format, chain E [auth A] MOL2 format, chain I [auth B] MOL2 format, chain J [auth B] MOL2 format, chain K [auth B] mmCIF format, chain C [auth A] mmCIF format, chain D [auth A] mmCIF format, chain E [auth A] mmCIF format, chain I [auth B] mmCIF format, chain J [auth B] mmCIF format, chain K [auth B]	C [auth A] D [auth A] E [auth A] I [auth B] J [auth B] C [auth A], D [auth A], E [auth A], I [auth B], J [auth B], K [auth B]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B] Interactions & Density Focus chain C [auth A] Focus chain D [auth A] Focus chain E [auth A] Focus chain I [auth B] Focus chain J [auth B] Focus chain K [auth B]
FMT Query on FMT Download:Ideal Coordinates CCD File SDF format, chain G [auth A] SDF format, chain H [auth A] SDF format, chain N [auth B] MOL2 format, chain G [auth A] MOL2 format, chain H [auth A] MOL2 format, chain N [auth B] mmCIF format, chain G [auth A] mmCIF format, chain H [auth A] mmCIF format, chain N [auth B]	G [auth A], H [auth A], N [auth B]	FORMIC ACID C H₂ O₂ BDAGIHXWWSANSR-UHFFFAOYSA-N		Interactions Focus chain G [auth A] Focus chain H [auth A] Focus chain N [auth B] Interactions & Density Focus chain G [auth A] Focus chain H [auth A] Focus chain N [auth B]

Experimental Data & Validation

Experimental Data

Method: X-RAY DIFFRACTION
Resolution: 1.36 Å
R-Value Free: 0.157 (Depositor), 0.165 (DCC)
R-Value Work: 0.125 (Depositor), 0.142 (DCC)
R-Value Observed: 0.127 (Depositor)

Space Group: C 1 2 1

Unit Cell:

Length ( Å )	Angle ( ˚ )
a = 103.56	α = 90
b = 79.81	β = 130.25
c = 68.57	γ = 90

Software Package:

Software Name	Purpose
PHENIX	refinement
DIALS	data reduction
Aimless	data scaling
PHASER	phasing

Structure Validation

View Full Validation Report

View more in-depth experimental data

Entry History

& Funding Information

Deposition Data

Released Date: 2026-10-07

Deposition Author(s):

Schofield, C.J.

Funding Organization	Location	Grant Number
Wellcome Trust	United Kingdom	099141/Z/12/Z

Revision History (Full details and data files)

Version 1.0: 2026-10-07
Type: Initial release
