9SAD | pdb_00009sad

Zinc-bound [FeFe]-hydrogenase HydA1 from Chlamydomonas reinhardtii

PDB DOI: https://doi.org/10.2210/pdb9SAD/pdb

Classification: OXIDOREDUCTASE
Organism(s): Chlamydomonas reinhardtii
Expression System: Escherichia coli BL21(DE3)
Mutation(s): No

Deposited: 2025-08-07 Released: 2026-10-28
Deposition Author(s): Duan, J., Yang, Z., Hofmann, E., Happe, T.
Funding Organization(s): German Research Foundation (DFG)

Experimental Data Snapshot

Method: X-RAY DIFFRACTION
Resolution: 2.00 Å
R-Value Free:
0.248 (Depositor), 0.249 (DCC)
R-Value Work:
0.206 (Depositor), 0.206 (DCC)
R-Value Observed:
0.209 (Depositor)

Starting Model: experimental
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

A Histidine-Mediated, Pendulum-Like Proton Transport Mechanism Is Required for the High Catalytic Activity of [FeFe]-Hydrogenases

Duan, J., Yang, Z., Lampret, O., Arrigoni, F., Impel, L.V., Zheng, F., Kleinhaus, J., Apfel, U.P., Greco, C., De Gioia, L., Hofmann, E., Hemschemeier, A., Happe, T.

(2026) J Am Chem Soc

DOI: https://doi.org/10.1021/jacs.6c14410

Macromolecule Content

Total Structure Weight: 49.99 kDa
Atom Count: 3,583
Modeled Residue Count: 427
Deposited Residue Count: 452
Unique protein chains: 1

Macromolecules

Find similar proteins by:

| 3D Structure

Entity ID: 1

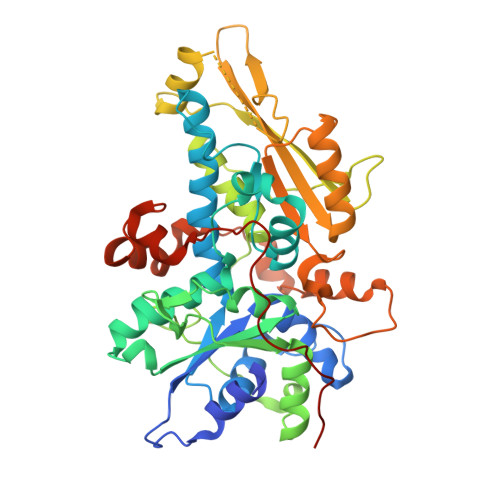

Molecule	Chains	Sequence Length	Organism	Details	Image
Fe-hydrogenase	A	452	Chlamydomonas reinhardtii	Mutation(s): 0 Gene Names: hyd1, hydA, hydA1, CHLRE_03g199800v5 EC: 1.18.99.1
UniProt
Find proteins for Q9FYU1 (Chlamydomonas reinhardtii) Explore Q9FYU1 Go to UniProtKB: Q9FYU1
Entity Groups
Sequence Clusters	30% Identity 50% Identity 70% Identity 90% Identity 95% Identity 100% Identity
UniProt Group	Q9FYU1
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 4 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
SF4 (Subject of Investigation/LOI) Query on SF4 Download:Ideal Coordinates CCD File SDF format, chain B [auth A] MOL2 format, chain B [auth A] mmCIF format, chain B [auth A]	B [auth A]	IRON/SULFUR CLUSTER Fe₄ S₄ LJBDFODJNLIPKO-UHFFFAOYSA-N		Interactions Focus chain B [auth A] Interactions & Density Focus chain B [auth A]
ZN (Subject of Investigation/LOI) Query on ZN Download:Ideal Coordinates CCD File SDF format, chain K [auth A] SDF format, chain J [auth A] SDF format, chain I [auth A] SDF format, chain H [auth A] SDF format, chain G [auth A] SDF format, chain F [auth A] SDF format, chain E [auth A] MOL2 format, chain K [auth A] MOL2 format, chain J [auth A] MOL2 format, chain I [auth A] MOL2 format, chain H [auth A] MOL2 format, chain G [auth A] MOL2 format, chain F [auth A] MOL2 format, chain E [auth A] mmCIF format, chain K [auth A] mmCIF format, chain J [auth A] mmCIF format, chain I [auth A] mmCIF format, chain H [auth A] mmCIF format, chain G [auth A] mmCIF format, chain F [auth A] mmCIF format, chain E [auth A]	E [auth A] F [auth A] G [auth A] H [auth A] I [auth A] E [auth A], F [auth A], G [auth A], H [auth A], I [auth A], J [auth A], K [auth A]	ZINC ION Zn PTFCDOFLOPIGGS-UHFFFAOYSA-N		Interactions Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A] Interactions & Density Focus chain E [auth A] Focus chain F [auth A] Focus chain G [auth A] Focus chain H [auth A] Focus chain I [auth A] Focus chain J [auth A] Focus chain K [auth A]
CL Query on CL Download:Ideal Coordinates CCD File SDF format, chain R [auth A] SDF format, chain Q [auth A] SDF format, chain P [auth A] SDF format, chain O [auth A] SDF format, chain N [auth A] SDF format, chain M [auth A] SDF format, chain L [auth A] SDF format, chain C [auth A] MOL2 format, chain R [auth A] MOL2 format, chain Q [auth A] MOL2 format, chain P [auth A] MOL2 format, chain O [auth A] MOL2 format, chain N [auth A] MOL2 format, chain M [auth A] MOL2 format, chain L [auth A] MOL2 format, chain C [auth A] mmCIF format, chain R [auth A] mmCIF format, chain Q [auth A] mmCIF format, chain P [auth A] mmCIF format, chain O [auth A] mmCIF format, chain N [auth A] mmCIF format, chain M [auth A] mmCIF format, chain L [auth A] mmCIF format, chain C [auth A]	C [auth A] L [auth A] M [auth A] N [auth A] O [auth A] C [auth A], L [auth A], M [auth A], N [auth A], O [auth A], P [auth A], Q [auth A], R [auth A]	CHLORIDE ION Cl VEXZGXHMUGYJMC-UHFFFAOYSA-M		Interactions Focus chain C [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth A] Interactions & Density Focus chain C [auth A] Focus chain L [auth A] Focus chain M [auth A] Focus chain N [auth A] Focus chain O [auth A] Focus chain P [auth A] Focus chain Q [auth A] Focus chain R [auth A]
NA Query on NA Download:Ideal Coordinates CCD File SDF format, chain D [auth A] MOL2 format, chain D [auth A] mmCIF format, chain D [auth A]	D [auth A]	SODIUM ION Na FKNQFGJONOIPTF-UHFFFAOYSA-N		Interactions Focus chain D [auth A] Interactions & Density Focus chain D [auth A]
