9RON | pdb_00009ron

Human alpha1 Na+,K+-ATPase in the Na+-bound E1 state

• PDB DOI: https://doi.org/10.2210/pdb9RON/pdb
• EM Map EMD-54125: EMDB EMDataResource

• Classification: METAL TRANSPORT
• Organism(s): Homo sapiens
• Expression System: Komagataella pastoris, Escherichia coli
• Mutation(s): No


• Deposited: 2025-06-20 Released: 2026-08-12
• Deposition Author(s): Christensen, M.E., Habeck, M., Katz, A., Fruergaard, M.U., Karlish, S.J.D., Nissen, P.
• Funding Organization(s): H2020 Marie Curie Actions of the European Commission, Lundbeckfonden, Novo Nordisk Foundation, The Carlsberg Foundation

---

Experimental Data Snapshot

• Method: ELECTRON MICROSCOPY
• Resolution: 3.41 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

Literature

Active conformations of neuronal Na+, K+-ATPase isoforms and a disease-causing mutant

Christensen, M.E., Habeck, M., Katz, A., Fruergaard, M.U., Peleg, Y., Pick, U., Karlish, S.J.D., Nissen, P.

(2026) Nat Commun

• DOI: https://doi.org/10.1038/s41467-026-75997-4

Biological Assembly 1

Global Symmetry: Asymmetric - C1
Global Stoichiometry: Hetero 3-mer - A1B1C1

Biological assembly 1 assigned by authors and generated by (software)

Biological Assembly Evidence: electron microscopy

Macromolecule Content

• Total Structure Weight: 159.51 kDa
• Atom Count: 10,272
• Modeled Residue Count: 1,306
• Deposited Residue Count: 1,418
• Unique protein chains: 3

Macromolecules

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

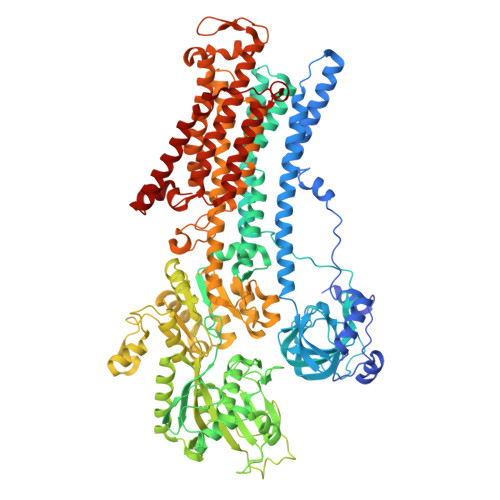

Sodium/potassium-transporting ATPase subunit alpha-1	A	1,023	Homo sapiens	Mutation(s): 0  Gene Names: ATP1A1 EC: 7.2.2.13
UniProt & NIH Common Fund Data Resources
Find proteins for P05023 (Homo sapiens) Explore P05023  Go to UniProtKB:  P05023
PHAROS:  P05023 GTEx:  ENSG00000163399

Entity ID: 2
Molecule	Chains	Sequence Length	Organism	Details	Image

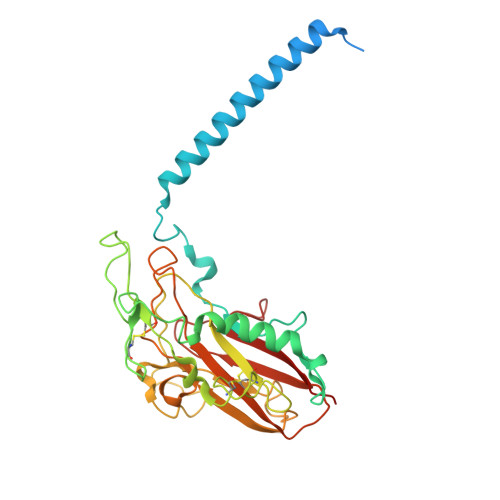

Sodium/potassium-transporting ATPase subunit beta-1	B	319	Homo sapiens	Mutation(s): 0  Gene Names: ATP1B1, ATP1B
UniProt & NIH Common Fund Data Resources
Find proteins for P05026 (Homo sapiens) Explore P05026  Go to UniProtKB:  P05026
PHAROS:  P05026 GTEx:  ENSG00000143153

Entity ID: 3
Molecule	Chains	Sequence Length	Organism	Details	Image

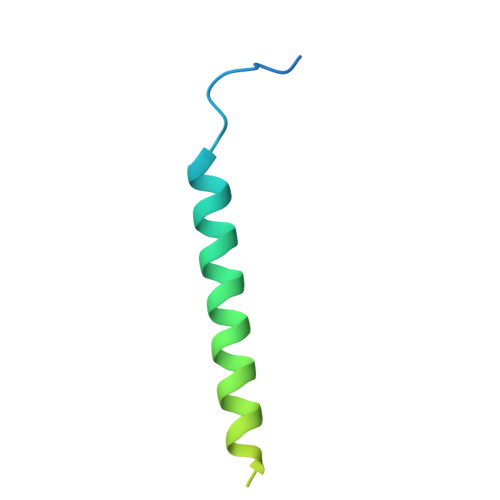

Phospholemman	C	76	Homo sapiens	Mutation(s): 0  Gene Names: FXYD1, PLM
UniProt & NIH Common Fund Data Resources
Find proteins for O00168 (Homo sapiens) Explore O00168  Go to UniProtKB:  O00168
PHAROS:  O00168 GTEx:  ENSG00000266964

Small Molecules

Ligands 1 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram
ATP (Subject of Investigation/LOI)	D [auth A]	ADENOSINE-5'-TRIPHOSPHATE C10 H16 N5 O13 P3 ZKHQWZAMYRWXGA-KQYNXXCUSA-N

Experimental Data & Validation

Experimental Data

• Method: ELECTRON MICROSCOPY
• Resolution: 3.41 Å
• Aggregation State: PARTICLE
• Reconstruction Method: SINGLE PARTICLE

EM Software:

Task	Software Package	Version
MODEL REFINEMENT	PHENIX	1.20.1_4487:
RECONSTRUCTION	cryoSPARC

Structure Validation

Entry History

& Funding Information

Deposition Data

• Released Date: 2026-08-12
Deposition Author(s): Christensen, M.E., Habeck, M., Katz, A., Fruergaard, M.U., Karlish, S.J.D., Nissen, P.

---

Funding Organization	Location	Grant Number
H2020 Marie Curie Actions of the European Commission	European Union	793086
Lundbeckfonden	Denmark	R310-2018-3713
Novo Nordisk Foundation	Denmark	NNF20OC0060483
The Carlsberg Foundation	Denmark	CF22-1535
The Carlsberg Foundation	Denmark	CF23-1394

Revision History

• Version 1.0: 2026-08-12
  Type: Initial release
