9RM5 | pdb_00009rm5

Hexameric AAV2 Rep40-ssDNA (ITR) complex in presence of ATPyS

PDB DOI: https://doi.org/10.2210/pdb9RM5/pdb
EM Map EMD-54050: EMDB EMDataResource

Classification: DNA BINDING PROTEIN
Organism(s): adeno-associated virus 2
Expression System: Escherichia coli
Mutation(s): No

Deposited: 2025-06-17 Released: 2026-02-04
Deposition Author(s): Rouse, S.L., Bubeck, D., Barritt, J.D., Xu, V., Wake, M.
Funding Organization(s): Other government, Other private

Experimental Data Snapshot

Method: ELECTRON MICROSCOPY
Resolution: 2.44 Å
Aggregation State: PARTICLE
Reconstruction Method: SINGLE PARTICLE

Starting Model: in silico
View more details

wwPDB Validation 3D Report Full Report

This is version 1.0 of the entry. See complete history.

Literature

Dynamic oligomerisation states of replicative helicase 40 coordinate during adeno-associated virus packaging

Xu, V., Barritt, J.D., Bubeck, D., Rouse, S.L.

To be published.

Macromolecule Content

Total Structure Weight: 270.81 kDa
Atom Count: 13,657
Modeled Residue Count: 1,678
Deposited Residue Count: 2,392
Unique protein chains: 1
Unique nucleic acid chains: 1

Macromolecules

Find similar proteins by:

(by identity cutoff) | 3D Structure

Entity ID: 1
Molecule	Chains	Sequence Length	Organism	Details	Image

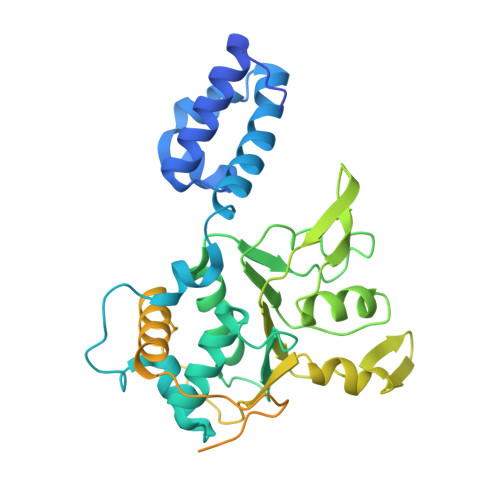

Protein Rep40	A [auth a] B [auth b] C [auth c] D [auth d] E [auth e] A [auth a], B [auth b], C [auth c], D [auth d], E [auth e], F [auth f]	397	adeno-associated virus 2	Mutation(s): 0 Gene Names: Rep40 EC: 3.6.4.12
UniProt
Find proteins for Q89269 (Adeno-associated virus 2 (isolate Srivastava/1982)) Explore Q89269 Go to UniProtKB: Q89269
Entity Groups
Sequence Clusters	30% Identity50% Identity70% Identity90% Identity95% Identity100% Identity
UniProt Group	Q89269
Sequence Annotations Expand
Reference Sequence

Find similar nucleic acids by: Sequence | 3D Structure

Entity ID: 2
Molecule	Chains	Length	Organism	Image

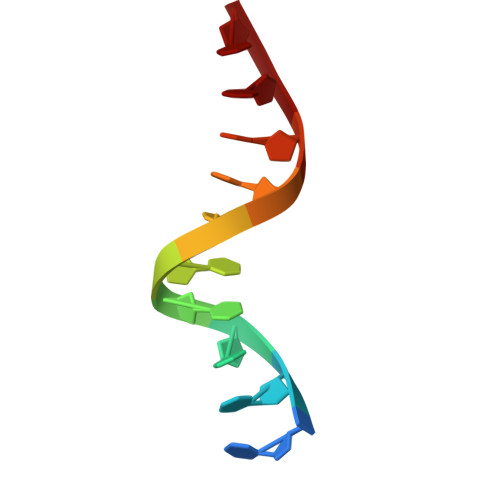

DNA	G [auth s]	10	adeno-associated virus 2
Sequence Annotations Expand
Reference Sequence

Small Molecules

Ligands 3 Unique
ID	Chains	Name / Formula / InChI Key	2D Diagram	3D Interactions
AGS (Subject of Investigation/LOI) Query on AGS Download Ideal Coordinates CCD File SDF format, chain H [auth a] SDF format, chain J [auth b] SDF format, chain L [auth c] SDF format, chain N [auth d] MOL2 format, chain H [auth a] MOL2 format, chain J [auth b] MOL2 format, chain L [auth c] MOL2 format, chain N [auth d] mmCIF format, chain H [auth a] mmCIF format, chain J [auth b] mmCIF format, chain L [auth c] mmCIF format, chain N [auth d]	H [auth a], J [auth b], L [auth c], N [auth d]	PHOSPHOTHIOPHOSPHORIC ACID-ADENYLATE ESTER C₁₀ H₁₆ N₅ O₁₂ P₃ S NLTUCYMLOPLUHL-KQYNXXCUSA-N		Interactions Focus chain H [auth a] Focus chain J [auth b] Focus chain L [auth c] Focus chain N [auth d] Interactions & Density Focus chain H [auth a] Focus chain J [auth b] Focus chain L [auth c] Focus chain N [auth d]
ADP (Subject of Investigation/LOI) Query on ADP Download Ideal Coordinates CCD File SDF format, chain R [auth f] SDF format, chain P [auth e] MOL2 format, chain R [auth f] MOL2 format, chain P [auth e] mmCIF format, chain R [auth f] mmCIF format, chain P [auth e]	P [auth e], R [auth f]	ADENOSINE-5'-DIPHOSPHATE C₁₀ H₁₅ N₅ O₁₀ P₂ XTWYTFMLZFPYCI-KQYNXXCUSA-N		Interactions Focus chain P [auth e] Focus chain R [auth f] Interactions & Density Focus chain P [auth e] Focus chain R [auth f]
MG (Subject of Investigation/LOI) Query on MG Download Ideal Coordinates CCD File SDF format, chain I [auth a] SDF format, chain K [auth b] SDF format, chain M [auth c] SDF format, chain O [auth d] SDF format, chain Q [auth e] MOL2 format, chain I [auth a] MOL2 format, chain K [auth b] MOL2 format, chain M [auth c] MOL2 format, chain O [auth d] MOL2 format, chain Q [auth e] mmCIF format, chain I [auth a] mmCIF format, chain K [auth b] mmCIF format, chain M [auth c] mmCIF format, chain O [auth d] mmCIF format, chain Q [auth e]	I [auth a], K [auth b], M [auth c], O [auth d], Q [auth e]	MAGNESIUM ION Mg JLVVSXFLKOJNIY-UHFFFAOYSA-N		Interactions Focus chain I [auth a] Focus chain K [auth b] Focus chain M [auth c] Focus chain O [auth d] Focus chain Q [auth e] Interactions & Density Focus chain I [auth a] Focus chain K [auth b] Focus chain M [auth c] Focus chain O [auth d] Focus chain Q [auth e]
